IPX1 vs IPX2 vs IPX3 vs IPX4: Waterproof Ratings and Test Equipment Explained
Learn the difference between IPX1, IPX2, IPX3, and IPX4 waterproof ratings. Discover IPX1 IPX2 Water Drip Test Chamber, IPX3 IPX4 waterproof rain spray test nozzle, and IPX34 waterproof test chamber.
IPX1 vs IPX2 vs IPX3 vs IPX4: Water Resistance Ratings and Test Equipment Explained
When selecting waterproof electronic products, outdoor lighting, smart devices, or testing equipment, you may often see ratings such as IPX1, IPX2, IPX3, and IPX4. These ratings describe how well a product enclosure can resist water ingress under specific test conditions.
For manufacturers, laboratories, and quality control teams, understanding these ratings is not only important for product design, but also for choosing the right waterproof testing equipment, such as an IPX1 IPX2 water drip test chamber, an IPX3 IPX4 waterproof rain spray test nozzle, or an IPX34 waterproof test chamber.
In this article, we explain the differences between IPX1, IPX2, IPX3, and IPX4, their typical applications, and the equipment used to perform these waterproof tests.
What Does IPX Mean?
The IP rating system is based on the international IEC 60529 standard. “IP” stands for Ingress Protection, which indicates how well an enclosure protects internal components against dust, solid objects, and water.
A complete IP rating usually has two digits:
- The first digit refers to protection against dust and solid particles.
- The second digit refers to protection against water.
For example, in IP54, “5” indicates dust protection and “4” indicates water protection.
In ratings such as IPX1, IPX2, IPX3, and IPX4, the letter X means that the dust protection level is not specified or not tested. The number after X indicates the water resistance level.
Quick Comparison of IPX1, IPX2, IPX3, and IPX4
Rating | Water Protection Level | Simple Meaning | Common Test Equipment |
|---|---|---|---|
IPX1 | Protection against vertically falling water drops | Drip-proof from above | IPX1 IPX2 Water Drip Test Chamber |
IPX2 | Protection against dripping water when tilted up to 15° | Drip-proof when slightly tilted | IPX1 IPX2 Water Drip Test Chamber |
IPX3 | Protection against spraying water up to 60° from vertical | Resistant to angled water spray | IPX3 IPX4 waterproof rain spray test nozzle |
IPX4 | Protection against splashing water from any direction | Resistant to water splashes | IPX34 WATERPROOF TEST chamber |
In simple terms:
IPX1 and IPX2 are drip water tests, while IPX3 and IPX4 are spray and splash water tests.
What Is IPX1?
IPX1 means the product is protected against vertically falling water drops. This is the most basic water resistance level.
During an IPX1 test, water drops fall vertically onto the product enclosure. The purpose is to check whether water can enter the product and affect normal operation or safety.
Typical IPX1 Applications
IPX1 is suitable for products used in dry or protected indoor environments, such as:
- Indoor electronic devices
- Small household appliances
- Control panels
- Sensors installed away from direct water exposure
- Components with minimal drip water risk
IPX1 Test Equipment
An IPX1 IPX2 Water Drip Test Chamber is commonly used for IPX1 testing. This type of test chamber is designed to simulate controlled dripping water conditions according to standard test requirements.
For manufacturers, using a professional IPX1 IPX2 drip test chamber helps improve testing accuracy, repeatability, and production quality control.
What Is IPX2?
IPX2 provides protection against dripping water when the product is tilted up to 15 degrees.
Compared with IPX1, IPX2 offers slightly better protection because the product can still resist dripping water even when it is not in a perfectly vertical position.
IPX1 vs IPX2
Rating | Main Difference |
|---|---|
IPX1 | Protects against vertical dripping water only |
IPX2 | Protects against dripping water when the product is tilted up to 15° |
IPX2 is useful for products that may be installed or used at a slight angle.
Typical IPX2 Applications
IPX2 is commonly used for:
- Indoor appliances
- Wall-mounted electronic devices
- Small electrical products
- Industrial control units in protected environments
- Products with possible exposure to light dripping water
IPX2 Test Equipment
The same IPX1 IPX2 Water Drip Test Chamber can usually be used for both IPX1 and IPX2 testing. For IPX2, the test sample is placed at different tilted positions to verify its resistance to dripping water from specific angles.
If your company provides waterproof testing solutions, this equipment can be described as:
IPX1 IPX2 Water Drip Test Chamber for IEC 60529 drip water testing.
This phrase is useful for SEO because it combines the rating, equipment name, and test standard.
What Is IPX3?
IPX3 means the product is protected against spraying water at an angle of up to 60 degrees from vertical.
Unlike IPX1 and IPX2, which focus on dripping water, IPX3 testing evaluates whether a product can resist angled water spray.
IPX2 vs IPX3
Rating | Water Exposure Type |
|---|---|
IPX2 | Dripping water |
IPX3 | Spraying water |
This makes IPX3 more suitable for products that may be exposed to light rain, spray, or outdoor moisture.
Typical IPX3 Applications
IPX3 is often used for:
- Outdoor lighting under a roof or canopy
- Balcony equipment
- Garden electrical products
- Outdoor sensors
- Smart devices installed in semi-outdoor areas
- Electrical enclosures exposed to light rain
IPX3 Test Equipment
For IPX3 testing, manufacturers may use an oscillating tube system or an IPX3 IPX4 waterproof rain spray test nozzle. The test nozzle is designed to simulate controlled water spray at specific angles.
An IPX3 IPX4 waterproof rain spray test nozzle is especially suitable for testing larger products or samples that cannot easily be placed inside a standard chamber.
This equipment is widely used in:
- Product development laboratories
- Quality inspection departments
- Third-party testing labs
- Waterproof rating certification testing
- Electrical and electronic product manufacturers
What Is IPX4?
IPX4 means the product is protected against water splashing from any direction.
Among IPX1 to IPX4, IPX4 is the most practical rating for many consumer products because it covers everyday water splash situations.
IPX3 vs IPX4
Rating | Protection Level |
|---|---|
IPX3 | Protection against spraying water at limited angles |
IPX4 | Protection against splashing water from any direction |
The key difference is that IPX4 provides broader protection. Water may splash onto the product from different directions, and the enclosure should still prevent harmful water ingress.
Typical IPX4 Applications
IPX4 is commonly used for:
- Bluetooth speakers
- Sports headphones
- Bathroom accessories
- Kitchen appliances
- Outdoor portable devices
- Smart home products
- Garden lighting
- Fitness and wearable devices
- Electrical enclosures used in damp environments
For daily-use electronic products, IPX4 is often considered a reliable basic waterproof rating.
IPX4 Test Equipment
IPX4 testing can be performed using an oscillating tube system, a spray nozzle, or an IPX34 WATERPROOF TEST chamber.
An IPX34 WATERPROOF TEST chamber is designed for both IPX3 and IPX4 waterproof tests. It can simulate water spray and splash conditions in a controlled testing environment.
For manufacturers that need to test products regularly, an IPX34 WATERPROOF TEST chamber can help ensure stable test performance, improve inspection efficiency, and support compliance with waterproof rating requirements.
IPX1 IPX2 Water Drip Test Chamber: What Is It Used For?
An IPX1 IPX2 Water Drip Test Chamber is a professional waterproof testing machine used to evaluate whether a product can resist dripping water.
It is mainly used for:
- IPX1 vertical drip water testing
- IPX2 tilted drip water testing
- Product waterproof verification
- Quality control before shipment
- R&D testing for electronic and electrical products
- Laboratory testing according to IEC 60529
Key Features of an IPX1 IPX2 Water Drip Test Chamber
Although different manufacturers may have different designs, a typical IPX1 IPX2 drip test chamber may include:
- Controlled water dripping system
- Adjustable test sample platform
- Rotating table or tilting structure
- Water flow control
- Test time setting
- Chamber body with water collection system
- User-friendly control panel
This equipment is ideal for manufacturers that need repeatable and standardized drip water tests.
IPX3 IPX4 Waterproof Rain Spray Test Nozzle: What Is It Used For?
An IPX3 IPX4 waterproof rain spray test nozzle is used to simulate water spray conditions for IPX3 and IPX4 testing.
It is often selected when:
- The product is too large for a standard test chamber
- Flexible manual or semi-automatic spray testing is required
- The test needs to simulate angled spray or splash water
- The manufacturer wants a cost-effective IPX3/IPX4 testing solution
Advantages of IPX3 IPX4 Rain Spray Test Nozzle
The IPX3 IPX4 waterproof rain spray test nozzle is commonly used because it is:
- Flexible for different product sizes
- Suitable for IPX3 and IPX4 test conditions
- Easier to operate than large chamber systems
- Useful for laboratories and production inspection
- Suitable for electrical enclosures, lighting products, and outdoor devices
For companies testing a wide range of products, this type of rain spray test nozzle is a practical waterproof testing tool.

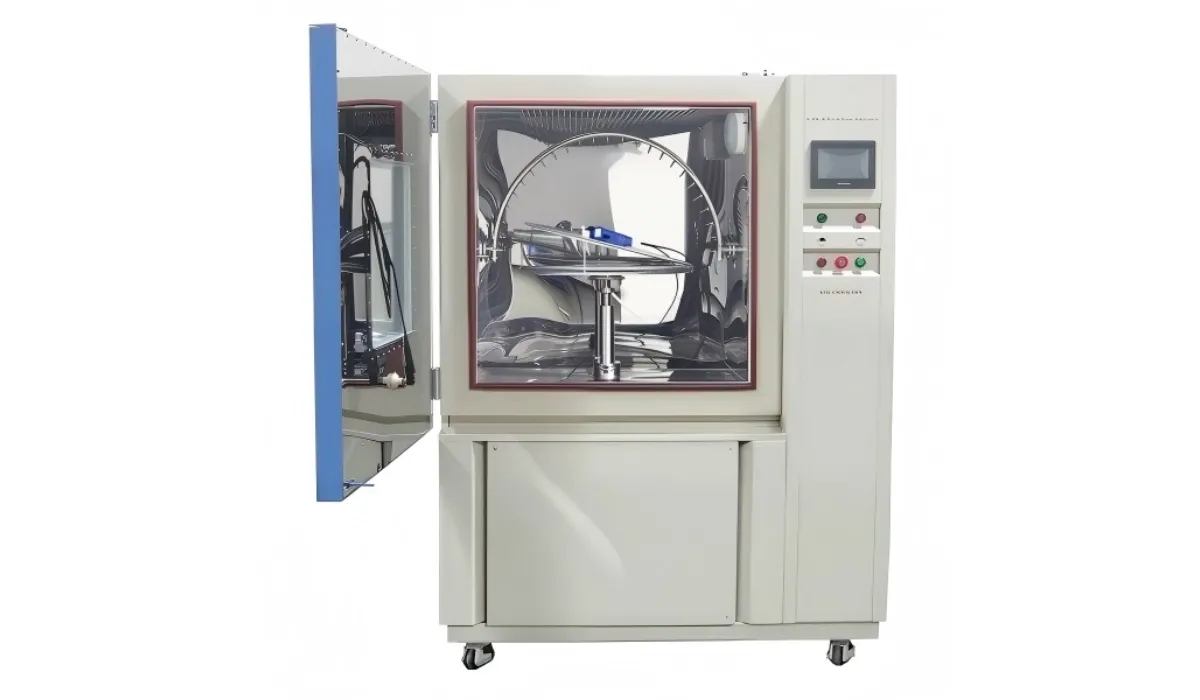

IPX34 WATERPROOF TEST Chamber: A Combined Solution for IPX3 and IPX4 Testing
An IPX34 WATERPROOF TEST chamber is designed to perform both IPX3 and IPX4 waterproof tests in one machine.
It is suitable for products that need to be tested against:
- Spraying water
- Splashing water
- Light rain simulation
- Angled water exposure
- Multi-directional water splash conditions
Why Choose an IPX34 WATERPROOF TEST Chamber?
Compared with simple manual spray testing, an IPX34 WATERPROOF TEST chamber offers better control and repeatability.
It is commonly used by:
- Electronic product manufacturers
- Lighting manufacturers
- Automotive component suppliers
- Smart home device manufacturers
- Outdoor equipment brands
- Testing laboratories
- Quality inspection centers
For export manufacturers, using a reliable IPX34 waterproof test chamber can help verify product performance before shipment and reduce quality risks in overseas markets.
How to Choose the Right Waterproof Test Equipment
Choosing the correct waterproof test equipment depends on the target IP rating and product size.
Target Rating | Recommended Equipment |
|---|---|
IPX1 | IPX1 IPX2 Water Drip Test Chamber |
IPX2 | IPX1 IPX2 Water Drip Test Chamber |
IPX3 | IPX3 IPX4 waterproof rain spray test nozzle or IPX34 WATERPROOF TEST chamber |
IPX4 | IPX3 IPX4 waterproof rain spray test nozzle or IPX34 WATERPROOF TEST chamber |
If your product only needs drip water testing, an IPX1 IPX2 Water Drip Test Chamber is usually enough.
If your product needs spray or splash water testing, an IPX3 IPX4 waterproof rain spray test nozzle or IPX34 WATERPROOF TEST chamber is more suitable.
If you require comprehensive waterproof testing solutions, we also supply IPX1–IPX4 waterproof test chamber and IPX1–IPX6 waterproof test equipment.
For manufacturers testing multiple product models, a combined waterproof test chamber can be a more efficient long-term solution.
Is IPX4 Fully Waterproof?
No. IPX4 is splash-resistant, but it is not fully waterproof.
An IPX4-rated product can resist splashing water from different directions, but it should not be:
- Submerged in water
- Washed with high-pressure water jets
- Used underwater
- Exposed to heavy rain for long periods
- Cleaned with strong chemical liquids
If a product needs protection against water jets, IPX5 or IPX6 may be required. If it needs protection against immersion, IPX7 or IPX8 should be considered.
Final Summary: IPX1, IPX2, IPX3, and IPX4
The main difference between IPX1, IPX2, IPX3, and IPX4 is the direction and intensity of water exposure.
- IPX1 protects against vertically falling water drops.
- IPX2 protects against dripping water when the product is tilted up to 15°.
- IPX3 protects against spraying water up to 60° from vertical.
- IPX4 protects against splashing water from any direction.
For waterproof testing equipment:
- Use an IPX1 IPX2 Water Drip Test Chamber for IPX1 and IPX2 drip water testing.
- Use an IPX3 IPX4 waterproof rain spray test nozzle for IPX3 and IPX4 spray testing.
- Use an IPX34 WATERPROOF TEST chamber for combined IPX3 and IPX4 waterproof testing.
For manufacturers and exporters, choosing the right waterproof test equipment helps improve product reliability, meet customer requirements, and support international market compliance.
