IPX1 IPX2 Waterproof Test Chamber Rain Test Equipment
The vertical column type IPX12 rain test device is a professional waterproof testing equipment designed in full compliance with IEC 60529 standard. It is specially used to carry out IPX1 and IPX2 waterproof tests, supporting vertical dripping and 15° inclined dripping tests. With a stable column structure, it is easy to adjust the height and position, suitable for testing various electronic products, lamps, enclosures and components, and is widely used in laboratories and quality inspection rooms.
Environmental Chamber Ipx12 Drip Rain Waterproof Test Equipment
Product Description Appliance:
The main function of this equipment is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. After the test, through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.
Features:
1, IPX12 Waterproof test equipment is applied for workshops,labs.,etc,to proceed with waterproof test of IPX1/IPX2.

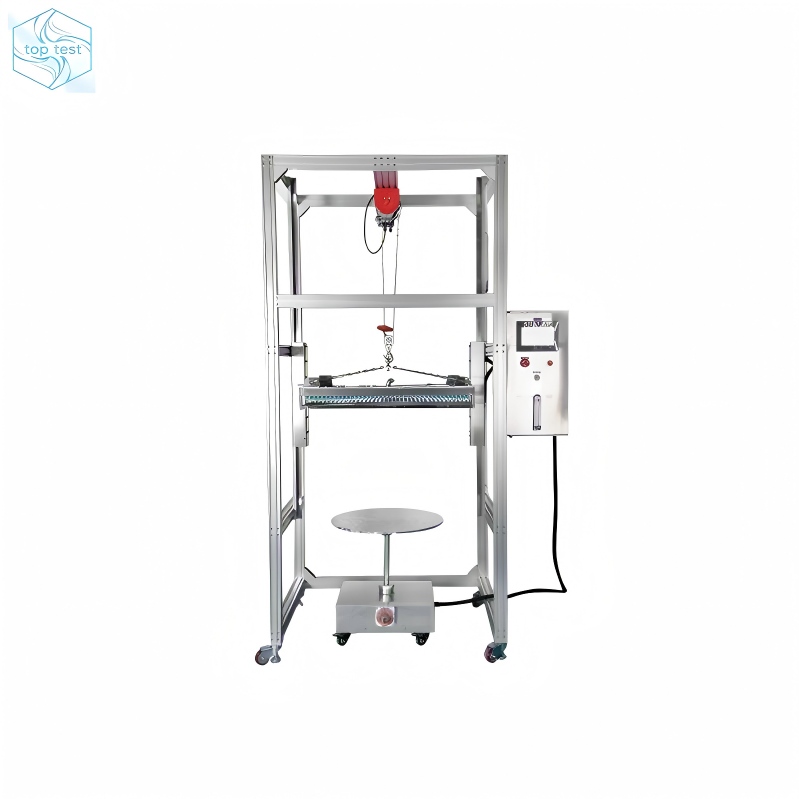

2, Column stand structure,4 stand columns can settled on the floor,chamber run stable,convenience for packaging and shipping,save time for site installation.

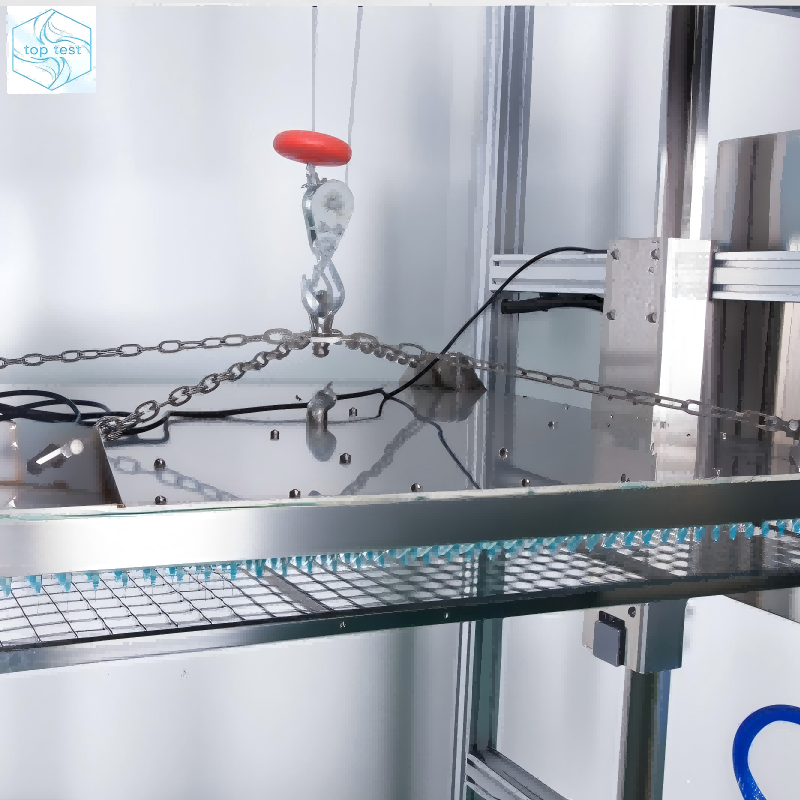

3, Rain drop plate lifting: used high grade electronic hoist to control the rain drop plate to lifting gently.
4, Safety:below needle have stainless steel griding shield, protect the operators' head not to touch the needle.
5, Automatic lifting rain drop plate,nozzle at the highest of the test product 200mm will autostop(detection via auto electronic switch).
6, Provided with compressed air drying function,when testing is over will exclude the excess moisture,avoid water scaling blocking the pinhole.(User offer the gas source)
7, Rotary table used stepping motor,speed can set on touch screen controller,reached IPX1 rotate standard requirement:1r/min;auto-complete IPX2 testing requirement:4 sites rain drop 2.5 min.
8, Diltration measure:High precision filter,can filtration the impurity from tap water.Filter element can periodic replacement.
9, Add"remote control"function,user can set parameter: start,stop,clear data etc…on the cellphone and computer.(Need download the relevant software)
Material Of Chamber:
1,Material of the external test chamber: made of high quality aluminium alloy,sample turntable made of #304 stainless steel insure not corrosion for long-term use.
2,Water tank made of high corrosion stainless steel;nozzle contact position use brass cone design easy to assemble the water spray needle.
3,Turntable: Made of SUS304# stainless steel.
4,Control System:7 inch touch screen controller+Panasonic PLC
Product Parameters
Model | TT-IPX12-800 | TT-IPX12-1000 |
Drop of rain area | 800*800 mm | 1000*1000 mm |
External chamber size | 1200*1200*2400 | 1250*1250*2400 |
Dripping aperture | ¢0.4 mm | |
Turntable diameter | ¢500 mm | ¢600 mm |
Drip hole diameter | 20*20 mm | |
High of turntable | 500 mm | |
Rain fall | 1-5 mm/min(±0.5 mm/min) | |
Flow adjustable way | Manual setting | |
Drop of rain lifting height | 1000-1800 mm adjustable | |
Turntable lifting range | Fixed | |
Turntable adjustable incline | 0°or 15° | |
Turntable speed | 1 r/min | |
Turntable bearing | 50 KG | |
Testing time | 0-999 min | |
Protective device | Leakage,water shortage,short circuit | |
Power | 220 V/1.0 KW | |
