IPX1 IPX2 IPX3 IPX4 Waterproof Test Chamber For Electronics
The main function of IPX1/IPX2/IPX3/IPX4 waterproof test chamber is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. After the test, through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.

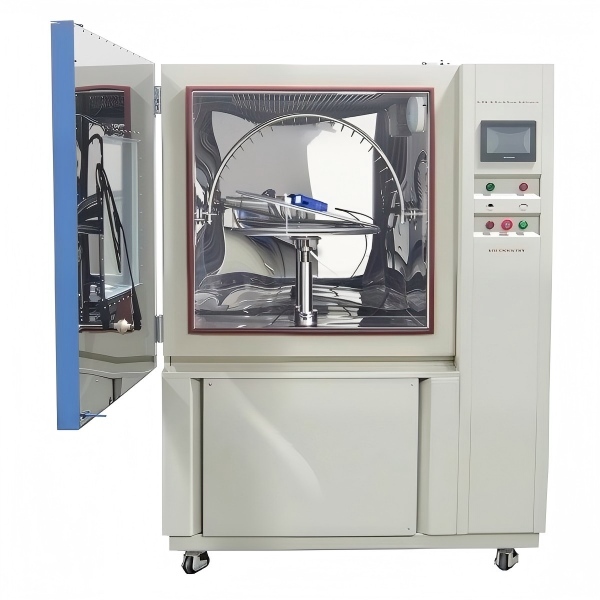

IPX1-4 Combined Waterproof Rain Test Chamber IEC 60529
Our integrated IPX1-4 rain test chamber is specially designed for waterproof performance testing of electronic and electrical products, outdoor equipment, auto parts, lamps and other products, fully compliant with international standard IEC 60529. Top Test waterproof ingress protection test chamber integrates vertical dripping test (IPX1/IPX2) and oscillating tube spray test (IPX3/IPX4) in one machine, with stable performance, simple operation, wide application range and full customization support. All core technical parameters are listed in the standardized tables below for quick inquiry and comparison.
Core Product Advantages
- All-in-one integrated design: One machine completes IPX1/2/3/4 four-level waterproof tests, no need to replace multiple equipment, saves laboratory space and testing cost
- Full SUS304 stainless steel structure: Inner chamber, water circuit, test components all use anti-rust, corrosion-resistant stainless steel, long service life, easy to clean and maintain
- Intelligent precise control: Adjustable test time, swing speed, turntable rotation, rainfall intensity, full parameter digital control, test data stable and repeatable
- Multi-scene universal turntable: Lifting, rotation, 0°/15° tilt adjustable, large load capacity, suitable for samples of different sizes and weights
- Complete safety protection: Equipped with water shortage alarm, leakage protection, overload protection, short circuit protection, to ensure long-term safe and stable operation
- Flexible customization service: Inner chamber size, turntable parameters, swing pipe radius, control system all support non-standard customization to meet special test requirements
Standard Test Scope & Applicable Standards
Applicable Test Grades
- IPX1: Vertical dripping test, no harmful effect under vertical dripping water
- IPX2: 15° inclined dripping test, sample tilted 15° from vertical, no harmful effect under dripping water
- IPX3: Oscillating tube rain spray test, water splashing from all directions to the sample, no harmful effect
- IPX4: Oscillating tube omni directional splash test, water splashing from any direction to the sample, no harmful effect
Compliant International Standards
- IEC 60529:1989+A1:1999 Degrees of protection provided by enclosures (IP Code)
- GB/T 4208-2017 (Chinese national standard, synchronous with international standard)
- ISO 20653, automotive electronic equipment waterproof test specifications
Typical Application Industries
Outdoor lamps and lanterns, new energy charging piles, household and commercial electrical appliances, automotive electronics and parts, security monitoring equipment, communication terminal equipment, electrical control boxes, outdoor precision instruments and other products that need waterproof performance verification.
Chamber Dimensions
| | |
|---|
| | Customizable size available |
Internal Chamber Dimensions | | Standard inner test space |
Overall External Dimensions | | Including control cabinet and water tank |

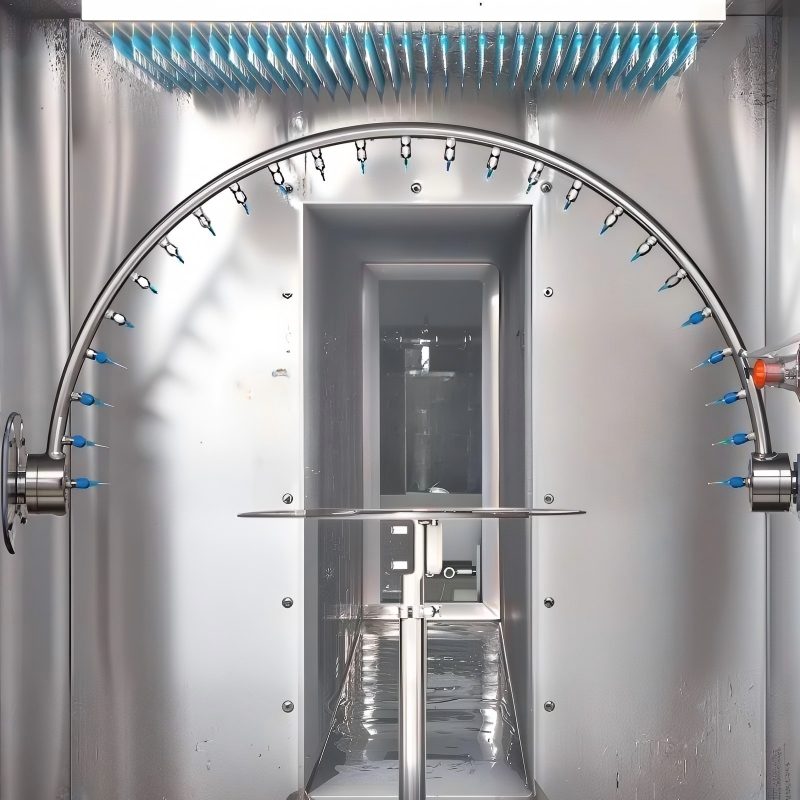

Oscillating Spray Pipe System Parameters
| | |
|---|
| | Customizable radius available |
| IPX3: 1.1 L/min; IPX4: 1.8 L/min | Fully meets standard test requirements |
| | Uniform and stable spray effect |
| | Uniform full coverage distribution |
Oscillating Pipe Inner Diameter | | Stable water pressure and flow |
Oscillation Angle & Speed | 120° reciprocating: 4s per cycle; 360° reciprocating: 12s per cycle | Precision digital control, customizable parameters |
Oscillating Pipe Material | | Anti-rust, corrosion resistant, durable |
Test Turntable Parameters
| | |
|---|
| | Customizable size available |
| | Special for IPX2 inclined dripping test |
| | Stepless adjustable, precise control |
| | Adapt to samples of different heights |
| | Stable bearing, no deformation during operation |
Vertical Dripping Test System Parameters
| | |
|---|
Dripping Plate Effective Area | | Consistent with effective drip area |
Adjustable Rainfall Intensity | | Manual adjustable, meets standard requirements |
| | Uniform vertical dripping effect |
| | Full coverage uniform distribution |
| | Anti-rust, not easy to block, easy to maintain |
Control System & Safety Protection Parameters
| | |
|---|
| | Digital setting, automatic stop after timing |
Complete Safety Protection | Leakage protection, water shortage alarm, short circuit protection, overload protection | 24h safe operation guarantee |
| | Single phase universal commercial voltage |
| | Low power consumption, energy saving and stable |
Standard Compliance & Test Capacity
| | |
|---|
| | Completes IPX1, IPX2, IPX3, IPX4 waterproof tests |
Customization Service & After-Sales Guarantee (Added Trust-Boosting Module)
- Non-standard customization support: inner chamber size, turntable load, swing pipe parameters, control system, appearance color all can be customized
- Complete after-sales service: global technical guidance, equipment installation and commissioning, operator training, 12 months official warranty, lifelong maintenance support
- Standard delivery: complete with test accessories, operation manual, standard certificate, packing and transportation conform to export standard
If you have special test requirements or customized parameter needs, please contact us directly for professional solutions and accurate quotation.
