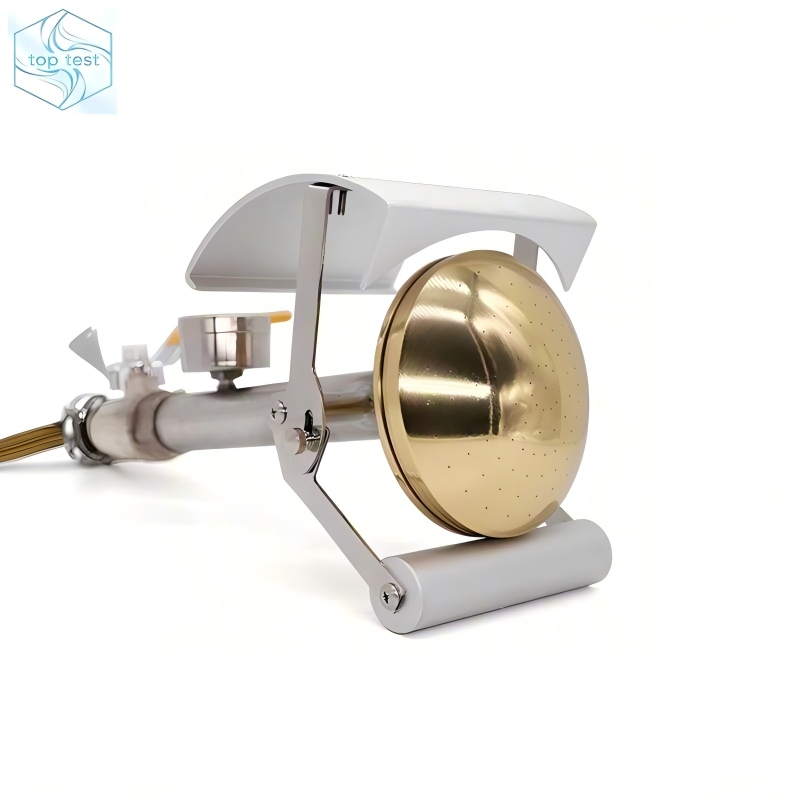

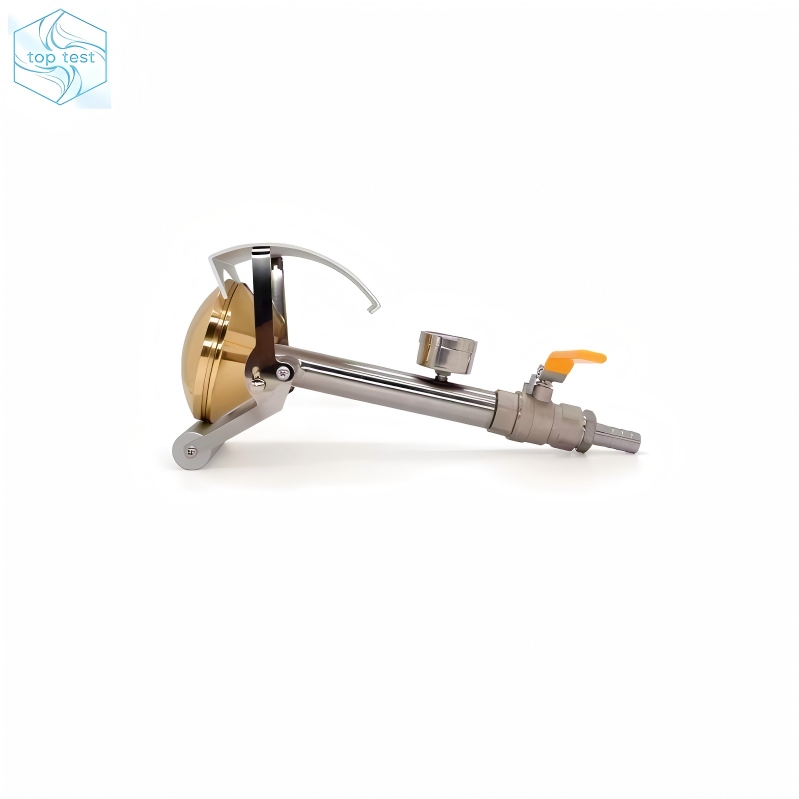

Handle-held IEC 60529 IPX3 IPX4 Waterproof Test Spray Nozzle
Standard:
IEC 60529:2013 "Degrees of protection provided by enclosure (IP code)" IPX3/IPX4.
Structure:

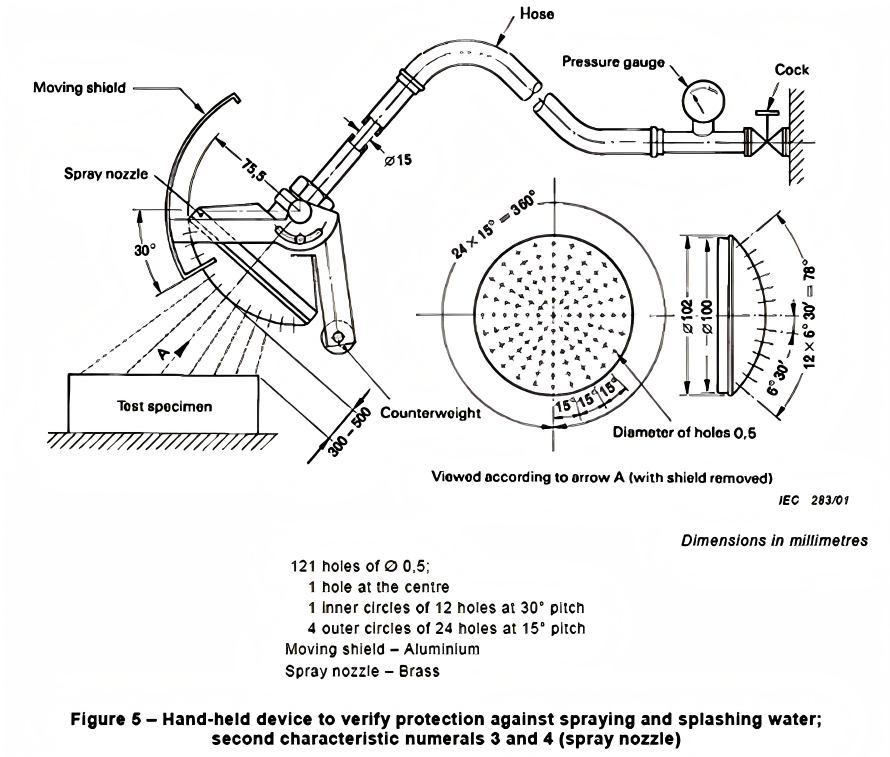

This device is manufactured according IEC 60529 figure 5, it can achieve IPX3/ IPx4 hand-held sprayingtest by connecting water pipe.
Samples and Restrictions:
Electrical and electronic products, automobiles, motorcycle parts, communication products,household appliances, outdoor lighting and signal devices, etc
Application:
To verify the protective performance of the encosure for electronic and electrical products, automobiles,motorcycle parts, household appllances, seals and lamps under water spraying and splashing at degree IPX3 and IPx4.
Features:
-Accurately machined spray nozzle in compliance with IEC 60529.
-Both IPX3 and IPX4 testing are appropriate.
-Stainless steel structure for longevity.
-Adaptable spray angle .
-Design of ergonomic handles.
-Integrated flow rate regulationWater coupling with quick connectivity.
-A pressure gauge is included.
-There is a calibration certificate available.
-Adhering to global testing guidelines.
