Ozone Aging Test Chamber for Rubber | ISO 1431 ASTM D1149
TT-OATC ozone aging test chamber for rubber ozone cracking tests per ISO 1431, ASTM D1149 and IEC 60811-2-1: 50-1000 pphm ozone concentration, 9-60 °C, static and dynamic strain fixtures with 0.5 Hz cyclic stretching, 1000 L stainless steel chamber.
Overview
The TT-OATC evaluates the ozone cracking resistance of vulcanized and thermoplastic rubber, cable insulation and sheaths. Specimens are exposed in a closed, light-free chamber with constant ozone concentration and constant temperature, then inspected for surface cracks or other property changes after the specified exposure time.
Three Test Patterns
Static test: the specimen is stretched by 20% or a specified ratio, then exposed at the prescribed ozone concentration and inspected with a magnifier when the time is reached. Continuous dynamic test: the specimen is cyclically stretched, for example between zero and 10% at 0.5 Hz for 72 hours, and checked for cracks. Intermittent dynamic test: the specimen is stretched cyclically to maximum elongation, held there in the same ozone environment, and dynamic and static phases can be alternated as required.
Key Features

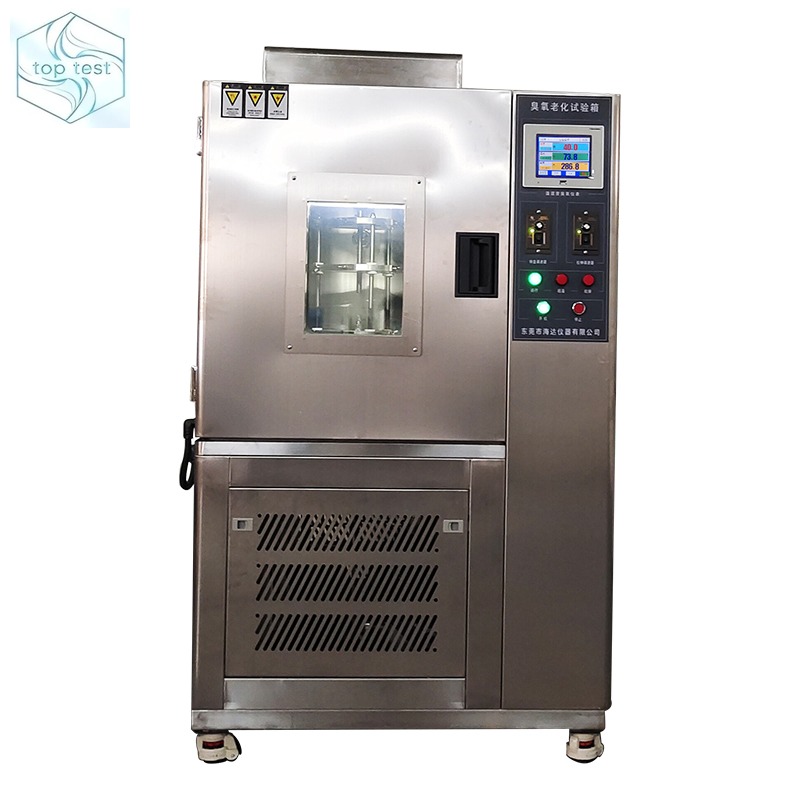

The chamber is built of ozone-resistant stainless steel with an observation window and internal lighting. Ozone is produced by a silent discharge tube generator, and concentration is measured by an ozone sensor with adjustable setpoint on the controller. Temperature, humidity, and ozone level are monitored in real time, the dynamic reciprocating tensile fixture offers adjustable speed, and an emergency fault alarm plus mobile casters make the chamber safe and easy to place in the lab.
Technical Specifications
Main technical specifications are listed below. Custom tank sizes, pressure ranges and fixtures can be configured to match your test standard.
Item | Specification |
|---|---|
Model | TT-OATC |
Standards | ISO 1431-1/-3, GB/T 7762, ASTM D1149/D3041/D1171, IEC 60811-2-1 |
Chamber size | 1000 × 1000 × 1000 mm |
Temperature range | 9-60 °C, fluctuation ±0.5 °C, uniformity ≤2 °C |
Ozone concentration | 50-1000 pphm, high/low customizable |
Test modes | Static, continuous dynamic, intermittent dynamic (0.5 Hz) |
Construction | Ozone-resistant stainless steel, observation window, internal lighting |
Ordering Guidance
The chamber supports test methods including ISO 1431-1 and 1431-3, GB/T 7762, ASTM D1149, ASTM D3041, ASTM D1171, and IEC 60811-2-1. Tell us your ozone concentration range, specimen geometry, and whether dynamic stretching is required, and we will confirm the chamber and fixture configuration.
This machine is frequently ordered together with our UV accelerated aging test chamber and ASTM xenon arc weathering test chamber.
