Xenon Arc Weathering Test Chamber | Accelerated Aging & Weather Resistance Tester
Overview

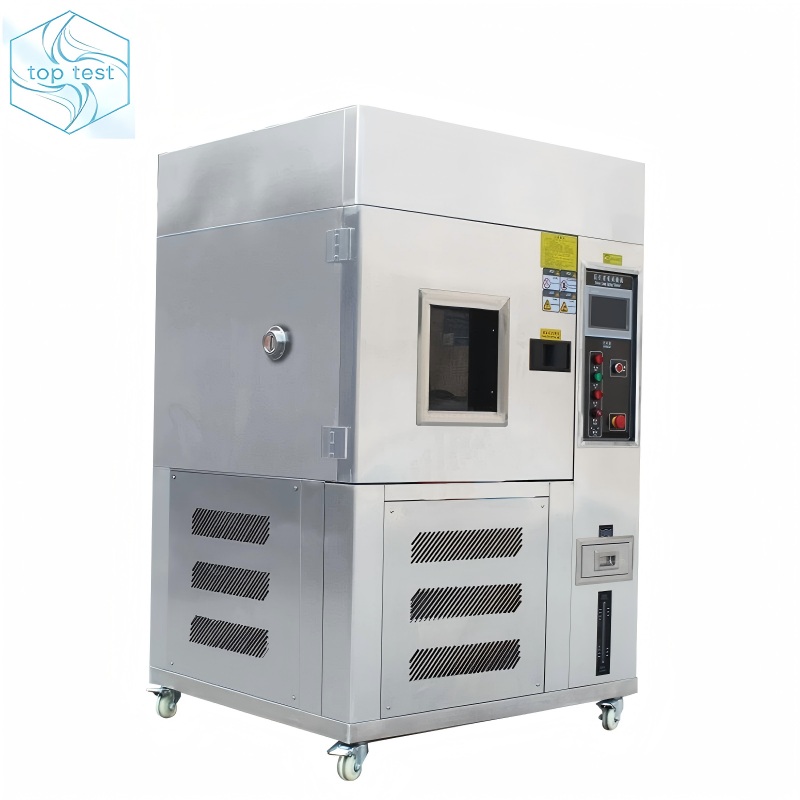

Top Test Xenon Arc Weathering Test Chamber is a high-performance environmental simulation instrument that replicates full-spectrum sunlight, heat, humidity and rain to accelerate material aging. This Top Test equipment compresses months of natural outdoor exposure into days/weeks, providing reliable data for R&D, quality control and compliance. Equipped with advanced xenon arc lamps, precise control systems and user-friendly operation, it helps predict material durability, avoid product failures and meet global quality standards.
Standards Compliance
Top Test Xenon Arc Weathering Test Chamber is strictly designed to international and national standards, ensuring authoritative, traceable test results. We comply with the following standards to meet diverse industry needs:
- General Standards: ISO 4892-2, ASTM G155, ASTM G151, GB/T 16422.2-2007 (equivalent to ISO 4892-2).
- Coatings & Paints: ISO 11341, ASTM D6695, GB/T 1865-2007 (equivalent to ISO 11341).
- Automotive Industry: SAE J2527 (exterior), SAE J2412 (interior).
- Textiles & Fabrics: ISO 105-B02, ISO 105-B04, AATCC TM16.
- Electronics & Photovoltaics: IEC 61215, IEC 60068-2-5.
- Other Standards: GB/T 9344-1988, GB/T 2423.24-1995, ASTM D4459, ASTM D2565.
Structure
Top Test Xenon Arc Weathering Test Chamber features a robust, corrosion-resistant structure for stable operation and accurate results. Key structural components:
- Chamber Body: Exterior (powder-coated steel/stainless steel optional), interior (SUS304 anti-corrosion mirror stainless steel). 100mm ultra-fine glass fiber insulation ensures stable internal temperature.
- Light Source Housing: Top-mounted, open-type design for easy lamp maintenance/replacement, with heat dissipation to extend lamp life.
- Door & Sealing System: Imported sealing materials for airtightness; safety interlock device ensures operator safety.
- Air Circulation System: Dual-loop system with high-temperature-resistant fan and optimized ducts, ensuring uniform airflow and stable温湿度.
- Core Systems Installation: Modular design of heating/humidification/refrigeration/spray systems for easy maintenance.
- Sample Rack: Rotating/flat-bed (optional), ensuring uniform light exposure for batch testing.
Features and Advantages
Top Test Xenon Arc Weathering Test Chamber integrates advanced technology and user-friendly design, offering unique advantages for efficient, reliable testing:
Core Features
- Accurate Full-Spectrum Simulation: 3KW air-cooled xenon lamp (295nm~800nm), borosilicate glass filters, simulating natural/outdoor/indoor light accurately.
- Precise Multi-Parameter Control: Temp fluctuation ≤±0.5℃, humidity fluctuation +2%~-3% RH, irradiance 100W~800W/㎡ (auto-compensates for lamp attenuation).
- Customizable Test Cycles: Programmable light (0~999h), spray (1~9999min) and interval (1~240min) cycles, simulating rain/dew.
- Intelligent Operation: Touchscreen interface, real-time irradiance/cumulative radiation display, data recording/export for traceability.
- Durable & Safe: Corrosion-resistant materials, multiple safety protections (over-temperature, water shortage, leakage, etc.).
Key Advantages
- High Test Efficiency: Accelerates aging by multiple times, shortening R&D and quality inspection cycles.
- Wide Versatility: Suitable for automotive, coatings, plastics, textiles, construction, photovoltaic industries.
- Authoritative Results: Complies with global standards, ensuring test accuracy and market recognition.
- Cost-Effective: Low energy consumption, long service life, reducing maintenance and operational costs.
- Easy Maintenance: Open-type lamp housing and modular design for convenient maintenance.
Technical Parameters
Below are standard technical parameters of Top Test Xenon Arc Weathering Test Chamber; customization is available for specific needs:
| |
|---|
| Test Chamber: 500×500×600 mm; Exterior Chamber: 810×1200×1800 mm |
| Temp Range: RT+10℃~80℃; Black Panel Temp: RT+10℃~80℃ (±3℃); Fluctuation: ≤±0.5℃; Uniformity: ≤±2.0℃ |
| Humidity Range: 60%~98% R.H.; Fluctuation: +2%~-3% R.H. |
| Air-cooled xenon lamp (3KW, 1 unit); Wavelength: 295nm~800nm; Irradiance: 100W~800W/㎡; Filter: Borosilicate glass |
| Spray: 1~9999min (continuous), 1~240min (interval); Nozzle: Φ0.8mm (filter); Pressure: 0.12~0.15MPa; |
| Heating: 4.5KW; Humidifying: 3KW; Light Cycle: 0~999h |
| Imported French hermetic compressor; Air-cooled; Refrigerant: R404A; |
| Ambient Temp: 5℃~35℃; Humidity: ≤85% R.H.; 800mm clearance around unit, well-ventilated |
Applications
Top Test Xenon Arc Weathering Test Chamber is widely used to evaluate material durability, weather resistance and light fastness across industries:
1. Automotive Industry (Automotive OEMs & Tier-1 Suppliers)
Tests automotive exterior (bumpers, lenses) and interior (dashboard, fabrics) components, complying with SAE J2527/J2412, evaluating fading, cracking and brittleness.
2. Coatings, Paints & Inks
Tests coatings, paints and printed materials, complying with ISO 11341/ASTM D6695, evaluating gloss retention, fade resistance and chalking.
3. Plastics, Polymers & Rubber Products
Tests plastics, rubber, composites and seals, complying with ISO 4892-2/ASTM D4459, evaluating UV degradation and strength loss.
4. Textiles & Apparel
Tests outdoor fabrics, sportswear and leather, complying with AATCC TM16/ISO 105-B02, evaluating light fastness and discoloration.
5. Building & Construction Materials
Tests construction materials (profiles, waterproof membranes, glass), evaluating weatherability and UV resistance.
6. Photovoltaic (PV) & Renewable Energy
Tests PV components (encapsulants, junction boxes), complying with IEC 61215, evaluating UV stability and long-term performance.
FAQ (Frequently Asked Questions)
Common FAQs about Top Test xenon test chambers; contact us for further technical support.
- Q: Xenon lamp replacement cycle?
A: 1000-2000 hours; replace when irradiance is unstable. We provide original spare parts.
- Q: Air-cooled vs water-cooled?
A: Our model is air-cooled (compact, low energy, easy maintenance). Water-cooled (customizable) for long-term/large-capacity needs.
- Q: Customization available?
A: Yes, we customize size, parameters, functions to match your test requirements.
- Q: How to calibrate irradiance?
A: Automatic calibration via touchscreen; we provide guidelines, on-site/remote support.
- Q: What if the chamber fails?
A: Fault code prompt; solve simple faults via manual; 24h online support, on-site maintenance if needed.
Product Warranty & After-Sales Service
Top Test provides reliable warranty and after-sales service to reduce your worries and build long-term cooperation.
Warranty Terms
- Warranty: 1 year (core components of Top Test chambers: xenon lamp, compressor, control system).
- Warranty Scope: Free defective component replacement (excluding consumables) and maintenance; excluding man-made/natural damage.
- Consumables: Preferential original parts (xenon lamps, filters) for Top Test chambers, timely supply.
After-Sales Service
- Technical Consultation: 24h online support (email, WhatsApp, video) for operation/maintenance questions.
- Installation: On-site installation, debugging and training for your team to use the equipment proficiently.
- Maintenance: 24h response, on-site maintenance for overseas customers to minimize downtime.
- Lifetime Support: Lifetime technical support for all Top Test chambers (software upgrades, maintenance guidance).
