Digital Control Electromagnetic Vibration Testing Machine

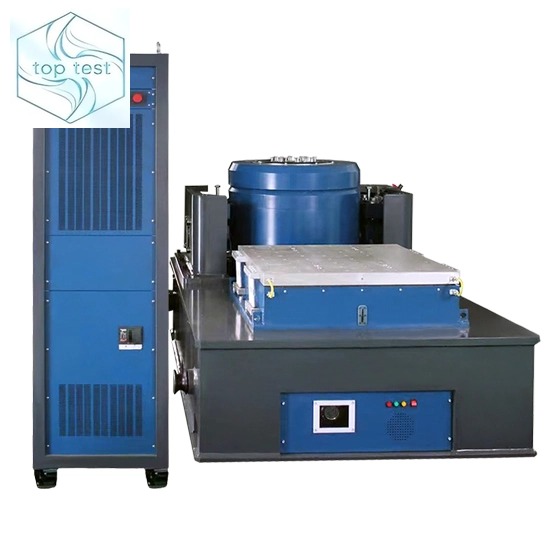

TT-GP-ZD1000 electromagnetic vibration test system with VG1000-50 shaker and SA-12 digital switching power amplifier: 1000 kgf peak sine force, 1–3000 Hz frequency range, 51 mm p-p displacement, 100 G maximum acceleration, vertical and horizontal expansion tables, and a two-channel controller with sine and random software.
Overview
The TT-GP-ZD1000 is a complete electrodynamic vibration test system for laboratory sine and random vibration testing. The VG1000-50 electromagnetic vibration generator is driven by the SA-12 digital switching power amplifier and managed by a two-channel digital vibration controller with sine, random and typical shock profiles, so the system reproduces transportation and operating vibration environments on one table.
Key Features
The shaker delivers a maximum sinusoidal excitation force of 1000 kgf peak, a maximum random excitation force of 1000 kgf rms and a maximum shock force of 2000 kgf peak, with a 1 to 3000 Hz frequency range, 51 mm p-p displacement, 2 m/s maximum velocity and 100 G maximum acceleration. Payloads reach 190 kg at 5 G and 23 kg at 30 G, with a 300 kg table payload limit.
The system is delivered ready to run: BL-1000 cooling fan with muffler, VT640 and VT680 vertical expansion tables, an H0808 horizontal oil film slide for vertical-and-horizontal testing, photoelectric coil automatic centering, a servo protection system, two LAB24112 accelerometers and a control computer with Chinese/English software for time-domain and frequency-domain analysis.
Specifications
The following table lists the main technical parameters of the TT-GP-ZD1000 electromagnetic vibration test system.
Item | Specification |
|---|---|
Model | TT-GP-ZD1000 |
Shaker Body | VG1000-50 electromagnetic vibration generator |
Maximum Sine Excitation Force | 1000 kgf peak |
Maximum Random Excitation Force | 1000 kgf rms |
Maximum Shock Excitation Force | 2000 kgf peak |
Frequency Range | 1 – 3000 Hz |
Maximum Displacement | 51 mm p-p |
Maximum Velocity / Acceleration | 2 m/s / 100 G (980 m/s²) |
Maximum Load (Sine) | 190 kg @ 5 G, 90 kg @ 10 G, 40 kg @ 20 G, 23 kg @ 30 G |
Payload | 300 kg |
First-order Resonant Frequency | 3200 Hz ± 5% |
Moving Coil | Φ240 mm, 10 kg, 17 × M10 table screws |
Power Amplifier | SA-12 digital switching type, 12 kVA, 100 V, 120 A, efficiency ≥ 90% |
Vibration Controller | 2-channel input, sine / random / typical shock, control computer with Windows 10 |
Expansion Tables | VT640 400 × 400 mm, VT680 800 × 800 mm, H0808 horizontal oil film slide |
Shaker Dimensions / Weight | 845 × 790 × 840 mm (excluding extension table), approx. 1100 kg |
Applications
The system supports vibration qualification of electronic assemblies, vehicle-mounted devices and packaged products, and pairs naturally with our ASTM transport vibration tester for repeated-shock road simulation and with the THV temperature humidity vibration combined chamber when environmental stress must be applied at the same time.
Typical profiles include sine sweep durability checks, random vibration spectrum tests and typical shock pulses, all configured from the same controller software.
