ASTM Transport Slation Vibration Tester
The TT-ZD-100 Series Transportation Vibration Tester simulates vibration and impact conditions during road transportation to evaluate packaging durability, product protection, fixing methods, and shipping reliability. It is suitable for cartons, wooden cases, pallets, electronics, appliances, automotive parts, furniture, medical equipment, ceramics, and other packaged products. The tester can be used for transportation packaging tests referencing ASTM D999, ASTM D4169, ISTA, ISO 2247.

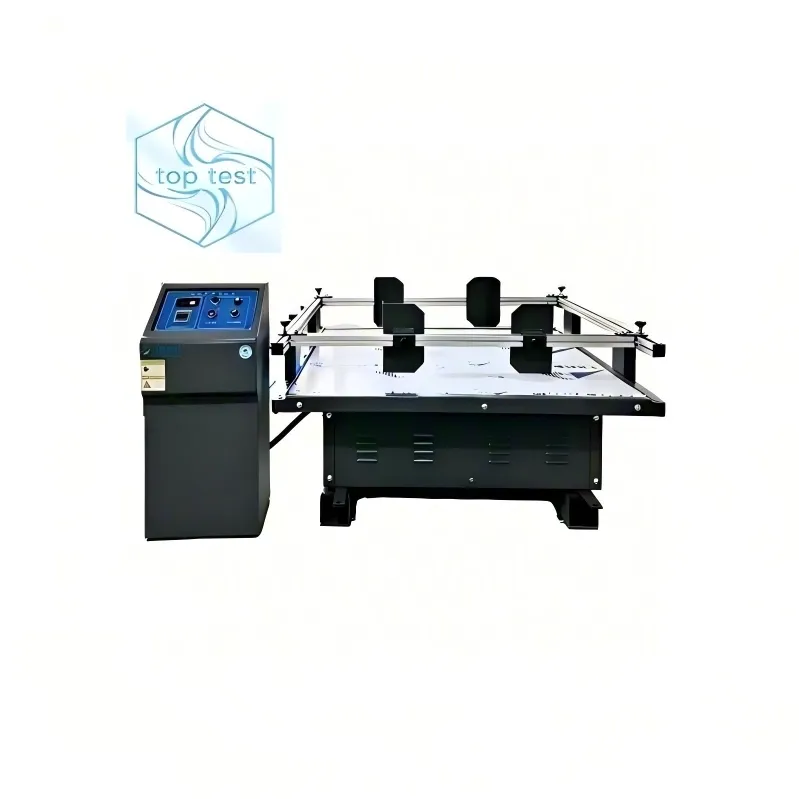

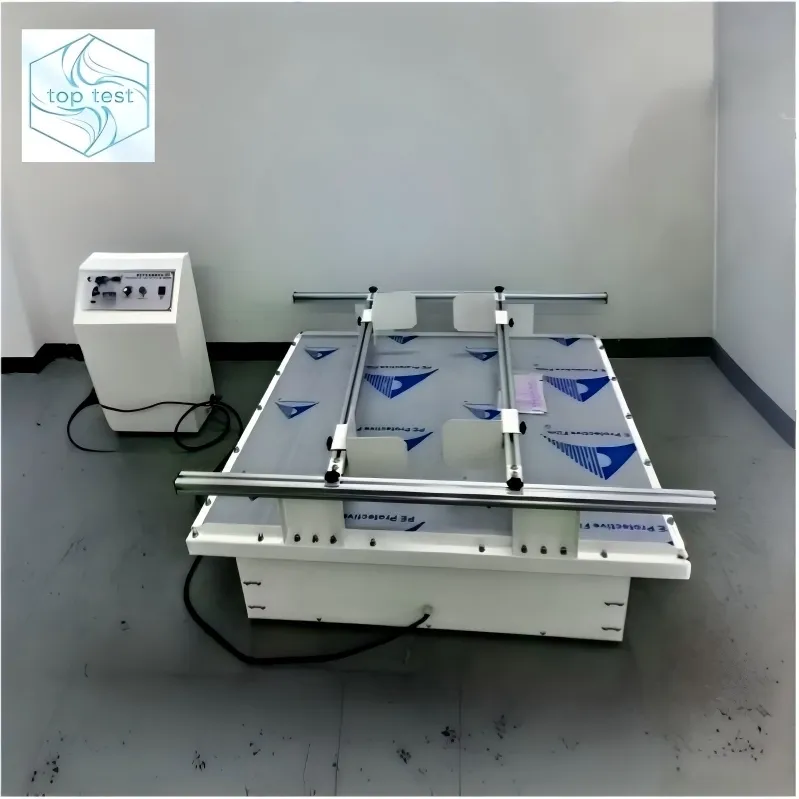

TT-ZD-100 Series Transportation Vibration Tester
Product Overview
The TT-ZD-100 Series Transportation Vibration Tester is designed to simulate the vibration, bumping, collision, and compression that products and packages may experience during road transportation.
With a rotary reciprocating vibration mechanism and variable-frequency speed control, the tester reproduces continuous transportation vibration in a controlled laboratory environment. It is suitable for evaluating packaging durability, product protection performance, fixing methods, and transportation reliability.
The tester can be used for cartons, wooden cases, pallets, consumer products, electronic equipment, automotive components, furniture, ceramics, and other packaged goods.
Available Models
- TT-ZD-100: Maximum test load 50 kg
- TT-ZD-100A: Maximum test load 100 kg
- TT-ZD-100B: Maximum test load 200 kg
Key Features
- Rotary reciprocating vibration motion
- Variable-frequency speed control
- Frequency range of 100–300 rpm
- 25.4 mm displacement, equivalent to 1 inch
- SUS304 stainless steel test platform
- Test duration adjustable from 0 to 99 hours
- Automatic timing and stop function
- Delayed start setting from 0 to 15 seconds
- Low-noise variable-frequency motor
- Suitable for packaging and transportation simulation testing
- Optional clamps and fixing accessories available
Transportation Simulation Principle
During road transportation, packages may be exposed to uneven roads, acceleration, braking, uphill and downhill driving, turning, and contact between products and vehicle compartments.
The TT-ZD-100 Series generates continuous rotary vibration to simulate these conditions. After testing, the package and product can be inspected for:
- Carton cracking, deformation, or structural damage
- Cushioning material displacement or compression
- Product movement or collision inside the package
- Loose screws, terminals, connectors, or internal components
- Broken parts, abrasion, or surface damage
- Functional failure or performance degradation
- Insufficient packaging protection and fixing
Technical Specifications
Parameter | TT-ZD-100 | TT-ZD-100A | TT-ZD-100B |
|---|---|---|---|
Maximum test load | 50 kg | 100 kg | 200 kg |
Frequency range | 100–300 rpm | 100–300 rpm | 100–300 rpm |
Displacement | 25.4 mm (1 inch) | 25.4 mm (1 inch) | 25.4 mm (1 inch) |
Vibration mode | Rotary reciprocating | Rotary reciprocating | Rotary reciprocating |
Table size | 1000 × 1200 mm | 1200 × 1200 mm | 1200 × 1500 mm |
Table material | SUS304 stainless steel | SUS304 stainless steel | SUS304 stainless steel |
Test duration | 0–99 hours | 0–99 hours | 0–99 hours |
Delayed start setting | 0–15 seconds | 0–15 seconds | 0–15 seconds |
Speed control | Variable-frequency control | Variable-frequency control | Variable-frequency control |
Power supply | 220 V / 50 Hz | 220 V / 50 Hz | 220 V / 50 Hz |
Power consumption | Approx. 1 kVA | Approx. 1 kVA | Approx. 1 kVA |
Overall dimensions | Approx. 1200 × 1070 × 660 mm | Approx. 1200 × 1270 × 660 mm | Approx. 1200 × 1270 × 660 mm |
Machine weight | Approx. 150 kg | Approx. 150 kg | Approx. 150 kg |
Final specifications may vary according to the technical agreement and actual configuration.
Applications
The TT-ZD-100 Series is suitable for:
- Packaging and packaging materials
- Logistics and transportation
- Consumer electronics and electrical appliances
- Automotive parts and vehicle electronics
- Furniture and household products
- Computers, communication equipment, and instruments
- Medical equipment and laboratory devices
- Batteries and energy storage products
- Glass, ceramics, and fragile products
- Third-party testing laboratories
- Universities, research institutes, and quality control departments
Test Applications：
Packaging Transportation Test
Evaluate the ability of cartons, wooden cases, pallets, and complete packaging systems to protect products during road transportation.
Packaging Design Verification
Compare different cushioning materials, internal supports, sealing methods, and fixing solutions to identify the most reliable packaging design.
Product Transportation Reliability Test
Check whether products remain structurally intact and fully functional after continuous transportation vibration.
Pre-Shipment Quality Inspection
Perform visual, dimensional, structural, and functional inspections before and after testing to identify potential transportation risks.
Packaging Solution Comparison
Compare different packaging materials and designs to reduce product damage, customer complaints, and logistics-related costs.
Applicable Standards and Test References
Depending on customer requirements and product specifications, the TT-ZD-100 Series may be used for transportation packaging tests based on:
- ASTM D999 — Vibration testing of shipping containers
- ASTM D4169 — Performance testing of shipping containers and systems
- ISTA 1, 2, and 3 Series test procedures
- ISO 2247 — Low-frequency vibration testing of complete, filled transport packages
- ISO 8318 — Sinusoidal variable-frequency vibration testing
- ISO 13355 — Vertical random vibration testing of complete, filled transport packages and unit loads
The exact vibration speed, test duration, load, and procedure should be selected according to the applicable standard, product type, packaging design, transportation route, and customer test specification.
TT-ZD-100 Series — Simulating transportation vibration to improve packaging reliability and protect products before shipment.
