Wire Bending Test Machine/Cable Wire Bending Tester
Wire bending test machine (also known as a wire repeated bending or swing test machine) is a specialized device designed to test the resistance to repeated bending fatigue of wires, cables, and other similar materials. Its core function is to simulate actual bending conditions during use, evaluating their fatigue resistance, fracture resistance, and service life.

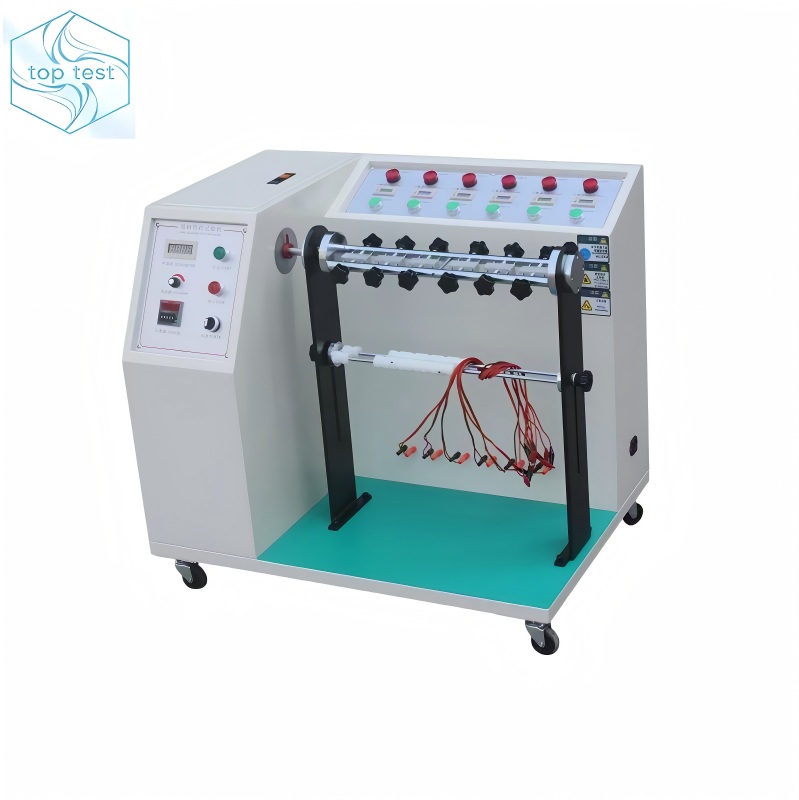

Wire Flex Swing Tester
1. Overview
Our Wire Flex Swing Tester (also called Top Test Wire Bending Tester) is a high-precision, cost-effective wire flex swing tester for sale, designed to evaluate the flexural durability and surface integrity of wires and cables. As a professional wire flex swing tester manufacturer, Top Test provide this high precision wire bending testing machine, widely used in global wire & cable manufacturers, laboratories and R&D departments. This CE certified wire flex testing equipment follows international standards, with stable performance, easy operation and wide adaptability, providing authoritative test data for quality control and helping global customers meet overseas market compliance requirements.
2. Standard
Our Wire Flex Swing Tester fully complies with global standards, ensuring authoritative and recognized test results for overseas procurement. Applicable standards include:
- International Standards: UL 817, ISO 7801, IEC 60227, IEC 60335-1, AS 4373, VDE 0472, ASTM E2948
- National Standards: GB/T238-2013, GB/T235, GB/T14471
Designed to meet ISO 7801 wire bending test machine and IEC 60227 flexible cable bending tester requirements, this UL 817 compliant wire swing tester ensures smooth overseas market quality inspection.
3. Application
With strong versatility, our tester applies to various wires and cables across industries. Main applicable products:
- Power Cords & DC Cords: Tested by our power cord bending durability tester and plug lead bending tester to check bending resistance at plug-wire connections.
- Metal Wires: φ0.3-φ10mm wires and 0.1~3mm thin plates tested by our metal wire flex fatigue testing machine to evaluate toughness and fatigue life.
- Flexible Cables: USB cables, automotive wiring harnesses (tested by our automotive wiring harness flex tester) and more, simulating real-world swinging/bending conditions.
- Special Wires: Medical guidewires, aviation wires, etc., meeting high-precision industry standards.
It is essential for manufacturers, quality inspection institutions and laboratories, suitable for small-batch screening, large-batch testing and R&D.
4. Features and Functions
4.1 Core Features
- Easy Operation: LCD touch screen, no professional training required, 5-6x longer service life than traditional models (multi-station wire bending testing equipment).
- Stable Performance: Servo motor + worm gear reducer, noise-free operation; anti-static powder-sprayed arc cabinet, durable and corrosion-resistant.
- Precise Control: 10~60 times/min wire flex tester speed, adjustable angle wire swing tester (10°~180°), weight hanging plate for accurate tension application.

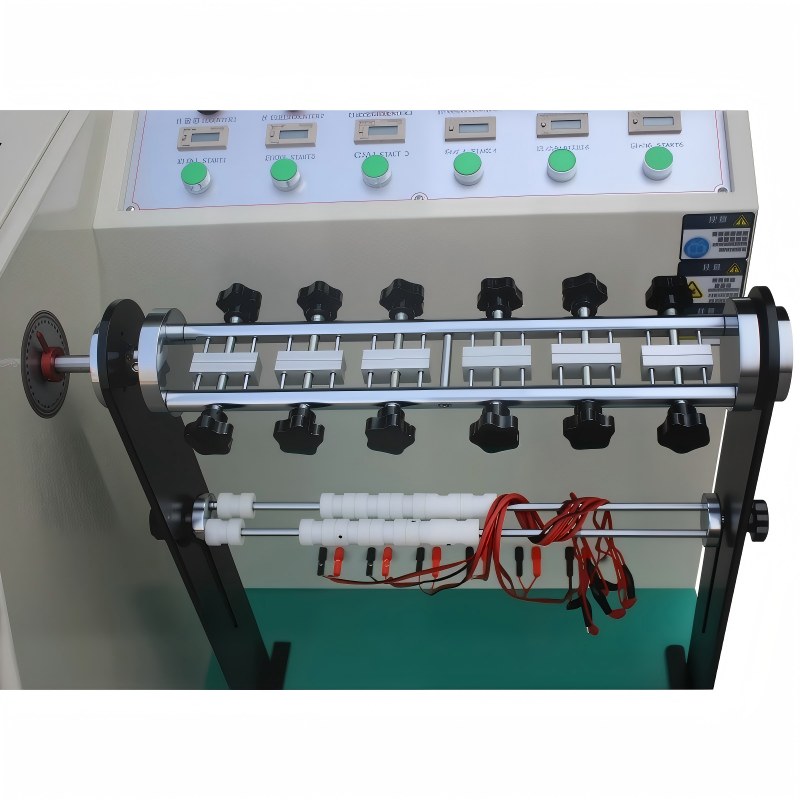

- Wide Adaptability: Multi-spec fixtures, compatible with wires/plates; adjustable test fixing rod for standard-compliant testing.
- Intelligent and Efficient: Automatic wire flex tester with data storage, photoelectric switch detection, power-off memory; 6 station wire bending tester for simultaneous multi-sample testing.
- CE Certified: Complies with European safety standards, facilitating EU market promotion.
4.2 Main Functions
- Fatigue Durability Test: Simulate real bending/swinging, record breaks to evaluate service life.
- Continuity Monitoring: Auto-stop and lock data when sample disconnects or insulation fails.
- Preset Test Parameters: 0~999999 preset swings, auto-stop when reached.
- Load Test: 50g/100g/200g/300g/500g weights for real stress simulation.
- Data Record and Storage: Auto-save data for query, statistics and traceability.
5. Technical Parameters
| |
| 6 groups (simultaneous plug lead testing) |
| 10~60 times/min, digital display, manual adjustment |
| 10°~180°, knob adjustment, LCD display |
Bending Angle Display & Adjustment | Dial pointer + manual eccentric shaft adjustment |

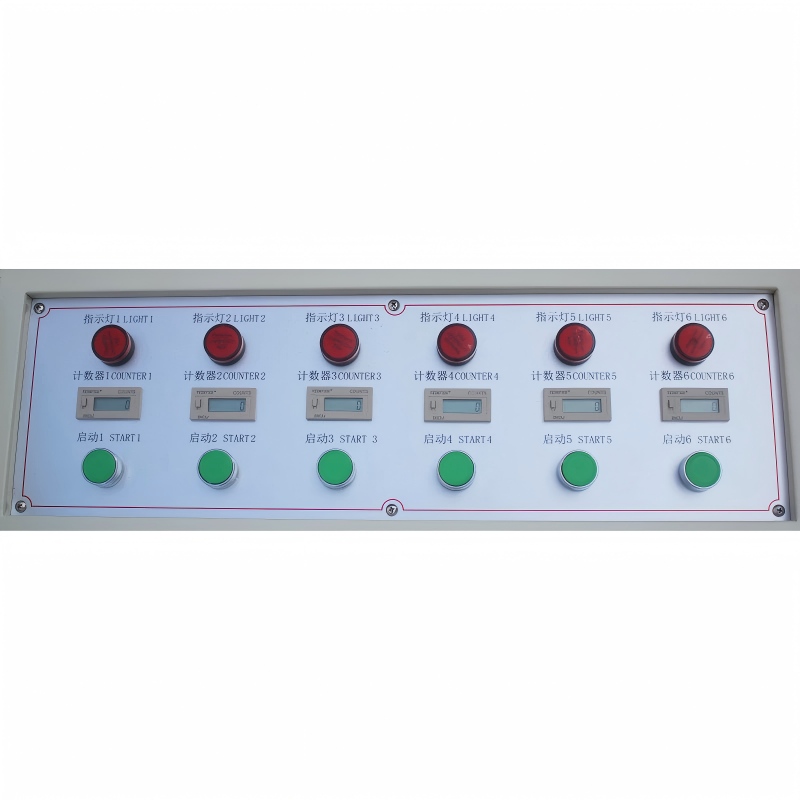

| 0~999999 times (presettable, auto-stop) |
Swing Continuity Sub-counter | 0~999999 times (auto-stop on disconnection) |
| 50g/100g/200g/300g/500g (6 pieces each) |
| 6 groups anti-slip fixtures (anti-slip fixture wire flex testing machine) |
| |
| Anti-static powder spraying |
| 85x60x75cm (85x60x75cm wire bending tester dimensions) |
| |
| AC220V/50Hz (AC220V wire flex swing testing machine) |
| 95W (low power wire flex swing tester) |
6. Product Advantages
As a professional testing equipment foreign trade supplier, Top Test wire bending tester has obvious advantages:
- International Compliance: UL 817 wire flex tester and ISO 7801 wire bending test machine, meeting EU/US market requirements.
- High Cost-Effectiveness: Stable performance, high precision, competitive price to reduce procurement costs.
- Customizable: Customizable wire flex testing machine solutions for personalized test needs.
- Reliable After-Sales: As a reliable wire bending tester supplier, we provide timely technical support and maintenance.
7. FAQ (Frequently Asked Questions)
- Q: Is this tester compatible with EU/US international standards?
A: Yes, it complies with UL 817, ISO 7801, IEC 60227, has CE certification, meeting EU/US compliance requirements.
- Q: Can the 6-station tester be customized to other station quantities?
A: Yes, we provide customizable solutions, adjusting stations (1-6) based on your specific needs.
- Q: What is the delivery time?
A: Standard: 7-15 working days; customized orders are adjusted based on requirements, with on-time delivery guaranteed.
- Q: Is after-sales service and technical support provided?
A: Yes, 1-year free warranty and lifelong technical support are available.
- Q: Can it test both metal wires and flexible cables?
A: Yes, it is versatile for φ0.3-φ10mm metal wires and flexible cables like USB/automotive wiring harnesses.
- Q: Is it compatible with overseas power grids?
A: Standard AC220V/50Hz; customizable to AC110V/60Hz for overseas compatibility.
