Two-Zone Thermal Shock Test Chamber
High-performance fast temperature impact tester two-zone thermal shock test chamber for rapid temperature cycling. Compliant with IEC 60068-2-14, MIL-STD standards. Ideal for electronics, metal materials, and automotive components.

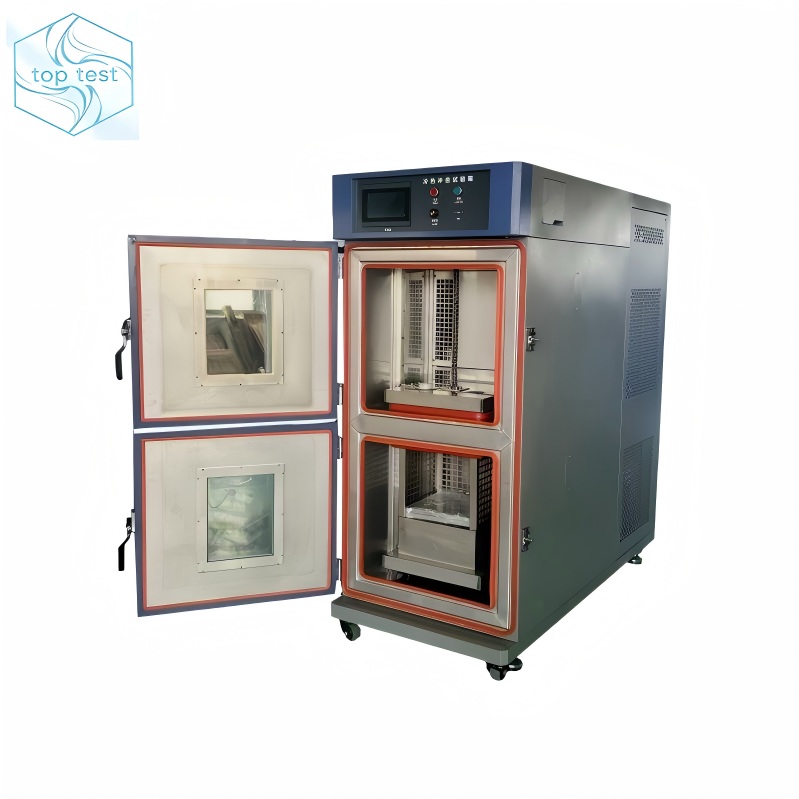

Two-Zone Thermal Shock Test Chamber
Product Overview
The Top Test Two-Zone Thermal Shock Test Chamber is a cost-effective, high-precision environmental reliability testing solution designed to simulate extreme temperature fluctuations in a short timeframe. Utilizing a specialized basket rotation structure, fast transition thermal shock chamber rapidly transfers samples between high and low-temperature zones, enabling accurate evaluation of material degradation caused by thermal expansion, contraction, and thermal stress.The chamber is specifically engineered for cost-conscious applications requiring fast testing cycles, making it the ideal choice for general electronics, plastic parts, metal materials, and non-precision automotive components. the robust design and efficient performance of thermal shock test chamber ensure consistent, repeatable results for quality control and reliability testing across industrial sectors.
Core Advantages & Key Features
Core Benefit | Technical Specification |
|---|---|
Ultra-Fast Temperature Transition | ≤10 seconds switching time |
Precision Temperature Control | Fluctuation: ±0.5℃; Uniformity: ±2℃ |
Durable Integrated Structure | One-piece molding |
High Cost-Efficiency | Simplified mechanical design |
Comprehensive Safety Protection | Over-temperature, over-pressure, leakage protection |
Technical Specifications
Parameter | Specification |
|---|---|
Model | TT-TS-100 (Customizable) |
Inner Chamber Size | 500 × 600 × 750 (L×W×H) |
Total Volume | 225L |
Temperature Range | High: +50℃ ~ +150℃ Low: -20℃ ~ -70℃ |
Shock Method | Basket Moving Type |
Temperature Transition Time | ≤ 10s |
Temperature Uniformity | ≤ ±2℃ |
Temperature Fluctuation | ≤ ±0.5℃ |
Refrigeration System | Cascade Compressor |
Refrigerant | R404A / R23 (Eco-friendly) |
Control System | 7-inch Touch Screen + PLC + PID |
Data Export | RS232/RS485 / USB Interface |
Compliance Standards | IEC 60068-2-14, GB/T 2423.2 |
Applicable Standards & Industries
International Standards Compliance
- IEC 60068-2-14: Environmental Testing - Part 2: Tests - Test Nb: Temperature Shock
- MIL-STD-810H: U.S. Military Standard
Typical Application Industries
- Electronics & Electrical: Semiconductors, PCB boards, smartphones, computer assemblies, consumer electronics
- Automotive Components: Wire harnesses, connectors, plastic interior parts, sensors
- Metals & Chemicals: Metal coatings, rubber, plastic materials, coatings
- Research & Quality Inspection: Third-party testing institutions, university laboratories, industrial research centers
Customization Options
Top Test offers tailored solutions to meet specific testing requirements:
- Extended Temperature Range: Customize down to -80℃ for low temperatures and up to +200℃ for high temperatures
- Increased Chamber Volume: Available in larger sizes (50L ~ 408L) or custom walk-in models for large-scale products
- Explosion-Proof Configuration: Specialized safety systems for battery and flammable material testing
- Advanced Data Management: Remote monitoring and automatic PDF test report generation
- Specialized Accessories: Custom sample racks, humidity control, and anti-corrosion coatings
Contact Us
Top Test is a leading manufacturer of environmental reliability testing equipment with over a decade of export experience. Our two-zone thermal shock test chambers are exported to many countries and regions worldwide, trusted by industrial clients for their quality and performance.For a customized solution, competitive quotation, or product demonstration, contact our sales team:
