Tumbling Barrel Testing Equipment
A Drum Drop Tester (also Tumbling Barrel Tester) is professional reliability testing equipment that simulates repeated tumbling, dropping and impact scenarios during shipping or handling. It lifts samples to a fixed height via rotating drum, then lets them fall freely, cycling hundreds to thousands of times to test structural durability and impact resistance—essential for quality inspection in electronics, battery and toy industries.

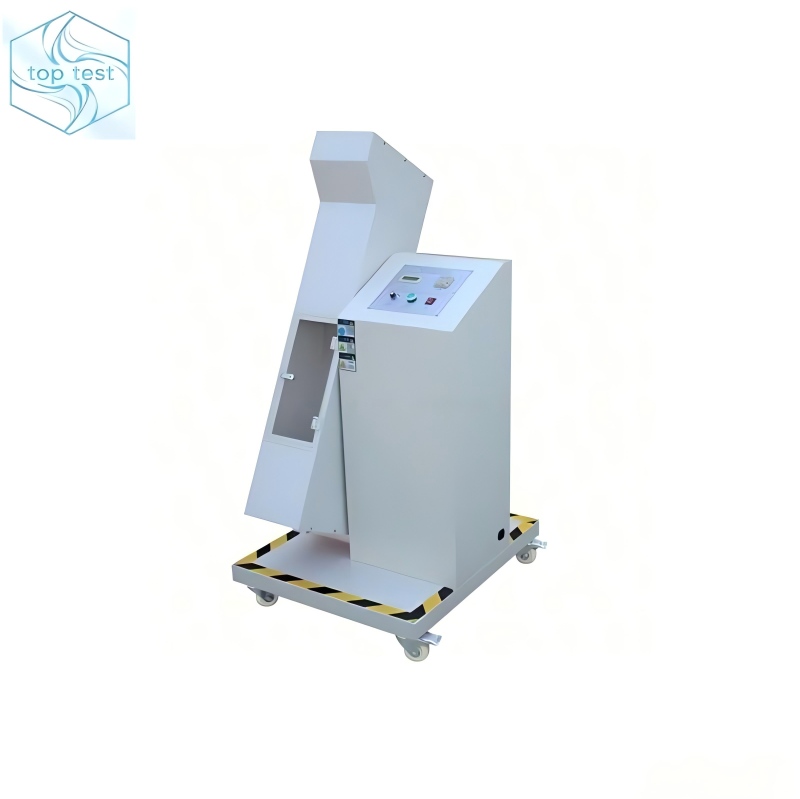

Drum Drop Tester IEC 60068-2-32
Looking for a high-precision, standard-compliant Drum Drop Tester? Our TT-DT Series Tumbling Barrel Tester simulates real-world repeated drop impacts, helping you meet international standards and reduce product failure rates. Suitable for mobile phones, batteries, plugs, toys and small electronics, it combines reliability, automation and flexibility for R&D and quality control.
What is a Drum Drop Tester?
A Drum Drop Tester (also Top Test Tumbling Barrel Tester) is professional reliability testing equipment that simulates repeated tumbling, dropping and impact scenarios during shipping or handling. It lifts samples to a fixed height via rotating drum, then lets them fall freely, cycling hundreds to thousands of times to test structural durability and impact resistance—essential for quality inspection in electronics, battery and toy industries.
Key Features of TT-DT Series Drum Drop Tester
- Standard Compliance: Strictly designed per IEC 60068-2-32, IEC 60884-1, UN 38.3, ASTM D5276, ISO 2248 and ISTA 1A/2A, with globally recognized test results.
- Automated Operation: PLC control + touch screen, one-click start, automatic counting (0~999,999 times), auto-shutdown with alarm, supporting unattended operation to save labor.
- Adjustable & Versatile: Adjustable drop height (500mm/1000mm or custom), drum speed (5~20 rpm) and load capacity (1~50kg), with dual-height models for multi-standard testing.
- Durable & Safe: 3mm+ thick steel drum, sturdy frame, low noise; safety interlock (door closed = no start, emergency shutdown for operator protection).
- Customizable: Explosion-proof models for batteries (UN 38.3), plug/socket-specific models (IEC 60884-1), and large-size models for packaging testing.
Types & Specifications (TT-DT Series)
Our TT-DT Series offers multiple models to fit different testing needs:
1. By Drum Quantity
- Single Drum (TT-DT-500/TT-DT-1000): Cost-effective for small-batch R&D, 500mm/1000mm drop height.
- Double Drum (TT-DT-500×2/TT-DT-500+1000): Simultaneous testing of 2 samples, same/dual height, ideal for mass quality control.
- Four Drum (TT-DT-500×4): High-efficiency for large-scale factory testing of batteries, small electronics.
2. By Drop Height
- 500mm: For mobile phones, earphones, power banks (IEC 60068-2-32 compliant).
- 1000mm: For battery packs, adapters, small home appliances (higher impact intensity).
- Dual-height (500mm+1000mm): One machine for multiple test standards.
3. By Industry Application
- Battery Tester: Explosion-proof, compliant with UN 38.3/GB 38031.
- Plug/Socket Tester: Per IEC 60884-1 standards.
- Toy Tester: Meets GB 6675/EN 71 safety standards.
Standard Technical Parameters (TT-DT Universal Model)
| |
| 500×500×800mm (customizable) |
| 500mm/1000mm (dual-height optional) |
| |
| |
| ≤5kg (regular), 10~50kg (custom) |
| AC220V/50Hz or AC380V/50Hz (customizable) |
| |
Applications
Widely used in consumer electronics, battery, small appliances, toy and packaging industries, testing products like mobile phones, TWS earphones, lithium batteries, plugs, toys
