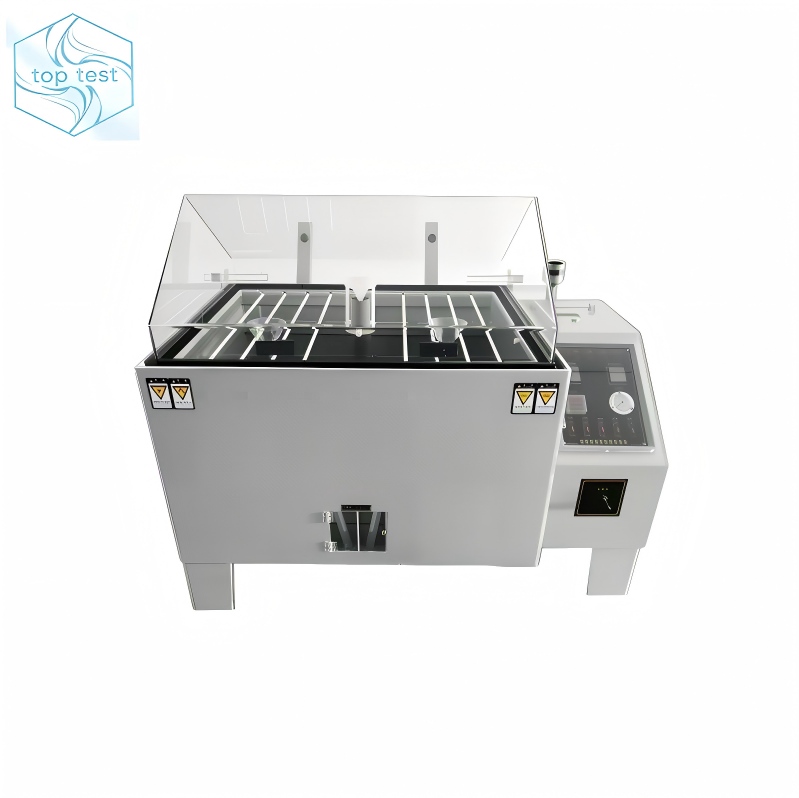

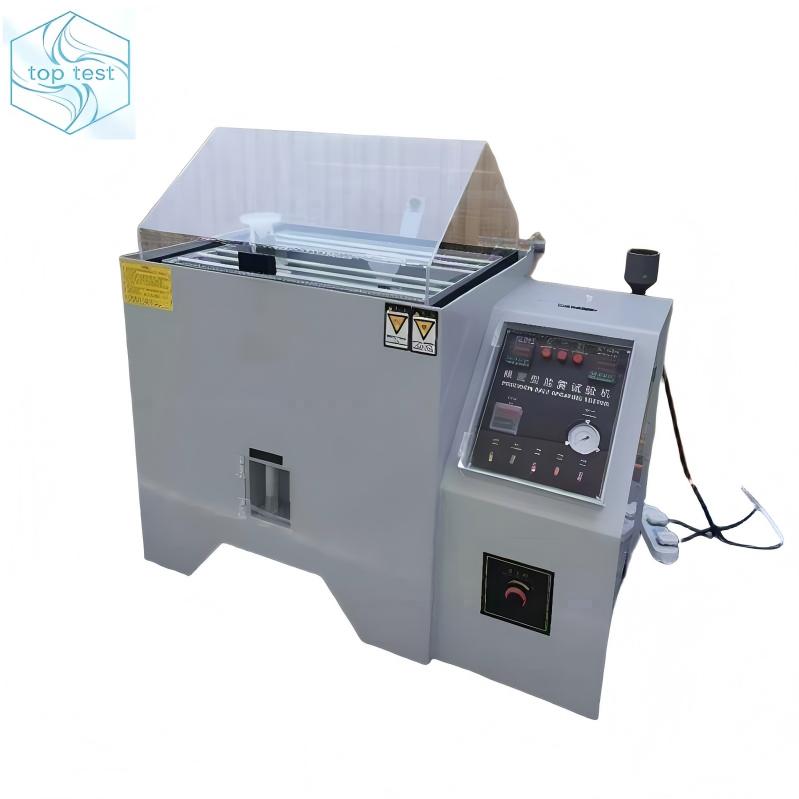

Salt Fog Spray Corrosion Resistance Testing Chamber

Salt Spray Test Chambers are engineered to simulate a controlled salt spray, fog, or mist environment for accelerated corrosion testing. Whether you're evaluating paints, surface coatings, or lubricants, these versatile salt spray test chambers, also known as salt fog test chambers or salt mist test chambers, deliver precise and repeatable results. Available in both Basic and Cyclic versions, each unit is designed for durability, ease of maintenance, and compliance with global testing standards such as ASTM, JIS, DIN, and MIL. The Basic model includes an integrated control panel and PID-based temperature system, while the advanced Cyclic version offers user-programmable touch screencontrols, dry and humidity cycles, and multiple alarm timers.

Contact Us

ASTM Salt Spray Test Chamber Corrosion Testing Equipment

Core Compliance Standards

ASTM B117 | ISO 9227 | JIS Z 2371 | GB/T 2423.17 | NSS / ACSS / CASS
Top Test Salt Spray Test Chamber provides high-precision accelerated corrosion testing for surface coatings, electroplating, anodization and anti-rust materials. It simulates severe marine and industrial corrosive environments, supporting three mainstream test modes: NSS, ACSS and CASS. Widely used in automotive, aerospace, electronic hardware and metal processing industries, our equipment is trusted by customers in more than 40 countries worldwide.


Core Advantages

  1. Fully compliant with global international testing standards
  1. Uniform anti-clogging salt spray system with Bernoulli glass nozzle
  1. Heavy-duty corrosion-resistant structure: 5mm thick PVC + SUS304 material
  1. Intelligent PLC touch screen control, multi-language optional
  1. Automatic & manual dual water supply system with safety alarm
  1. 24-month factory warranty and lifetime technical support


Technical Specifications

Model & Overall Parameter

Item
TT-SSC-90
TT-SSC-120
TT-SSC-160
TT-SSC-200
Internal Size (W×D×H)
900×600×500 mm
1200×800×500 mm
1600×1000×550 mm
2000×1200×600 mm
Tank Volume
270L
480L
880L
1440L
Power Supply
110V/220V 50/60Hz
220V 50Hz
380V 50Hz
380V 50Hz
Power Consumption
2000W
2500W
3500W
4500W

Temperature Parameter

Test Type
Chamber Temperature
Saturation Tower Temperature
NSS / ACSS
35°C ± 1°C
47°C ± 1°C
CASS
50°C ± 1°C
63°C ± 1°C


Spray & Structural Features

  • Adjustable spray volume: 1.0~2.0 ml/80cm²/h (16-hour average test)
  • Continuous spray design, high-temperature resistant special glass nozzle
  • Reinforced thickened PVC chamber, impact and acid-base resistant
  • SUS304 stainless steel saturation air tower with high heat insulation

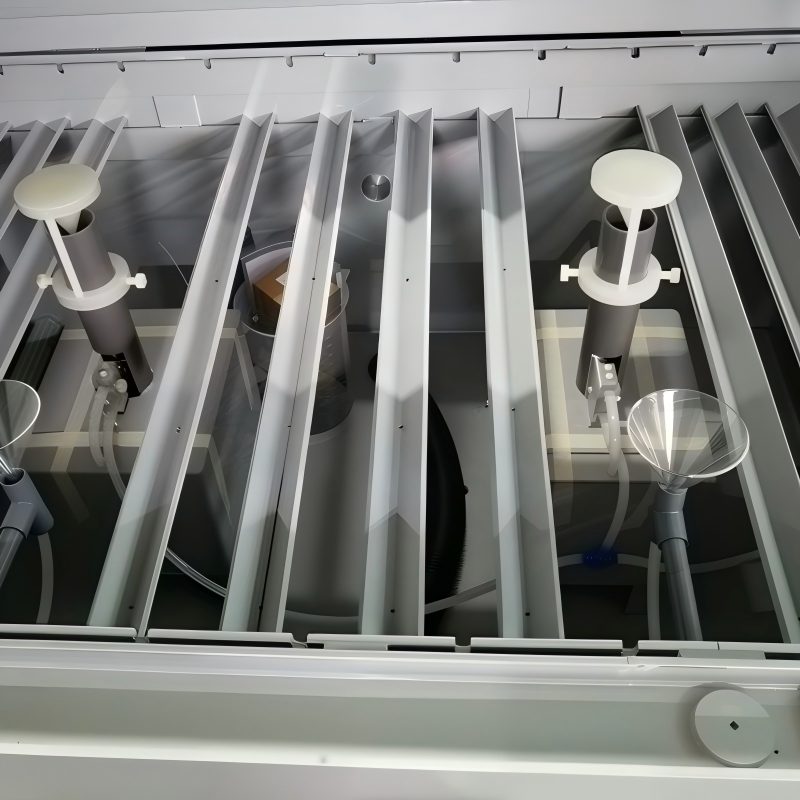

  • Adjustable-angle ABS sample bracket for even fog coverage
  • Pure titanium heating tube, long service life and strong corrosion resistance


Control & Safety System

  • High-precision digital temperature controller with automatic temperature correction
  • Independent over-temperature protection device to avoid equipment damage
  • OMRON high-precision timer, supporting long-cycle timing
  • Multiple safety protection: low water alarm, overheating protection, leakage prevention
  • Built-in defogging system to clean residual salt mist after testing
  • Anti-corrosion circuit board coating for stable long-term operation


Standard Configuration & Optional Accessories

Standard Package

  • Main salt spray test chamber
  • Salt solution storage tank & humidifying tower
  • 1 main nozzle + 1 spare nozzle
  • Fog collector and adjustable sample holder set
  • English operation manual + factory calibration certificate

Optional Upgrade

  • Data printing device
  • Remote monitoring software
  • Extra spare nozzles
  • External exhaust system
  • Customized non-standard sample brackets


Why Choose Top Test

  • Direct factory sales, cost-effective price and strict quality inspection
  • Support OEM / ODM customization: logo, color, software language and appearance
  • Over 1,000 sets of corrosion testing equipment exported globally
  • Free pre-sales sample test and real-time video demonstration
  • 4-hour rapid after-sales response, global spare parts supply


FAQ

1. What is the difference between NSS, ACSS and CASS?

  • NSS (Neutral Salt Spray): For conventional corrosion detection of coatings and anti-rust layers.
  • ACSS (Acetic Acid Salt Spray): Used for accelerated testing of decorative electroplated layers such as copper, nickel and chromium.
  • CASS (Copper-Accelerated Salt Spray): High-intensity accelerated test for aluminum anodized parts and heavy-duty protective coatings.

2. What international standards does the chamber comply with?

It fully meets ASTM B117, ISO 9227, JIS Z 2371, IEC 60068-2-11, DIN 50021 and GB/T 2423.17. Custom parameters for special standards are available.

3. How to prevent the spray nozzle from clogging?

Adopt imported Bernoulli anti-crystallization glass nozzle. Use distilled water to prepare salt solution, clean the nozzle with warm water after each test, and replace consumable nozzles regularly. One spare nozzle is included in the standard package.

4. Can the machine run continuously for several days?

Yes. Equipped with automatic water replenishment, large-capacity salt water tank and stable heating system, it supports 96h, 168h and long-term uninterrupted continuous testing.

5. Can you customize sample holders?

Yes. We provide personalized customized brackets according to your product size, shape and test quantity requirements.

6. What is the warranty policy?

24-month full machine warranty (excluding consumables such as nozzles). Lifetime free technical support, including video guidance, remote debugging and global spare parts delivery.

7. How to ship the equipment?

The whole machine is packed in export wooden box with anti-rust treatment, suitable for sea freight and air freight. We support DHL, FedEx, UPS and designated forwarder delivery.

8. Is sample testing available before purchase?

Yes. We provide free video on-site testing, you can send sample information, and we will complete the corrosion test and share test videos and reports.

9. How to select the correct chamber size?

You only need to provide the maximum sample size, daily test quantity and required test standards, and our professional engineers will recommend the most suitable model for you within 24 hours.
