Needle flame tester IEC 60695-11-5
The needle flame tester simulates small flames caused by internal faults, assessing material resistance to ignition. Unlike the horizontal and vertical flame chamber (which tests overall flammability) and the glow-wire tester (which simulates heated component risks), it focuses on resistance to small flames. Together, these three instruments form a comprehensive fire safety testing system for electrical and electronic products, widely used for connectors, PCBs, and appliances, complying with IEC 60695-11-5 and GB/T 5169.5.

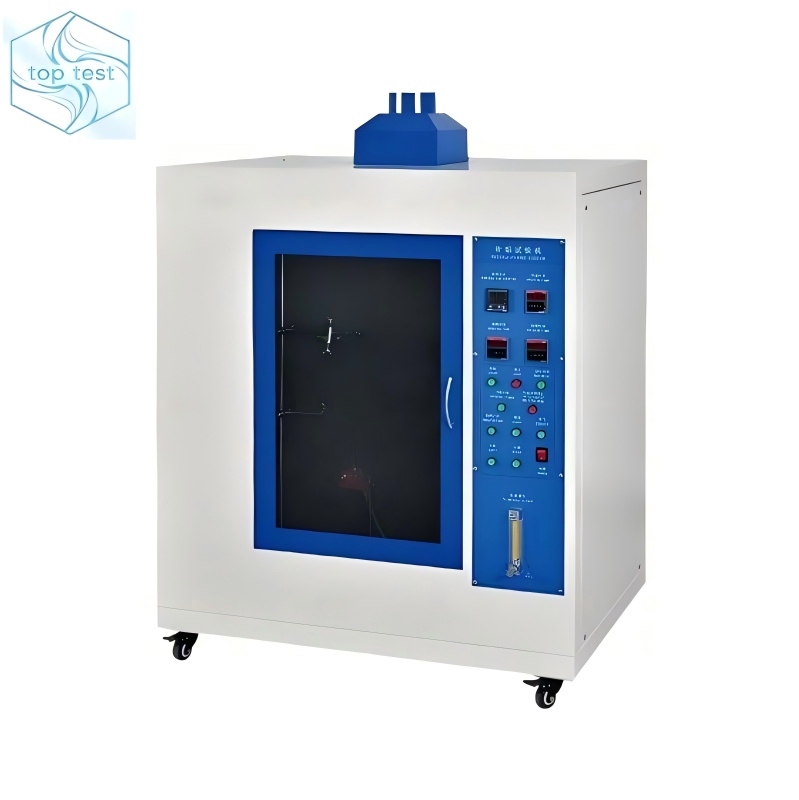

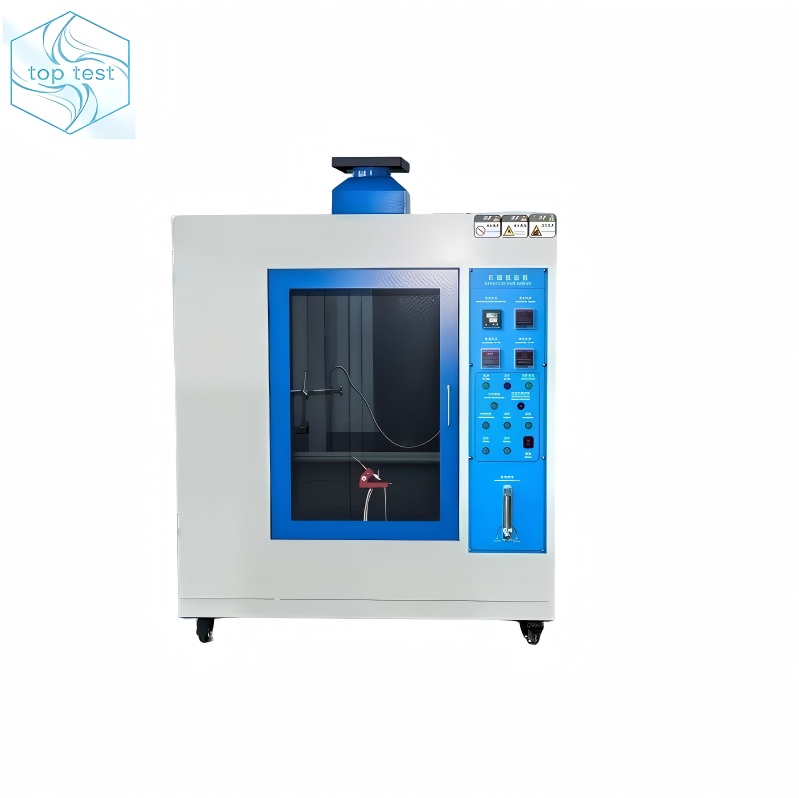

Needle Flame Tester Flame Testing Equipment
As a professional manufacturer of fire safety testing equipment, our high-quality needle flame tester for CE certification, also named needle flame testing machine for IEC 60695-11-5, is specifically designed to meet global product safety certification requirements. This professionalneedle flame test equipment for electrical product testing is widely used in industries such as household appliances, IT & AV equipment, lighting, power tools, and electronic components. Ourneedle flame testing device for material flammability test simulates small flames caused by internal faults (such as short circuits) of electrical products, effectively evaluating the ignition risk of materials and components, helping your products pass CE, CCC, UL, and IEC certifications smoothly and enter the global market.
Product Overview
The Needle Flame Tester for product R&D and quality control, a core type of needle flame test apparatus for global certification, is a standardized testing device that complies with international and national standards, focusing on testing the flammability of materials when exposed to small-scale flames. As essential needle flame testing equipment for export products for product R&D, quality control, and safety certification, it ensures that your products meet the strictest fire safety requirements in different regions.
Core Features & Technical Parameters
- Burner Specification: Our needle flame testing machine for plastic flammability test is equipped with a needle-shaped burner with inner diameter 0.5mm±0.1mm, outer diameter ≤0.9mm, ensuring stable flame output for accurate testing.
- Flame Control: The flame height of our needle flame test equipment for small flame ignition test is adjustable to 12mm±1mm, with temperature rise from 100℃±2℃ to 700℃±3℃ in 23.5s±1s, fully meeting standard requirements for reliable test results.
- Operation Control: This needle flame testing device for household appliance certification is equipped with digital time controller (0–999.9s adjustable), 45° flame application angle, and automatic flame application/removal mechanism, making the needle flame test apparatus for IT equipment testing easy to operate and accurate in testing.
- Safety Design: Our needle flame tester for laboratory quality control adopts a closed test chamber with windproof, explosion-proof, and exhaust functions, ensuring safe testing environment; it is also equipped with sample fixture and ignition bedding (cotton/silk paper) for comprehensive test evaluation.
- Power Supply: The needle flame testing equipment for North American market uses AC220V/50Hz (customizable for 110V/60Hz for North American market); Gas Source: 95% butane or propane (easy to obtain globally), making the customizable needle flame testing machine adaptable to different markets.
Technical Parameters
| |
| Needle-shaped, inner diameter 0.5mm±0.1mm, outer diameter ≤0.9mm |
| |
| 100℃±2℃ to 700℃±3℃ in 23.5s±1s |
| |
| |
| AC220V/50Hz (customizable 110V/60Hz) |
| |
| Closed, windproof, explosion-proof, with exhaust function |
Compliant Standards (Global Certification)
Our Needle Flame Tester fully complies with the following international and national standards, ensuring the accuracy and authority of test results, and helping your products pass various certifications smoothly:
- International Standards: IEC 60695-11-5, IEC 60335-1, IEC 62368-1, IEC 60598-1, IEC 62841-1, IEC 61010-1, ISO 1210
- European Standards: EN 60695-11-5, EN 60335-1, EN 62368-1, EN 60598-1
- Chinese Standards: GB/T 5169.5, GB 4706.1, GB 4943.1, GB 7000.1, GB 3883.1, GB 4793.1
- North American Standards: UL 62368, UL 746A, UL 60335
Application Scenarios
Our Needle Flame Tester is widely used in the following industries and products, providing professional flame retardant testing solutions for your business:
- Household Appliances: Refrigerators, washing machines, kitchen appliances, air conditioners, small household appliances, etc.
- IT & AV Equipment: Computers, mobile phones, printers, audio-visual equipment, communication devices, etc.
- Lighting Products: LED lamps, fluorescent lamps, downlights, outdoor lamps, etc.
- Power Tools: Handheld electric drills, grinders, electric saws, etc.
- Electronic Components & Materials: Insulating materials, engineering plastics, PCBs, wires and cables, etc.
Why Choose Our Needle Flame Tester?
- Global Standard Compliance: Fully meets IEC, EN, GB, UL standards, suitable for export products to various countries and regions.
- High Accuracy & Stability: Precision-manufactured burner and advanced control system ensure consistent and reliable test results.
- Easy Operation: Digital control panel, automatic operation, reducing manual errors and improving testing efficiency.
- Customizable Service: We can customize power supply, gas system, and test accessories according to your market and product needs.
- Professional After-Sales: Provide global technical support, installation guidance, and maintenance services to solve your worries.
Whether you are engaged in product R&D, quality inspection, or certification application, our Needle Flame Tester will be your reliable partner in fire safety testing. Contact us today to get a customized quotation and technical solution!
