IPX9K High Temprature Pressure Waterproof Test Equipment
ISO20653 high temperature and pressure water Jet test chamber IPX9K is applied to electrical and electronics, electric appliances, auto parts and other accessories enclosure and sealing elements under the condition of high temperature and high pressure and high flow of water, the ability of its enclosure to prevent water penetration. Top Test ingress protection waterproof test machine is designed and manufactured in accordance with the test requirement of latest version standard ISO20653(High temperature and high pressure water jet test).
IPX9/IPX9K High Temperature High Pressure Rain Test Chamber | Waterproof Test Equipment
Welcome to our IPX9 rain test chamber product page. Top Test IPX9K high temperature pressure water test equipment is a professional waterproof testing equipment designed to simulate high-pressure, high-temperature water jet conditions, helping you verify the waterproof performance of your products and ensure they meet international standards. As a reliable IPX9 waterproof testing equipment manufacturer, we provide customized solutions to meet the diverse testing needs of various industries.
Product Overview

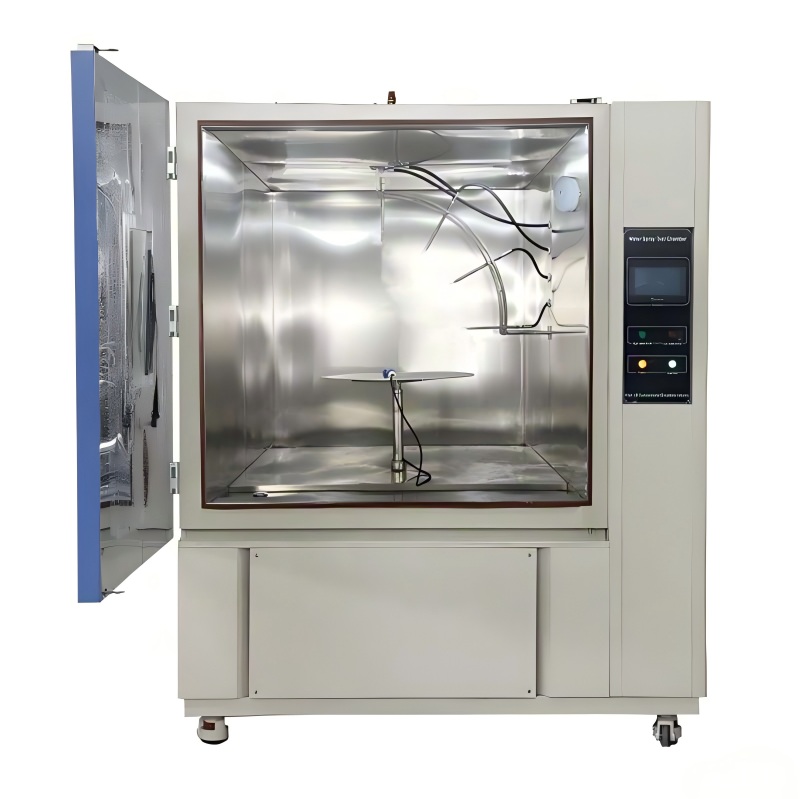

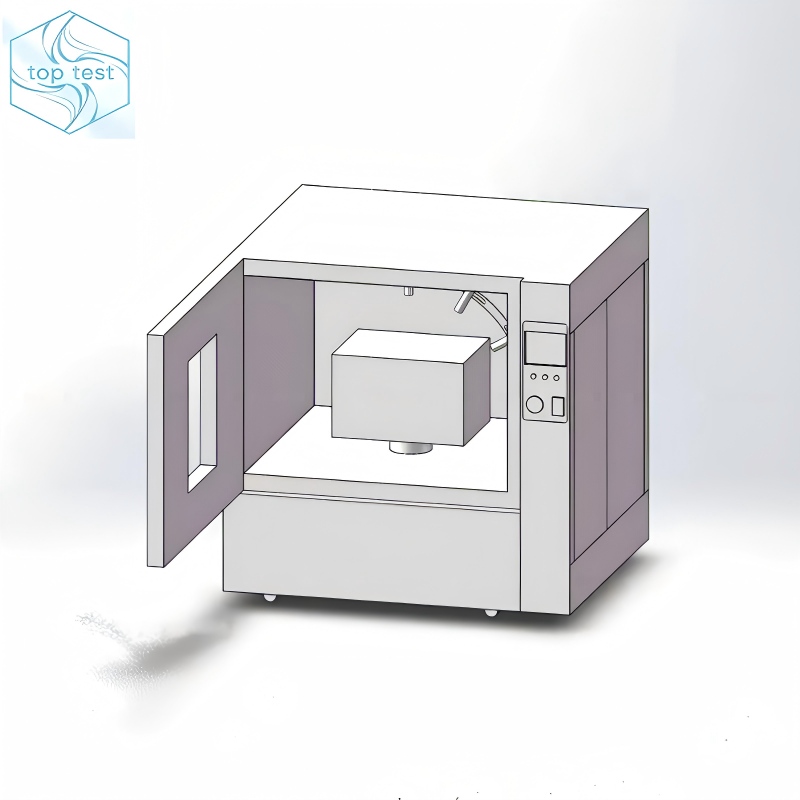

Top Test IPX9 high pressure water spray test chamber is engineered to evaluate the water resistance of product enclosures, complying with international standards such as IEC 60529, DIN40050-9, ISO20653 and GB/T 4208-2017. The IPX9K jet spray chamber simulates extreme water spray conditions, such as those encountered during high-pressure cleaning processes, which is widely used in electronics, automotive, military, and consumer product industries. It is mainly used to test the anti-rain and waterproof performance of electronic and electrical products, automotive parts, solar lights, garden lights, and other products, ensuring their physical integrity and performance under harsh water exposure conditions.
Core Features & Advantages
- Compliant with International Standards: The IPX9 test chamber strictly meets DIN40050-9, ISO20653, IEC 60529 and GB/T 4208-2017 standards, ensuring accurate and reliable test results that are recognized globally. It is specially designed for the inspection of IEC enclosures of electrical equipment (IP supplementary code test).
- Precise Test Parameters: Our IPX9 test chamber 80℃ high temperature, with adjustable water spray temperature from ambient to 88℃. The jet pressure reaches 80～100bar (8000～10000kPa), and the water flow rate is 14～16L/min, which fully meets the strict requirements of IPX9/IPX9K testing. It is equipped with 4 fan jet nozzles with spray angles of 0°, 30°, 60°, 90°, each angle sprays water for 30 seconds, with a total test time of 120 seconds.
- High-Quality Material & Structure: The chamber body is made of SUS304 stainless steel, with 3mm thick inner tank and 2mm thick outer tank, which is corrosion-resistant, high-temperature resistant and durable. The water tank is also made of SUS304 stainless steel with thermal insulation, ensuring stable water temperature during testing. The spray pipe adopts high-pressure stainless steel hydraulic pipe, and the spray system is composed of Italian high-pressure high-temperature water pump, pressure gauge and solenoid valve for stable performance.
- Intelligent Control System: Equipped with a self-developed PLC touch screen control system with English operation interface, which can easily set and adjust test parameters such as water temperature, pressure, flow rate, spray time and interval. The automated operation reduces human error and ensures consistent test results across repeated tests. It also has safety protection functions such as leakage protection, water shortage protection, short circuit protection and over-temperature protection.
- Humanized Design & Customization: The test chamber is equipped with a turntable with adjustable speed (5rpm or 1～10r/min adjustable), which can rotate the sample to ensure uniform spray coverage. The turntable diameter and load can be customized according to customer needs. The water circulation system ensures the recycling of water sources, reducing water consumption and environmental protection. The product dehydration buffer zone is designed to facilitate the treatment of samples after testing.
Main Technical Specifications
| |
|---|
| TT-IPX9-800L (Customizable) |
| DIN40050-9, ISO20653, IEC 60529, GB/T 4208-2017 |
| 800×800×800mm (W×H×D, Customizable) |
| 1300×1750×1000mm (W×H×D, Customizable) |
| SUS304 Stainless Steel (Inner 3mm, Outer 2mm) |
| 4 nozzles IPX9 test chamber (0°,30°,60°,90°) |
| IPX9K test chamber 8000-10000kPa pressure (80～100bar) |
| IPX9 rain test chamber 14-16L/min flow rate |
| IPX9 test chamber 80℃ high temperature (80℃±5℃, Adjustable) |
| IPX9 test chamber 5rpm turntable (1～10r/min, Adjustable) |
| 30s per angle, total 120s (1min～9999min, Adjustable) |
| AC 380V 50Hz, 3-phase 5-wire, Total Power约7KW |
| Equipped with water circulation system, reusable water source |
Application Scenarios
Our IPX9 waterproof test chamber is widely used in various industries that require high waterproof performance testing. It is especially suitable for:
- Automotive Industry: IPX9 test chamber for automotive parts, including IPX9K test equipment for car lamps, Top Test IPX9K test chamber for automotive wiper, automobile moving window motors, engine parts, on-board electronic equipment and other automotive components, helping to verify their waterproof performance under high-pressure car washing conditions.
- Electronic & Electrical Industry: IPX9 waterproof test chamber for electronic products, such as motors, electronic controllers, instruments, switches, sensors and other electrical equipment, ensuring their normal operation in humid or water-exposed environments.
- Lighting Industry: IPX9 test chamber for solar lights garden lights, buried lights, LED lights and other lighting products, testing their waterproof performance in outdoor environments.
- Other Industries: IPX9 test chamber for military electronics, underwater equipment, hardware tools,wire cables and other products that need to withstand high-pressure and high-temperature water impact.
Why Choose Our IPX9 Rain Test Chamber?
- Professional Standards Compliance: Fully meets international IPX9/IPX9K testing standards, ensuring test results are authoritative and recognized globally.
- High Precision & Stability: Advanced control system and high-quality components ensure stable test parameters and accurate test results.
- Customizable Solutions: We can customize the test chamber size, parameters, and functions according to your specific testing needs.
- Reliable After-Sales Service: Provide 24-hour global after-sales service, 1-3 years warranty, and professional technical support to solve your problems in time.
- Cost-Effective: High-quality materials and reasonable structure design reduce maintenance costs and extend the service life of the equipment.
