IPX9K High Pressure High Temperature Water Spray Test Chamber
We specialize in designing and producing high-quality IPX9K test chambers that fully comply with global standards. Top Test IPX9K high pressure high temperature water spray test chamber is engineered to simulate extreme real-world conditions, helping your products pass rigorous waterproof testing, obtain international certifications, and gain a competitive edge in the global market. Whether you are in the automotive, electronics, or industrial sector, our reliable testing equipment ensures your products can withstand high-pressure, high-temperature water jets and meet the highest level of water ingress protection requirements.
Product Overview

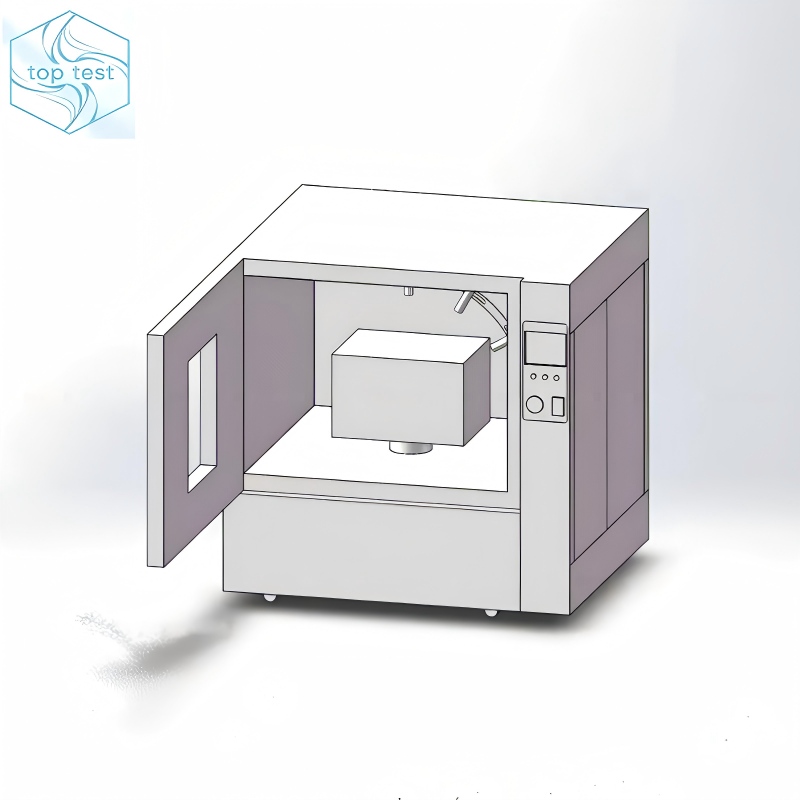

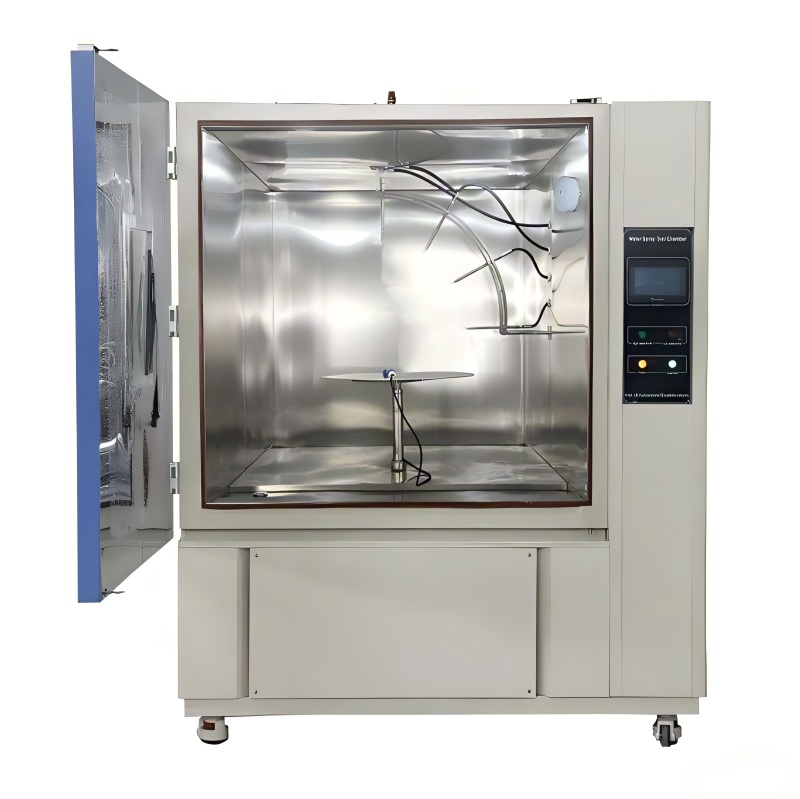

The IPX9K test chamber is a precision testing apparatus specifically designed to evaluate the water resistance of products under high-pressure and high-temperature water jet conditions, adhering to the most stringent IPX9K waterproof rating standards. As the highest level of waterproof testing in the IP rating system, it simulates real-world scenarios such as industrial high-pressure cleaning, automatic car washes, and extreme heavy rain, ensuring products remain functional and intact even in harsh wet environments. Widely applied in automotive, electronics, military, industrial, and marine industries, it provides reliable testing solutions for product R&D, factory quality inspection, and third-party certification. With high precision, stable performance, and fully customizable options, Top Test IPX9K test chamber can meet the diverse testing needs of small electronic components, large automotive battery packs, and everything in between.
Compliant Standards
Our IPX9K waterproof spray test chamber strictly complies with international, regional, and industry-specific standards, ensuring the authority and accuracy of test results—critical for your products to enter global markets including Europe, America, Asia, and the Middle East. All test results are recognized by global certification institutions, helping you avoid technical barriers and expand your market reach:
- International Standards: IEC 60529 (Ingress Protection Code), ISO 20653 (Road Vehicles - Protection Levels), DIN 40050-9 (German Automotive Industry Standard)
- American Standards: UL 50E, UL 1598, UL 153, UL 1573, UL 60950-1
- Chinese National Standard: GB/T 4208-2017 (equivalent to IEC 60529)
- Automotive Industry Standards: ISO 16750, VW 80000 (Volkswagen Standard), QC/T 417 (Chinese Automotive Industry Standard)
Core Technical Specifications
We offer multiple standard models and fully customizable solutions to adapt to different test specimens, site conditions, and regional requirements. The following are the standard technical parameters, and all specifications can be tailored according to your specific needs to ensure perfect compatibility with your testing scenarios:
| | |
| 8000-10000 kPa (80-100 bar) | Stepless adjustable, high-precision pressure control, stable output |
| Ambient ~ 88℃ (adjustable), standard 80±5℃ | PID intelligent temperature control, supports instant thermal shock simulation, temperature accuracy ±0.5℃ |
| | Digital real-time monitoring, flow stability, no fluctuation |
| 4 nozzles (Φ0.8mm, laser-drilled) | High precision, stable jet, made of hardened HRC 62 steel for long service life |
| | Cycled spraying, 30s per angle (total 120s), adjustable cycle time |
| | Manually adjustable, easy to adapt to different specimen sizes |
| Diameter 400-600mm, speed 4-10 rpm (adjustable) | Load-bearing up to 50kg, SUS304 stainless steel, bidirectional rotation for uniform spray coverage |
| 1000×1000×1000mm (standard) | Customizable according to specimen size, supports open-type design for oversize products |
| | Customizable for different regions (110V/60Hz, 220V/50Hz, etc.) |
| Leakage, water shortage, over-temperature, over-current, phase sequence protection | Multiple safety interlocks, ensures safe operation and protects equipment and operators |
Key Features & Advantages
1. High Precision & Standard Compliance
The nozzle holes adopt advanced laser processing technology to maintain strict dimensional accuracy, ensuring compliant water jet delivery and improving test repeatability. Built-in ISO 20653 and IEC 60529 standard presets eliminate manual conversion errors, ensuring standardized, traceable, and repeatable testing results that are recognized by global certification institutions such as TÜV, Intertek, and SGS. This helps your products smoothly pass CE, UL, 3C, and other international certifications.
2. Durable & Reliable Structure
The inner chamber is made of 1.2mm thick SUS304 stainless steel with a fully welded structure, featuring excellent sealing, corrosion resistance, and crack resistance—suitable for long-term high-temperature and high-pressure operation. The outer shell is made of 1.5mm cold-rolled steel with brushing, polishing, and anti-rust painting treatment, enhancing durability and scratch resistance. Equipped with a double-layer insulating glass observation window with a wiper, it allows real-time observation of the test process while ensuring internal pressure stability and preventing fogging visibility.
3. Intelligent Control System
Equipped with a 7-inch programmable color LCD touch screen controller with Ethernet connection, supporting one-click parameter setting, real-time monitoring of test data (pressure, temperature, flow rate), and automatic recording of test reports. The system supports data export and remote control, making operation simple and efficient—even for non-professional operators. It also has fault alarm and automatic shutdown functions, reducing operational errors and ensuring testing safety and efficiency.
4. Fully Customizable Solutions
We provide tailor-made solutions according to your specific testing needs, including chamber size, load-bearing capacity, spray distance, test parameters, and additional functions (such as sample power supply interface, automatic water supply and drainage system, water purification system, and dust-proof design). Whether you need to test small electronic components, large automotive battery packs, or oversized industrial equipment, we can customize the most suitable test chamber for you, perfectly matching your testing scenarios and budget.
5. Comprehensive Global After-Sales Service
We offer a 3-year warranty and lifetime technical support, providing professional installation, commissioning, operator training, and maintenance services worldwide. Our after-sales team responds within 24 hours to solve your technical problems and provide spare parts supply in a timely manner. We also have overseas service centers in Europe, America, and Southeast Asia, ensuring fast and efficient after-sales support, and guaranteeing the long-term stable operation of your test equipment. We have successfully provided customized solutions for many automotive and electronic manufacturers, winning high recognition for our product quality and service.
Application Industries & Test Objects
Our IPX9K test chamber is widely used in various industries that require high-level waterproof testing, helping manufacturers ensure product reliability, comply with market regulations, and enhance brand credibility:
1. Automotive & New Energy Vehicles (Main Application)
Test objects: EV battery packs, BMS (Battery Management System), OBC (On-Board Charger), DC-DC converters, motors, ECUs (Electronic Control Units), headlights, taillights, fog lights, sensors (radar, camera, tire pressure), charging ports, wiring harnesses, and connectors. It simulates high-pressure water jet cleaning during vehicle washing and extreme rain conditions, ensuring the safety, durability, and normal operation of automotive components—critical for electric vehicles and off-road vehicles.
2. Charging Piles & Energy Storage Equipment
Test objects: AC/DC charging piles, charging guns, charging cables, energy storage converters (PCS), outdoor energy storage cabinets, and photovoltaic inverters. Ensures products can withstand outdoor rain, high-pressure cleaning, and harsh environmental conditions without water ingress, guaranteeing the safety and stability of energy storage and charging equipment.
3. Outdoor Electronics & Security Equipment
Test objects: Outdoor surveillance cameras (dome cameras, bullet cameras), outdoor base stations, RRU (Remote Radio Unit), outdoor LED lights, traffic signals, outdoor broadcast speakers, and outdoor communication equipment. Ensures stable operation in harsh outdoor environments such as heavy rain, high-pressure water spraying, and high humidity, reducing product failure rates.
4. Industrial & Agricultural Machinery
Test objects: Excavator and loader control modules, agricultural machinery sensors and meters, marine deck electrical equipment, and food processing equipment electrical components. Withstands high-pressure water jets and wet working environments, improving equipment durability and reducing maintenance costs. It is also widely used in military and defense equipment testing, ensuring critical components remain operational in extreme conditions.
