IPX1-IPX9 Waterproof Test Equipment
IPX7 Waterproof Test Equipment / Immersion Test Chamber

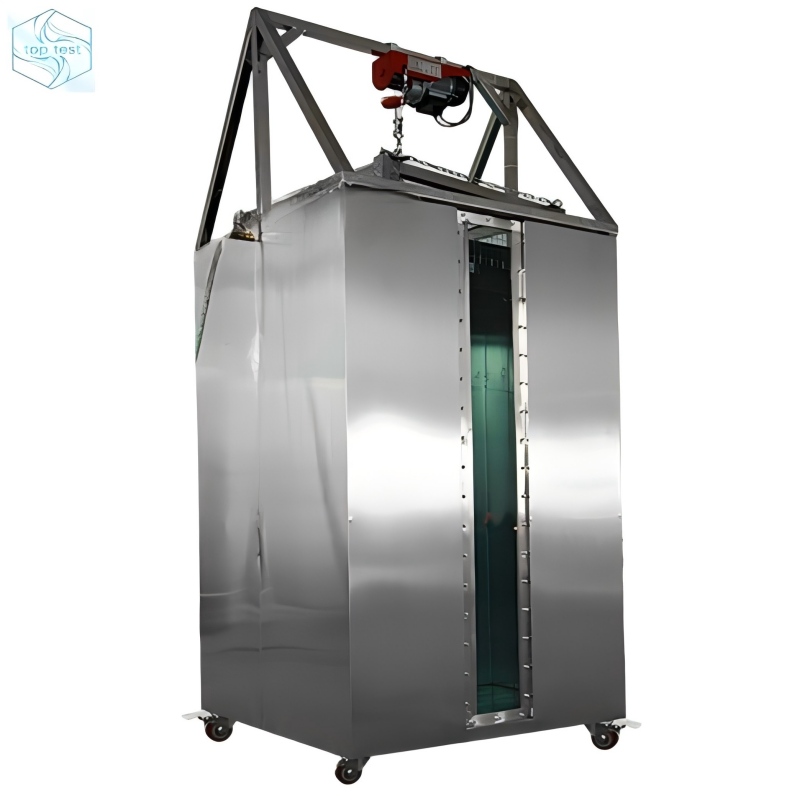

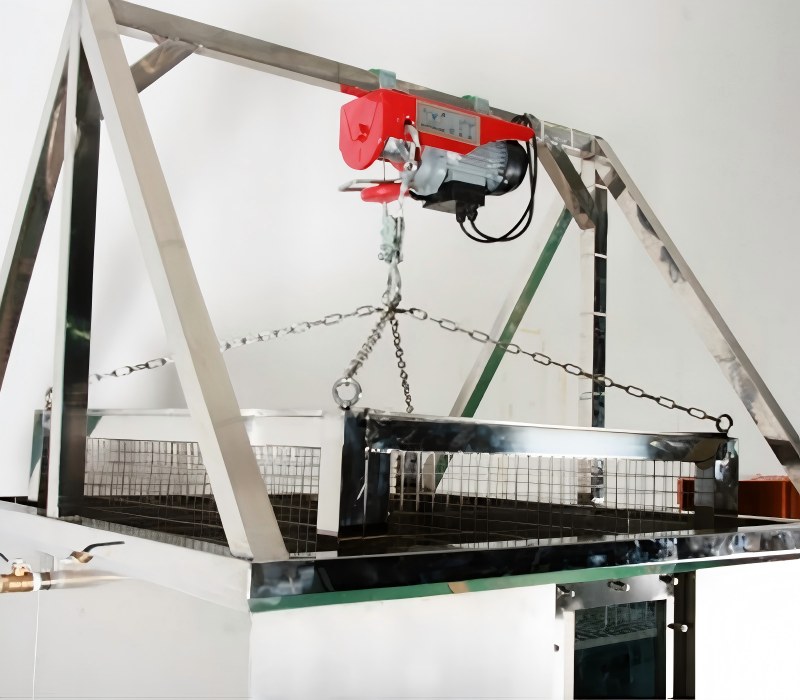

IPX7 test equipment is designed to test a product's IPX7 waterproof rating. It applies to electronic components, outdoor lighting, mobile phone casings, auto parts and other samples. With a box-type structure, it has no site restrictions; made of 304# stainless steel and equipped with an electric hoist, it makes testing more convenient.
IPX7 Water Immersion Pressure Tank Tester
1. Compliance Test Standards
This equipment is designed and manufactured in strict accordance with mainstream international and Chinese safety standards, fully meeting the IPX7 waterproof immersion test requirements:
- IEC60529:2001 – Degrees of protection provided by enclosures (IP Code)
- GB4208-2008 – Enclosure protection class (IP code), Clause 14.2.7
- GB 7000.1 – Luminaires Part 1: General Requirements and Tests, Clause 9.2.8
- Supplementary Standard: IEC60529:1989+A1:1999
2. Product Application Scope
This IPX7B immersion test chamber is used to simulate standard water immersion environments, verify the waterproof performance and physical reliability of products under submerged conditions. It is widely applied in R&D testing, quality control, design optimization and factory pre-shipment inspection for various industries.
Typical Test Samples
- Electrical and electronic products, electronic components
- Lamps, lighting fixtures and outdoor lighting equipment
- Electrical cabinets, control boxes and distribution equipment
- Automotive, motorcycle parts and related components
Test Purpose: Evaluate whether the product’s waterproof performance meets design and application standards, providing data support for product improvement and certification.
3. Core Technical Parameters
Specification Item | TT-IPX7B-108L | TT-IPX7B-432L | TT-IPX7B-960L | TT-IPX7B-1200L | TT-IPX7B-1728L |
|---|---|---|---|---|---|
Internal Dimensions (L × W × H) | 300 × 300 × 1200 mm | 600 × 600 × 1200 mm | 1000 × 800 × 1200 mm | 1000 × 1000 × 1200 mm | 1200 × 1200 × 1200 mm |
External Dimensions (L × W × H) | 360 × 360 × 1300 mm | 660 × 660 × 1300 mm | 1080 × 880 × 1300 mm | 1080 × 1080 × 1300 mm | 1280 × 1280 × 1300 mm |
Tank Plate Thickness | 1.5 mm | 1.5 mm | 1.5 mm | 2.0 mm | 2.0 mm |
Maximum Water Depth | 1.2 m | 1.2 m | 1.2 m | 1.2 m | 1.2 m |
Water Level Adjustment | Manual Adjustment | Manual Adjustment | Manual Adjustment | Manual Adjustment | Manual Adjustment |
Water Level Display | Stainless Steel Ruler (1 mm Graduation) | Stainless Steel Ruler (1 mm Graduation) | Stainless Steel Ruler (1 mm Graduation) | Stainless Steel | |
4. Key Product Features
- Professional IPX7 Testing Compatibility: Specially designed for IPX7 waterproof immersion testing of various products, fully compliant with IEC60529, GB4208 and GB7000.1 test standards.

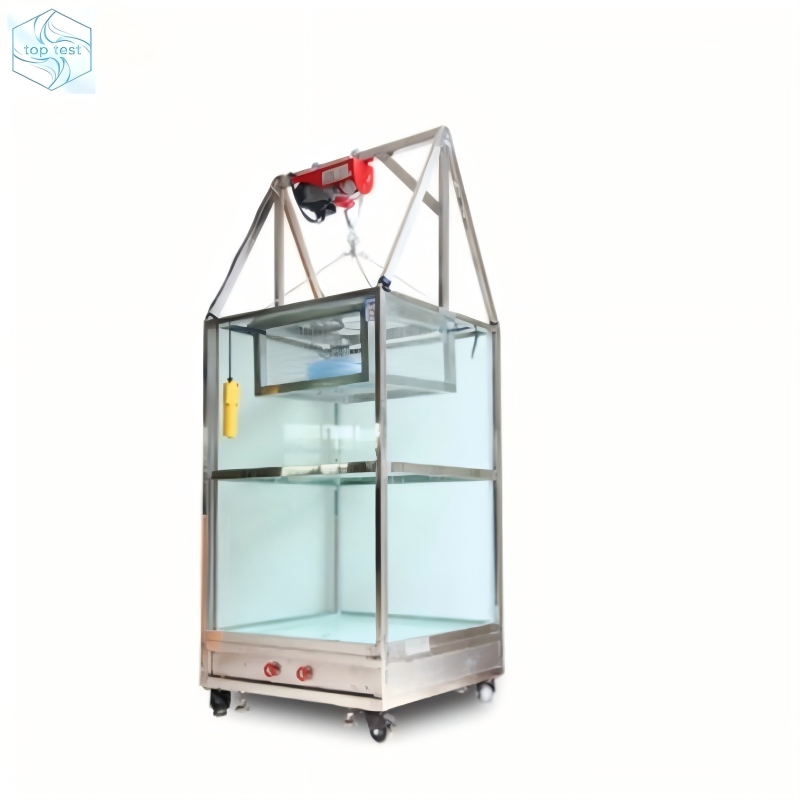

- Stainless Steel Support Rack: Equipped with a sturdy stainless steel bracket to fix and support the glass water tank, ensuring stable structure and reliable operation during testing.
- Hidden Water Pipeline Design: Water inlet and outlet pipes are arranged under the glass tank, hidden inside the stainless steel base. Two external water valve switches are designed on the front of the base, one for water inlet and the other for drainage.
- Accurate Water Level Display: Configured with a precise stainless steel ruler to clearly display the real-time water level for accurate test control.

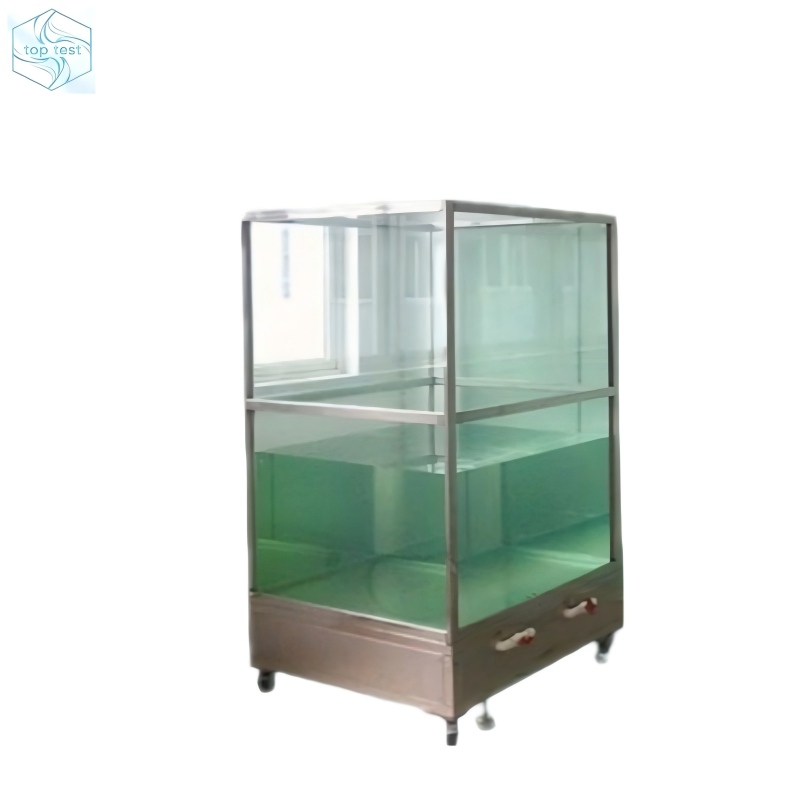

- Full Transparent Tempered Glass Tank: The water tank is made of 5mm tempered glass, fully transparent for observing the test status of samples; it is durable and watertight for long-term use.
- Movable & Fixed Chassis: The stainless steel chassis is fitted with heavy-duty casters and foot cups, making the equipment easy to move and fix stably.
