IPX5 IPX6 Water Jet Testing Nozzle

IPX5 IPX6 waterproof jet test nozzle is designed to verify protection against water jets, used to inspect water ingress protection and confirm the protection degrees marked by the second characteristic numeral: 5 for "Protected against water jets" and 6 for "Protected against powerful water jets".

Contact Us

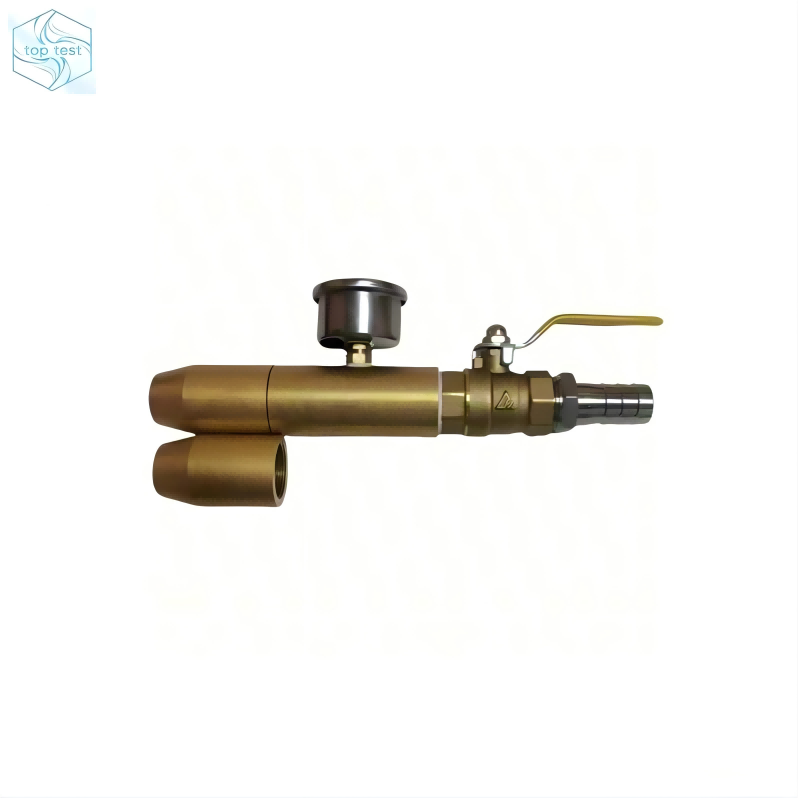

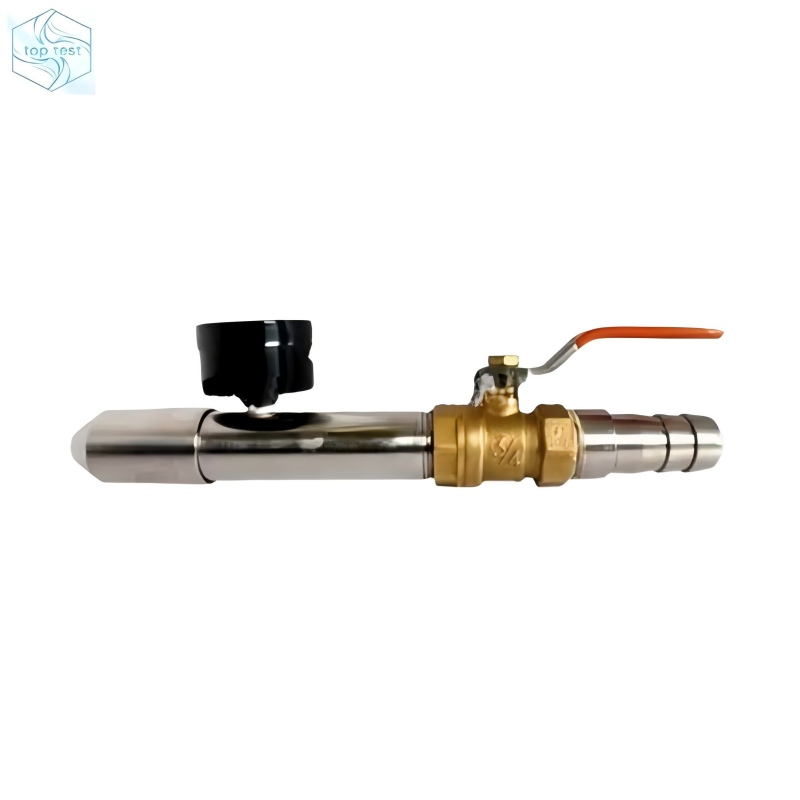

IP Waterproof Test Equipment IPX5 IPX6 Handheld Jet Nozzle

Overview:
This handheld jet nozzle is a dedicated accessory for IP waterproof test equipment, designed to conduct IPX5 and IPX6 water jet protection tests in line with IEC 60529 & GB/T 4208 standards.

Core Specifications

  • IPX5 Nozzle: Φ6.3mm opening, rated water flow 12.5L/min, for low-pressure water jet testing
  • IPX6 Nozzle: Φ12.5mm opening, rated water flow 100L/min, for high-pressure powerful water jet testing
  • Material: SUS304 stainless steel, corrosion-resistant and durable

Features:
  • Handheld ergonomic design
  • Adjustable spray angle
  • Omnidirectional water spraying
  • Suitable for on-site testing of large or irregular samples


Application

Used to verify product water ingress protection, prove IPX5 "Protected against water jets" and IPX6 "Protected against powerful water jets" ratings, widely applied for on-site waterproof testing of outdoor lighting, auto parts, electronic devices and more.
