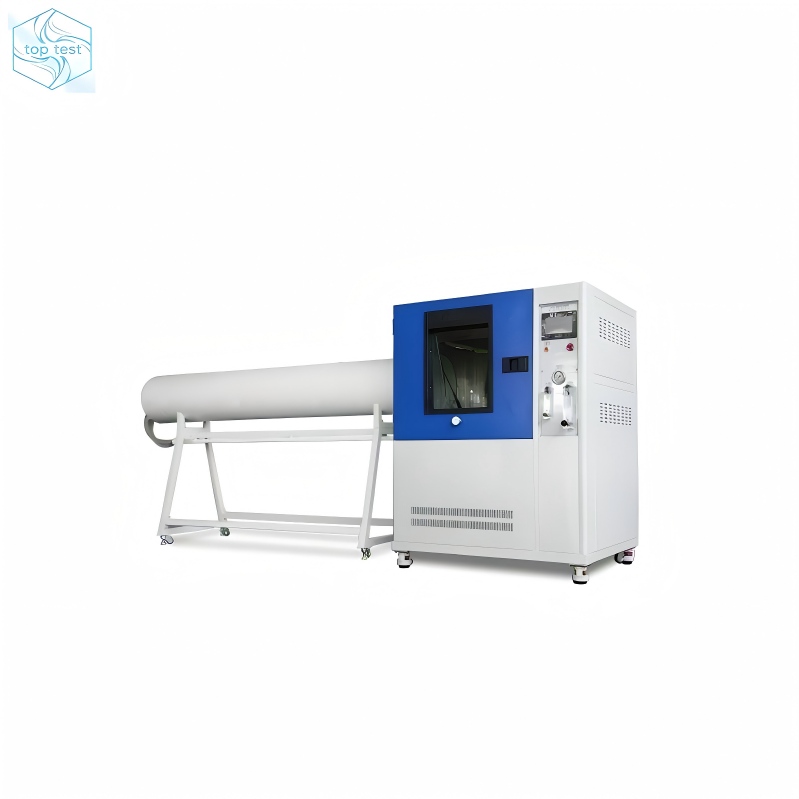

Box Type IPX5/IPX6 Water Spray Test Chamber IEC 60529
Overview
This box type IPX5/IPX6 water spray test chamber fully complies with IEC 60529 & GB/T 4208-2017 standards, equipped with IPX5 Φ6.3mm (10L/min) and IPX6 Φ12.5mm (100L/min) stainless steel nozzles, 0-99h59min adjustable timer, SUS304 stainless steel cabinet and 360° rotating sample turntable. Designed for waterproof performance testing of outdoor electronics, automotive parts, luminaires and electrical devices, it features stable performance, easy operation and reliable quality, ideal for factory QC, R&D and certification testing.
Equipment Structure
- Enclosed Box Cabinet: SUS304 stainless steel, anti-corrosion, anti-splash, easy to clean and drain

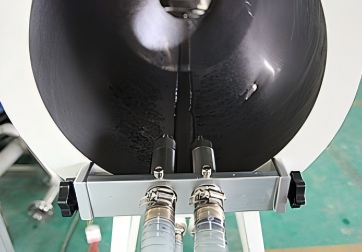

- Precision Nozzle Assembly: IPX5/6 dual nozzles, adjustable angle and height, omnidirectional spray coverage
- Pressure-Stabilized Water System: Built-in water tank, high-pressure water pump, pressure regulating valve, flow meter for stable output

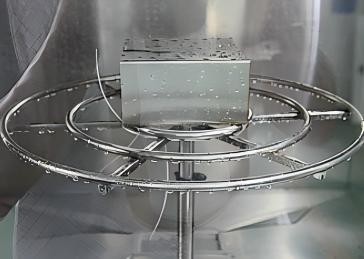

- 360° Rotary Turntable: Adjustable speed (1-5r/min), uniform sample spraying, no dead angle
- Intelligent Control System: PLC + touch screen, one-key mode switch, timing/pressure/flow adjustable
- Safety Protection Module: Water shortage alarm, overload protection, leakage protection, emergency stop
- Water Circulation System: Filtered recovery design, water-saving, suitable for long-term continuous testing
Key Technical Parameters
| | IPX6 Powerful Water Jet Test |
|---|
| Resist low-pressure water jets from any direction, no harmful water ingress | Resist high-pressure powerful water jets from any direction, no water penetration |
| Φ6.3mm Stainless Steel Nozzle | Φ12.5mm Stainless Steel Nozzle |
| 10L/min (Stable Pressure) | |
| | |
| Daily outdoor, light rainstorm, roadside water splash | Heavy rainstorm, ship deck, industrial water impact |
Applications
- LED Outdoor Lighting, Street Lamps & Floodlights
- Automotive Lamps, Electronics & Wiring Harnesses
- Security Cameras & Outdoor Communication Equipment
- Waterproof Household Appliances & Electrical Devices
- Third-Party Testing Labs, Factory QC & Product Certification
