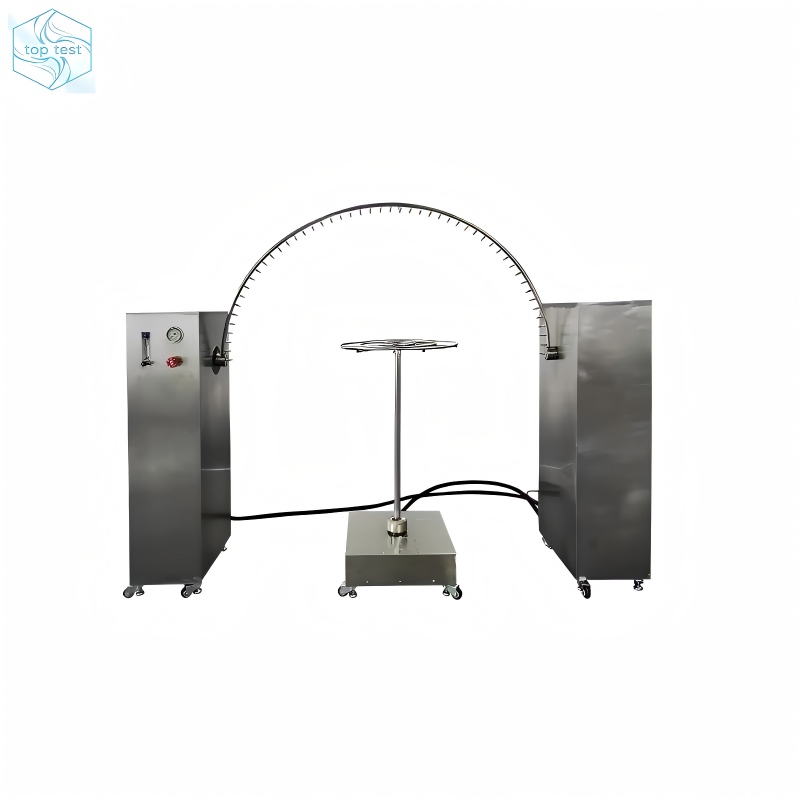

IPX34 Oscillating Tube Rain Test Device

The IPX34 oscillating tube rain test chamber is a core device specifically designed to simulate water spray and splash environments to test the IPX3 (waterproof) and IPX4 (waterproof) waterproof ratings of products. It is widely used for verifying the waterproof performance of outdoor electronics, lighting fixtures, automotive parts, home appliances, and other products.

Contact Us
IPX3-IPX4 Oscillating Tube Spraying And Splashing Water Test Device

Product description:

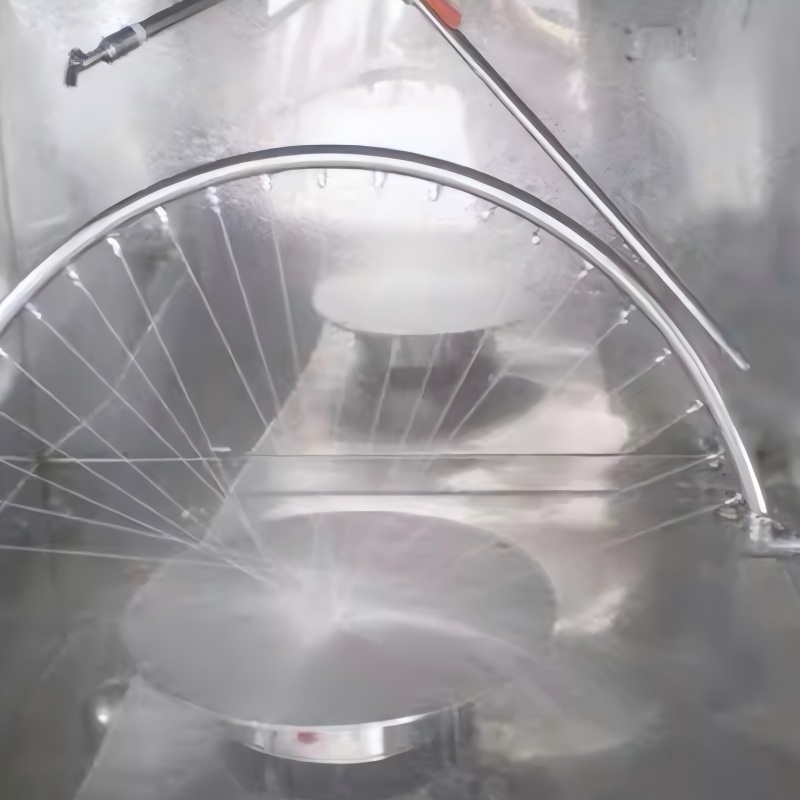

The oscillating tube comprehensive rain test equipment can perform IPX3 and IPX4 waterproof level tests. The product complies with the IEC60529:1989+A1:1999 standard and can accurately test the waterproof performance data of the product. At the same time, the oscillating tube rotates 360 degrees, which can fully detect the waterproof performance of the product. In addition, the entire test equipment is made of 304 stainless steel plate and can be used for a long time.

Core Function:
Simulates spraying and splashing environments to verify the waterproof sealing performance of the product enclosure and determine whether rain or splashing affects functionality, causes short circuits, or results in damage.
Standards:
IEC 60529 (Internationally recognized IP rating standards)

Applicable Products:
Outdoor lighting fixtures, security monitoring systems, vehicle-mounted equipment, household appliances, industrial controllers, outdoor electronic instruments, communication equipment, etc.

Features:
-Oscillating tube with spray nozzles for uniform water distribution -Adjustable spray angle from 0° to 180° for comprehensive testing
-Automatic oscillation control with adjustable speedDigital flow meter for precise water flow control
-Stainless steel construction for durability

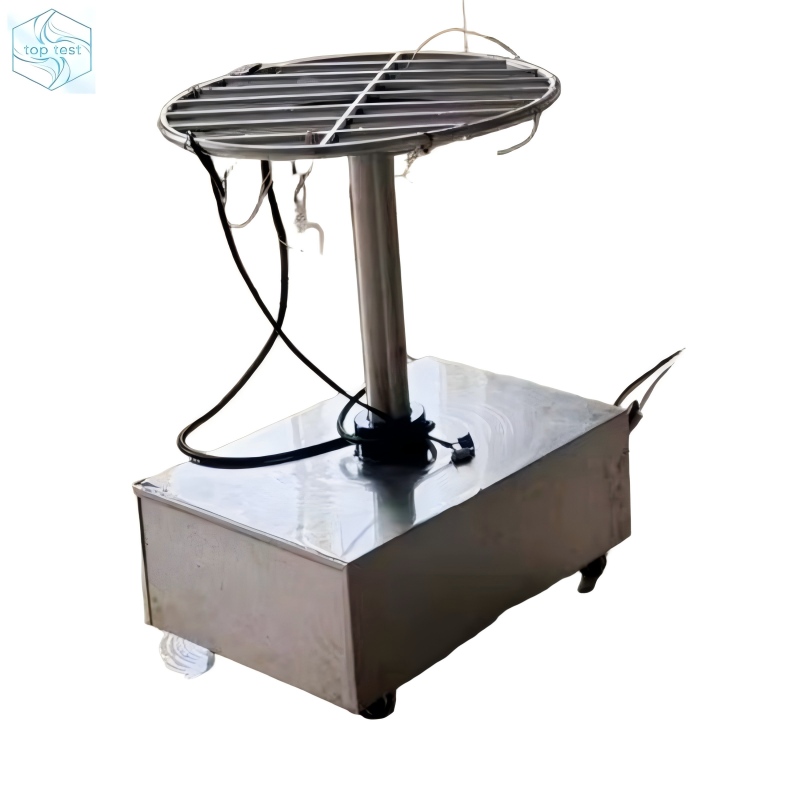

-Turntable with adjustable height and rotation speed
-Touch screen control panel for easy operation
-Automatic test duration control
-Water collection and recycling systemSafety features including emergency stop and over load protection


Technical parameters：

Model
IPX34C-1600
IPX34C-1400
IPX34C-1200
BND-IPX34C-800
Swing pipe size (mm)
R1600
R1400
R1200
R800
External dimensions (mm)
L4000*D3200*H2800
L3800*D3000*H2600
L3200*D2400*H2400
L2400*D800*H2000
Flow (L / mm))
0-10L/min
0-10L/min
0-6L/min
0-4L/min
Turntable Diameter Size (mm)
1000 (can customize,800,600,400,200 turntable)
Turntable height adjustable range
1750-2350mm
1750-2350mm
1350-1950mm
950-1550mm
Pendulum tube diameter (mm)
>15
15
Water pore size (mm)
0.4 mm
Pendulum tube angle
120º(IPX3), 350º(IPX4)or customize
Swing speed tube
120°(to and fro) 4S,360°(to and fro)

12S(accurate control)or customize
Swing pipe material
SUS304 stainless steel
Turntable speed test
1-5r/min(accurate control)
protective device
Leakage, water shortage, short circuit
Power supply (V)
220V
Power(KW)
1
Standards
IEC60529:1989+A1:1999,(IPX3,IPX4)
