IEC Test Finger Probe

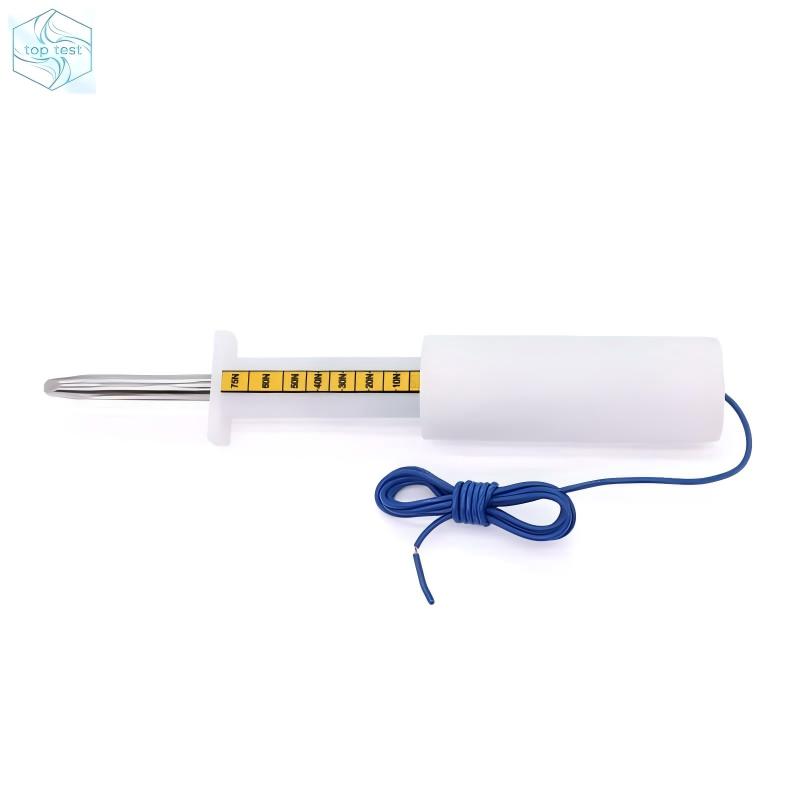

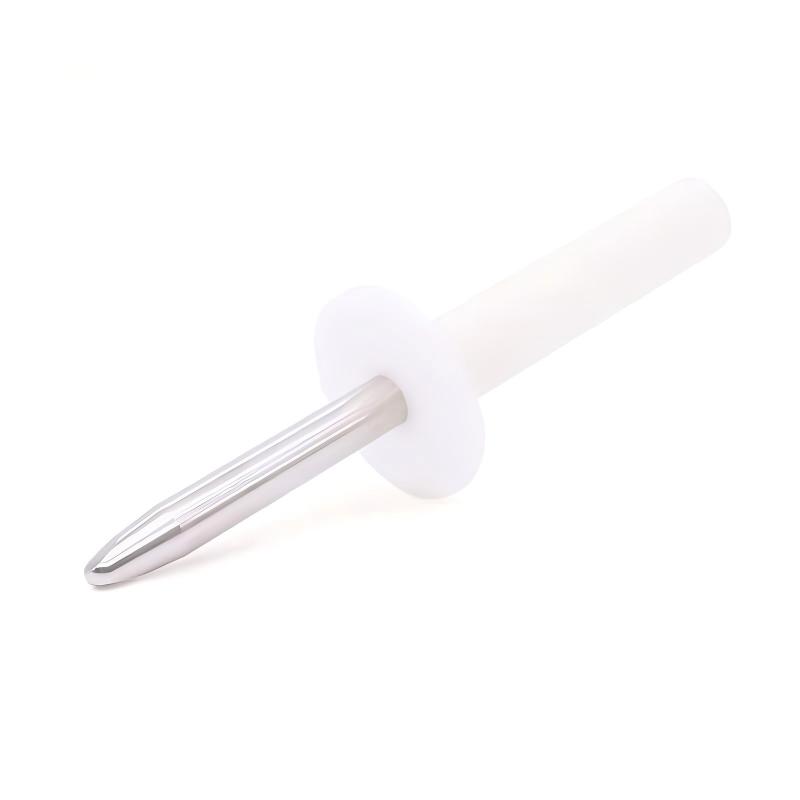

IEC61032 Test Finger Probe 11 Unjointed Test Finger
1. The thrust test refers directly to the point where the finger part cannot touch live parts or access hazardous parts, and bezels between 20mm and 50mm cannot be accessed. 2. In the experimental requirements to prevent proximity to hazardous components, the thrust test refers directly to the need to apply thrust.
Product Description
In accordance with IEC61032 Figure 7 Test Rig 11, GB/T16842 Test Probe 11, GB8898, IEC60065, IEC60598, GB7000, IEC60335, GB4706 and other standard requirements.
Technical Parameters:
• Test pin length: 80mm
• Diameter:12mm
• Material:Nylon and stainless
• Handle Diameter: 10 mm
• Dynamometer :50mm
• Thickness:5mm

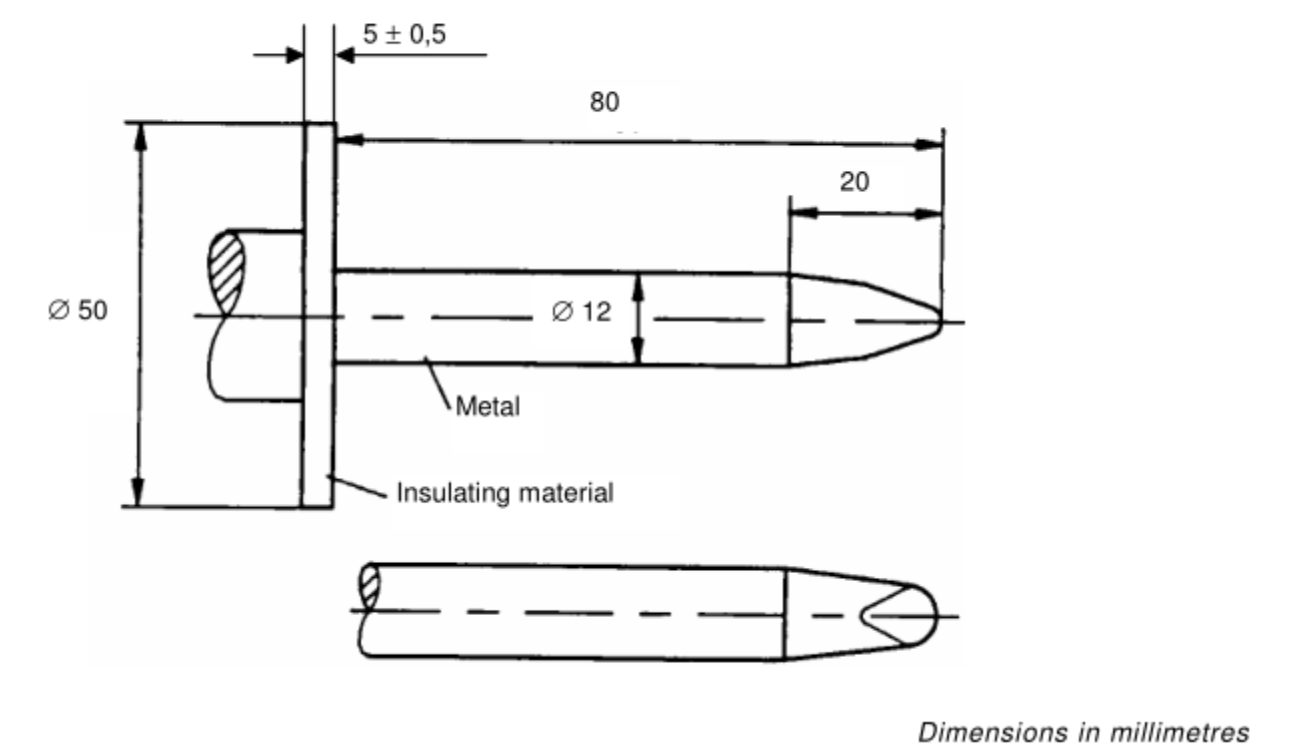

1. As shown in the figure, the finger portion of the thrust test finger cannot touch the energized parts or cannot approach the dangerous parts, and the 50mm-20mm stopper cannot be entered.
2. In the test requirements for preventing access to dangerous parts, the thrust test finger needs to apply thrust.
