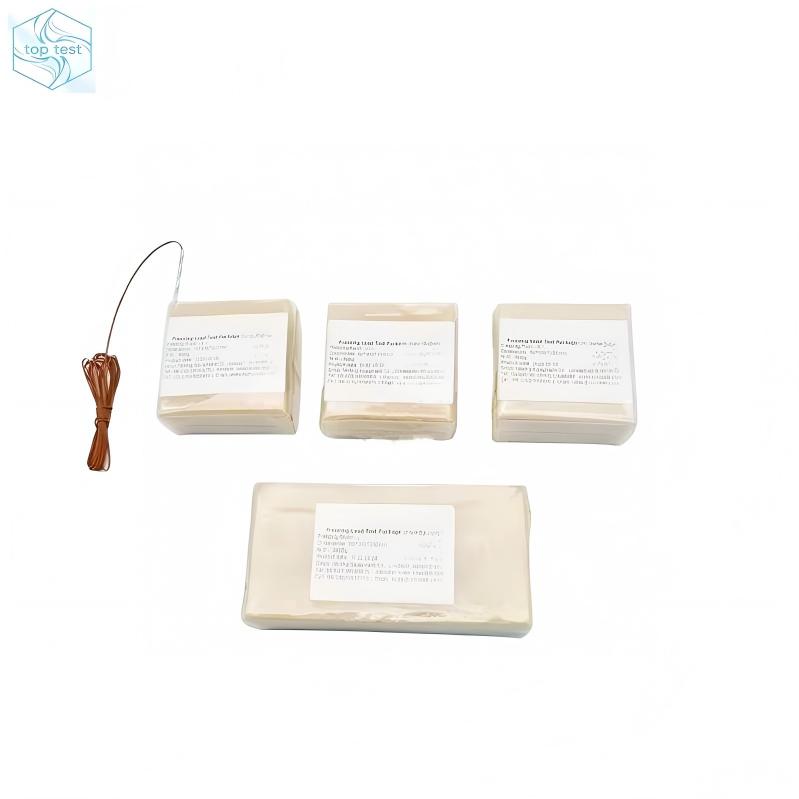

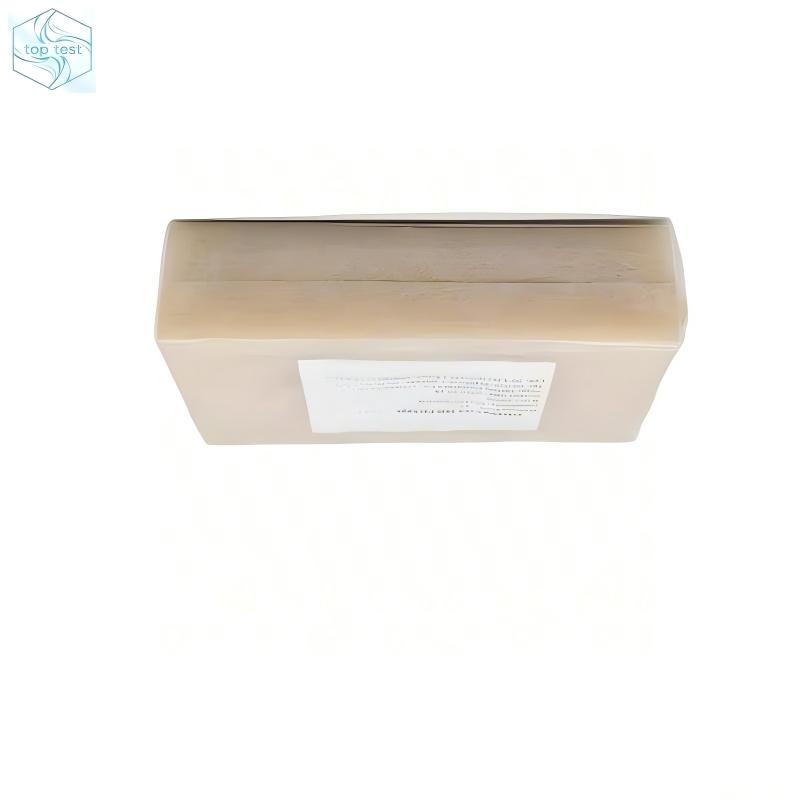

IEC 62552 Freezing Load Test Package For Refrigerator

In order to assess the thermal performance of refrigerators, freezers,, the refrigerator freezer test package (henceforth referred to as the freezing load test package) is a frequently used test package in the modern world. It is long-lasting, affordable, and safe.

Contact Us
Refrigerator & Freezer Thermal Performance Test Packages

Product Overview

To accurately assess the thermal performance of household refrigerators, freezers, and refrigerator-freezer combinations, freezing load test packages are the globally recognized standard solution for modern testing laboratories and certification bodies. These packages simulate the thermal behavior of real food loads, delivering exceptional durability, cost-effectiveness, and safety for repeated laboratory use.All our test packages are manufactured in strict compliance with the following international standards:
  • IEC 62552: Household refrigerating appliances – Characteristics and test methods
  • AHAM HRF-1-2007: Energy and Internal Volume of Refrigerating Appliances
  • SASO 2664-2007: Saudi Arabian Standard for Household Refrigerators and Freezers
  • AS/NZS 4474.1 (Australian Standard): Performance of household refrigerating appliances
  • AS72-2005: North American Standard for Commercial Refrigerating Appliances

Product Characteristics

  1. Thermal performance is engineered to match that of lean beef, with a controlled freezing point of -1°C for accurate food load simulation.
  1. After filling, each package is immediately sealed with a thin plastic film or equivalent material that enables moderate vapor exchange with the surrounding environment, per standard requirements.
  1. The "M Package" is a 500g test unit with a thermocouple installed at its geometric center for precise temperature measurement, ensuring direct contact between the sensor and the package contents.

Standard Test Packages by Specification

1. IEC 62552 Standard Test Packages

Widely adopted by manufacturers and testing organizations worldwide, including China, this standard defines test packages for household refrigerator performance testing, available in -1°C and -5°C versions.
Dimensions (mm)
Weight (g)
Dimensional Tolerance
Weight Tolerance
25×50×100
125
±2 mm (25–50 mm sides);±3 mm (100–200 mm sides)
±2%
50×50×100
250
±2 mm (25–50 mm sides);±3 mm (100–200 mm sides)
±2%
25×100×100
250
±2 mm (25–50 mm sides);±3 mm (100–200 mm sides)
±2%
25×100×200
500
±2 mm (25–50 mm sides);±3 mm (100–200 mm sides)
±2%
50×100×100
500
±2 mm (25–50 mm sides);±3 mm (100–200 mm sides)
±2%
50×100×200
1000
±2 mm (25–50 mm sides);±3 mm (100–200 mm sides)
±2%


2. IEC 62552 Standard "M" Test Packages

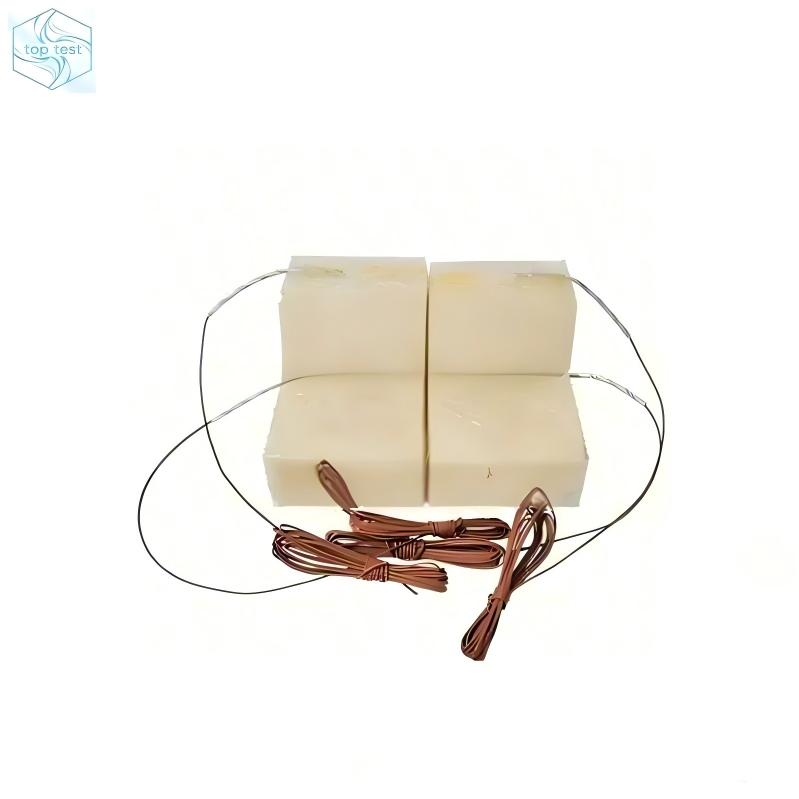

Designed per IEC 62552 requirements, these packages feature an embedded thermocouple or pre-installed copper tube for real-time temperature monitoring, with direct contact between the sensor and the filling material.
Dimensions (mm)
Weight (g)
Dimensional Tolerance
Weight Tolerance
50×100×100
500
50±2 mm, 100±3 mm
±2%


3. Australian Standard (AS/NZS 4474.1) Test Packages

Manufactured to meet Australian and New Zealand market certification requirements, these packages are defined by density for consistent thermal performance.
Dimensions (mm)
Density (kg/m³)
Weight Tolerance
Dimensional Tolerance
25×50×100
480±80
±2% (calculated from density & volume)
±2 mm (25–50 mm)±4 mm (100–200 mm)
25×100×100
480±80
±2% (calculated from density & volume)
±2 mm (25–50 mm)±4 mm (100–200 mm)
50×100×100
480±80
±2% (calculated from density & volume)
±2 mm (25–50 mm)±4 mm (100–200 mm)
37.5×100×200
480±80
±2% (calculated from density & volume)
±2 mm (25–50 mm)±4 mm (100–200 mm)
50×100×200
480±80
±2% (calculated from density & volume)
±2 mm (25–50 mm)±4 mm (100–200 mm)


4. AHAM HRF-1 2007 / SASO 2664-2007 Sawdust Test Packages & M Packages

Constructed per AHAM and SASO standards using compressed hardwood sawdust as the primary thermal simulation material. M Packages include an integrated thermocouple or embedded copper tube for temperature measurement.
Dimensions (mm)
Weight (g)
Density (kg/m³)
130×100×40
291±41
560±80


5. North American Commercial Test Packages (AS72-2005)

Filled-type test packages manufactured to AS72-2005 standards for North American commercial refrigeration performance testing.
Dimensions (mm)
Dimensional Tolerance
Minimum Volume
52×100×100
±2 mm
≥473 mL


Applications

  • Household refrigerator and freezer freezing load performance testing
  • Freezer energy efficiency evaluation and certification
  • Compliance testing per IEC 62552, AHAM, SASO, AS/NZS, and AS72-2005 international standards
  • Laboratory R&D, quality control, and third-party certification testing


Why Choose Our Test Packages

  • Standard Compliance: Manufactured to meet referenced international test standards
  • Stable Thermal Performance: Consistent simulation of real food load behavior
  • Durable Construction: Engineered for repeated freeze-thaw cycling in laboratory environments
  • Precision Manufacturing: Strict dimensional and weight control for reliable test results
  • Global Compatibility: Suitable for certification testing in Europe, North America, Australia, and the Middle East
