IEC 61032 Test Probe 41
Test Probe 41 is a dedicated safety testing tool designed in accordance with the IEC 61032 (Figure 16) standard. Its core purpose is to verify the unsupportability of hot/red-hot components in household appliances, butterflies, and other equipment to prevent accidental burns from human contact.

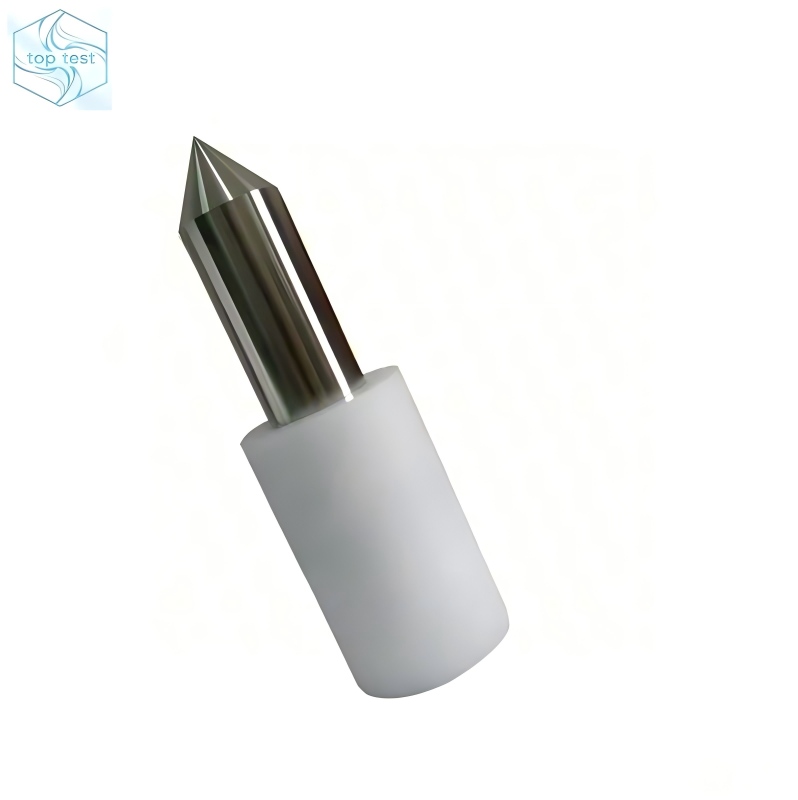

IEC 61032 Figure 16 Test Thorn Probe 41
Brief Introduction:
Standards : IEC 61032:1997, GB 16842, VDE 0470-2.
Function: Simulates unintentional human contact to detect whether openings/gaps in the equipment casing allow the probe to reach hazardous high-temperature internal components.
Applicable Scenarios: Safety certification testing for electrical appliances with visible incandescent components, such as electric heaters, ovens, toasters, and infrared heaters.

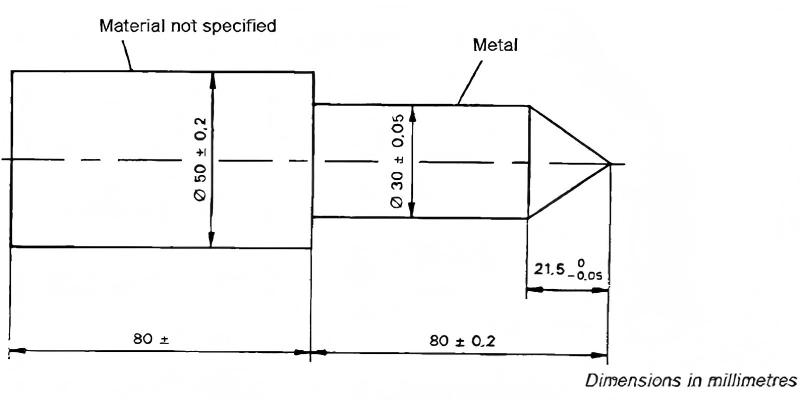

Key Specifications (IEC 61032 Figure 16)
- Probe diameter: 30 mm ± 0.05 mm
- Probe effective length: 80 mm ± 0.2 mm
- Tip taper length: 21.5 mm (0~-0.05 mm)
- Handle diameter: 50 mm ± 0.2 mm
- Handle length: 80 mm ± 1 mm
- Material: Probe: heat-resistant stainless steel; Handle: insulating material
- Applied force: No obvious external force (simulates light touch)
