IEC 60695-10-2 Ball Pressure Test Apparatus
TT-QY102 ball pressure test apparatus for IEC 60695-10-2 heat resistance testing of non-metallic materials: 5 mm pressure ball, 20 N ± 0.2 N load, 125 ± 2 °C heating box, stainless steel specimen holder, for IEC 60335, 60884, 60598 and related product standards.
Overview
The TT-QY102 performs the ball pressure test of IEC 60695-10-2, which checks the heat resistance of rigid non-metallic materials used in electrical accessories and appliances. The specimen is placed in a heating box at 125 ± 2 °C, a 5 mm pressure ball presses it with a 20 N load for one hour, and the specimen is then soaked in water at 20 ± 5 °C for 10 seconds. The indentation diameter is measured; if it stays within 2 mm, the specimen passes.
Key Features

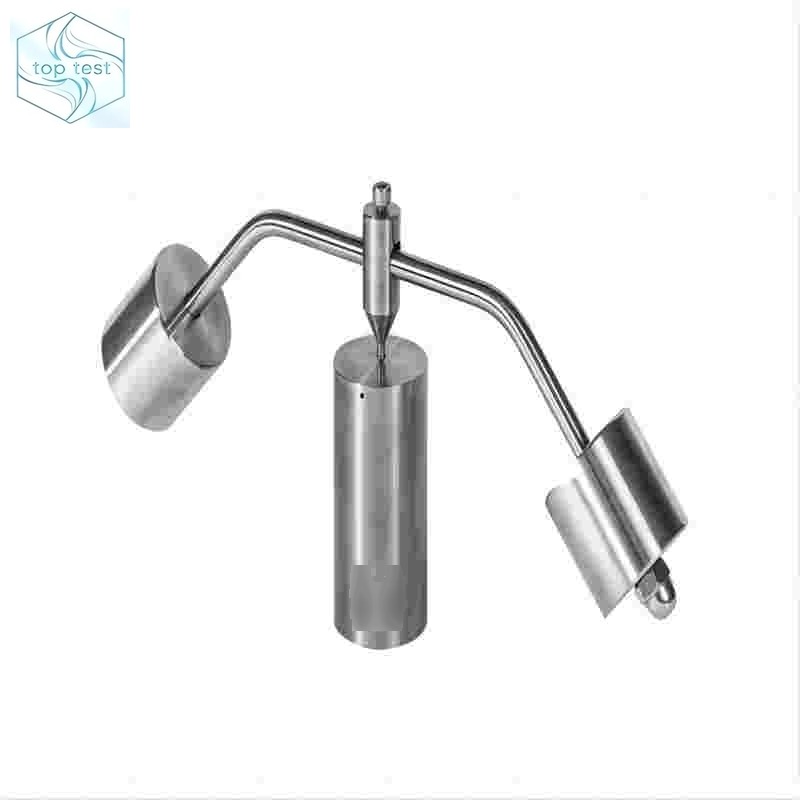

The apparatus consists of the loading device and the specimen holder. The holder is a solid stainless steel cylinder with a smooth surface that supports the specimen horizontally, and its large mass limits the temperature drop while specimens are installed or removed.
Standards and Applications
The ball pressure test is referenced by IEC 60335 (household appliances), IEC 60884 (plugs and socket-outlets), IEC 60320, IEC 60598 (luminaires), and IEC 60950, so the apparatus fits quality inspection labs, certification bodies, and factory type-testing benches working with these product standards.
Technical Specifications
Main technical specifications are listed below. Custom tank sizes, pressure ranges and fixtures can be configured to match your test standard.
Item | Specification |
|---|---|
Model | TT-QY102 |
Standard | IEC 60695-10-2 (also referenced by 60335/60884/60320/60598/60950) |
Ball diameter | 5 mm |
Test load | 20 N ± 0.2 N |
Test conditions | 125 ± 2 °C for 1 h, then 20 ± 5 °C water 10 s |
Pass criterion | Indentation diameter ≤ 2 mm |
Specimen holder | Solid stainless steel, Ø50 mm × 100 mm |
Ordering Guidance
Tell us the product standard and clause you are testing to, the specimen dimensions, and the required heating box volume, and we will confirm the suitable ball pressure apparatus configuration for your lab.
This machine is frequently ordered together with our IEC 60695 glow wire tester and IEC 60112 tracking index test apparatus.
