IEC 60529 IPX8 Pressure Immersion Test Machine with Power Supply
TT-IPX8PS IPX8 pressure immersion test machine for IEC 60529 and ISO 20653 waterproof testing: transparent plexiglass pressure tank, automatic pressure control with ±0.002 MPa accuracy, 0-999 min timer, and powered-sample terminals for testing samples under working voltage.
Overview
The TT-IPX8PS is a pressure immersion test machine for verifying the IPX8 waterproof performance of enclosures under IEC 60529 and ISO 20653. The sample is submerged in a pressurized water tank, so the test reproduces the effect of continuous immersion below the surface defined by the agreed water depth. Because the tank is operated by air pressure rather than by physical water column height, a compact benchtop machine can simulate deeper immersion conditions than the height of the tank itself.
Typical applications include mobile phones and wearable devices, LED lighting, automotive connectors and components, EV charging equipment, outdoor electrical enclosures, waterproof sensors, communication equipment, and marine or offshore electronics. The integrated power supply terminals let the sample stay energized while it is immersed, so leakage or failure under working voltage can be observed during the test.
Key Features

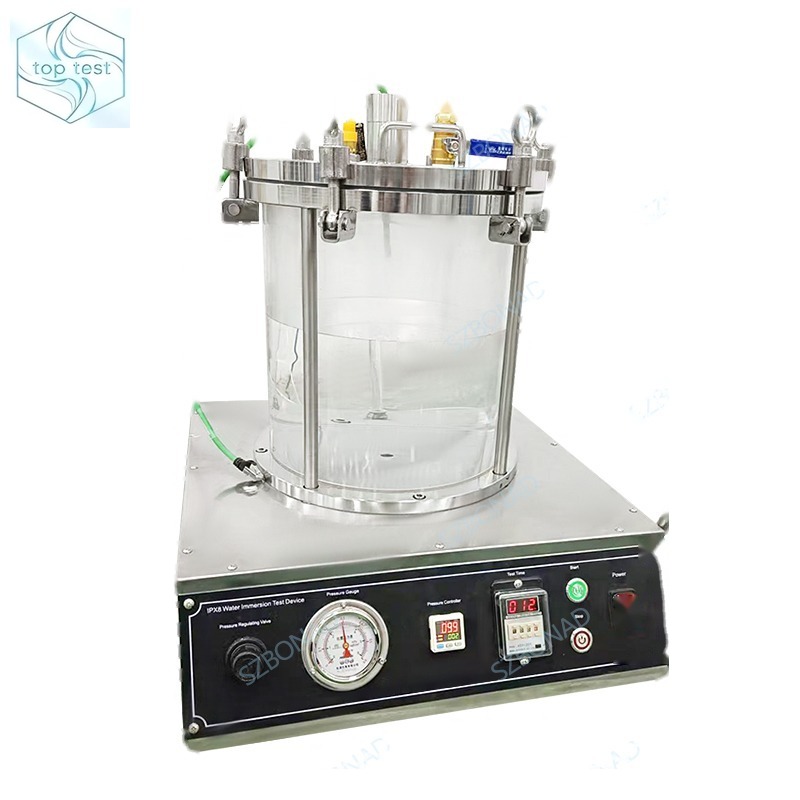

The test tank is made of transparent plexiglass, so the sample stays visible throughout the pressurized test. The chassis is stainless steel with a 45-degree bevel control panel, and the tank lid is sealed by a silicone seal ring. Pressure is controlled automatically by a pressure sensor with a control accuracy of ±0.002 MPa and a display accuracy of 0.001 MPa.
A 0-999 minute timer runs each test; when the set time is reached, the air supply stops and pressure in the tank exhausts automatically so the lid can be opened and the sample retrieved. Custom test conditions such as pressure range and tank configuration can be specified when ordering.
Technical Specifications
Main technical specifications are listed below. Custom tank sizes, pressure ranges and fixtures can be configured to match your test standard.
Item | Specification |
|---|---|
Model | TT-IPX8PS (30A / 50A / 100A variants, 20 L tank) |
Standards | IEC 60529, ISO 20653 (IPX8 pressure immersion) |
Pressure control | Automatic, sensor-controlled |
Control accuracy | ±0.002 MPa (display 0.001 MPa) |
Pressure range | 0-0.3 MPa / 0-0.5 MPa / 0-1.0 MPa by variant |
Tank | Transparent plexiglass, stainless steel chassis |
Timer | 0-999 min, auto stop and auto exhaust |
Powered sample | Sample can be energized during immersion |
Ordering Guidance
The TT-IPX8PS is available in 20 L tank configurations with different maximum pressure ranges (0-0.3 MPa, 0-0.5 MPa, or 0-1.0 MPa) to match the immersion depth your standard requires. Tell us the standard clause, required water depth or pressure, and whether the sample must be powered during immersion, and we will confirm the suitable configuration.
This machine is frequently ordered together with our IEC 60529 IPX7 water immersion test equipment and IPX7/IPX8 waterproof rating tester.
