IEC 60529 IPX5 IPX6 Water Jet Test Equipment
In order to test the water resistance and sealing of the samples during storage, transportation, and use, IPX5 and IPX6 Rain Spray Test Apparatus replicates the water drop environment. It is extensively used in electrical and electronic devices, lamps and lanterns, electrical cabinets, electrical components, cars, motorcycles, and their replacement parts, among other items. It offers the foundation for enhancing the items' performance.
IPX5 IPX6 Waterproof Test Jet Equipment IEC60529
Brief introduction:
This test device is specially used to verify the protection capability against water jets, and inspect the waterproof ingress performance of products to confirm the protection grades marked by the second characteristic number: IPX5 (Protected against water jets) and IPX6 (Protected against powerful water jets).
Both IPX5 and IPX6 require the test specimen to be sprayed with water from all feasible directions. For IPX5 tests, a nozzle with a 6.3mm diameter opening and a water flow rate of 12.5L/min is specified; for IPX6 tests, a nozzle with a 12.5mm diameter opening and a water flow rate of 100L/min is adopted.
Standard:
IEC60529, IEC60598-1, IEC 60335-1, IEC60745-1, GB4208, GB7000.1
Equipment Structure

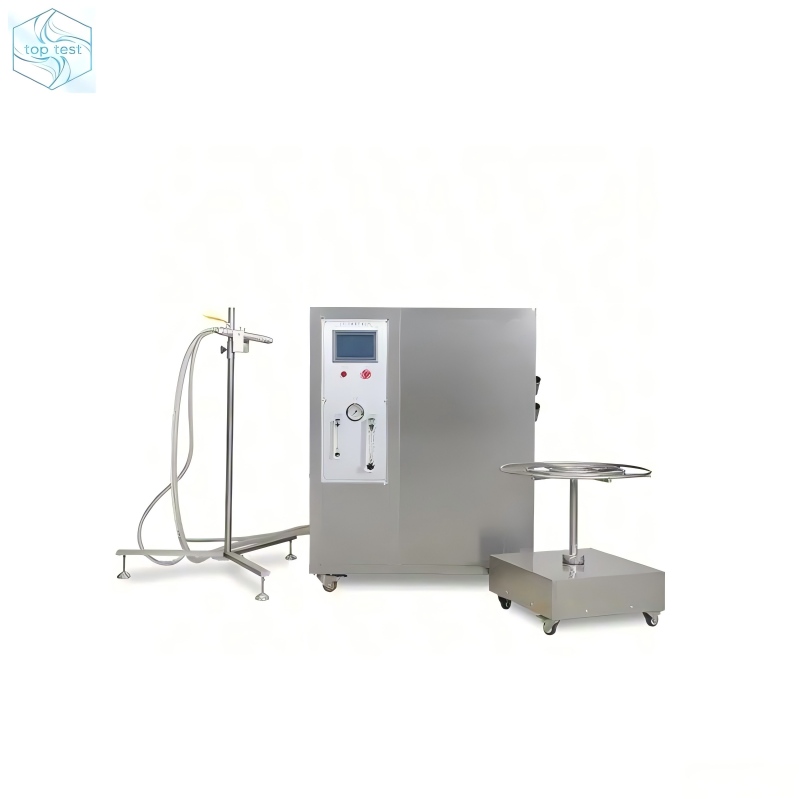

- Open Frame Structure: Crafted from SUS304 stainless steel for corrosion resistance, open design for easy sample loading and testing of large workpieces; easy to clean and drain

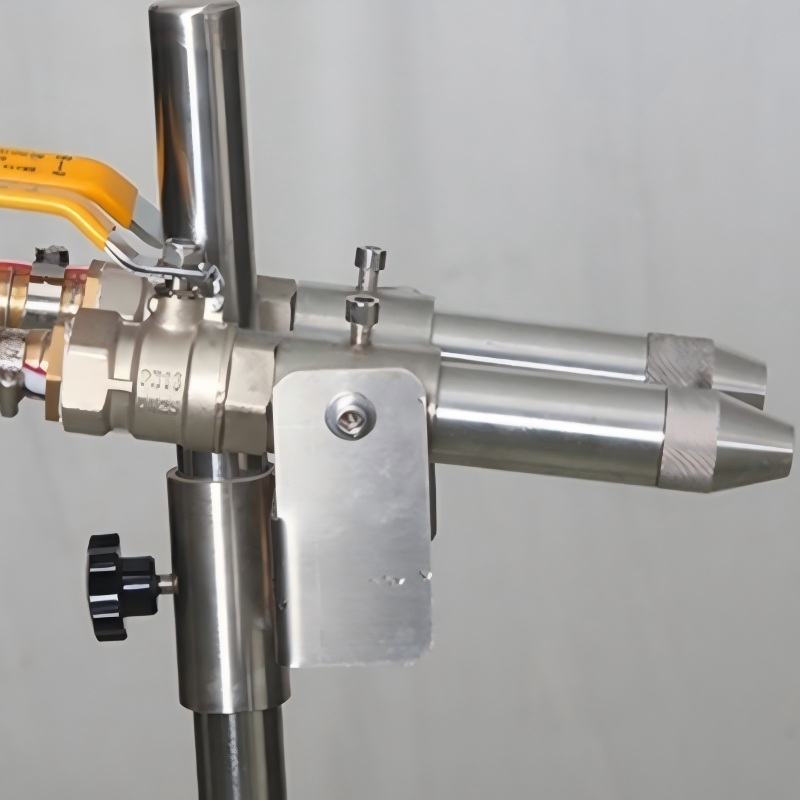

- Precision Nozzle Assembly: Dual IPX5/6 nozzles with adjustable angle and height, enabling full omnidirectional spray coverage
- 360° Rotary Turntable: Speed-adjustable (1-5r/min) for uniform sample spraying with no dead angles
- Safety Protection Module: Water shortage alarm, overload protection, leakage protection and emergency stop function
IPX5 vs IPX6 Comparison
| | IPX6 Powerful Water Jet Test |
| Resists low-pressure water jets from any direction with no harmful water ingress | Resists high-pressure powerful water jets from any direction with no water penetration |
| Φ6.3mm Stainless Steel Nozzle | Φ12.5mm Stainless Steel Nozzle |
| 10L/min (Stable Pressure) | |
| | |
| Daily outdoor use, light rainstorms, roadside water splash | Heavy rainstorms, ship deck operations, industrial water impact |
FAQ:
- Q: What are the advantages of the open type design?
A: Open structure allows quick loading/unloading of samples, supports large/irregular workpiece testing, and simplifies daily maintenance.
- Q: Can the open tester switch between IPX5 and IPX6 modes?
A: Yes, it supports one-key touchscreen switching with quick nozzle replacement.
- Q:In which fields can IPX5 IPX6 waterproof jet test equipment be used?
A:IPX5/IPX6 water spray test equipment is mainly used in these fields:
- Outdoor LED lighting & street lamps
- Automotive parts & vehicle electronics
- Security cameras & outdoor communication devices
- Waterproof household appliances
- Factory QC & third-party testing labs
