IEC Test Finger Probe

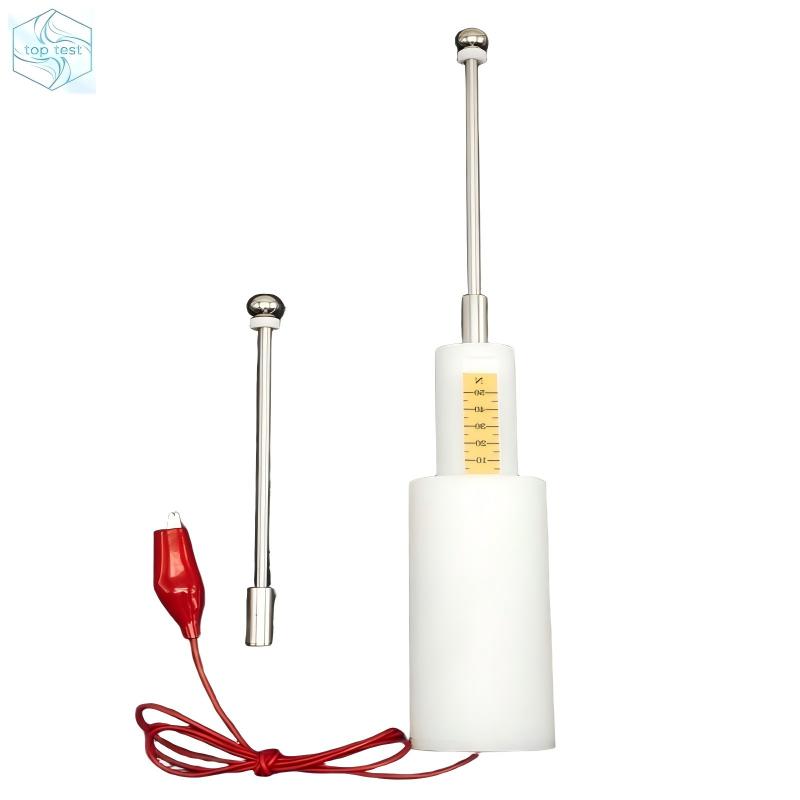

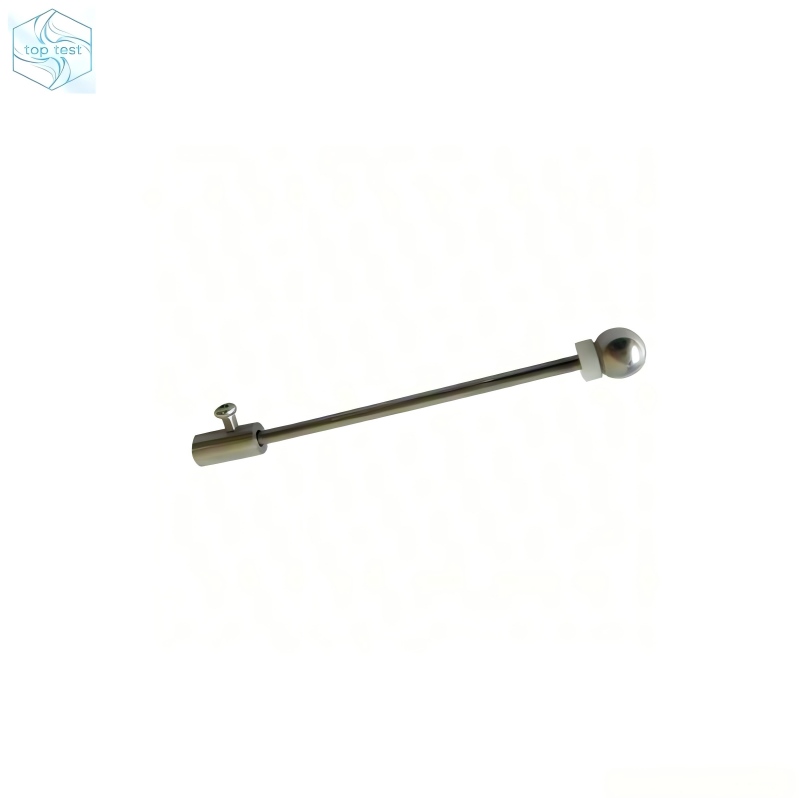

IEC 60529 12.5mm Rigid Spherical IP2X Test Probe
Basic Introduction: 1, According to the DIN40050 IEC60529. 2, 12.5mm test probe is necessary appliance for household and similar electrical appliance of against electric shock protection test.
IEC 60529 IP2X Test Probe 12.5mm
Basic Introduction:
1, According to the DIN40050 IEC60529.
2, 12.5MM test probe is necessary appliance for household and similar electrical appliance of against electric shock protection test.
Product Overview
IEC 60529 IP2X Test Probe 12.5mm — also known as the jointed test finger or standard access probe — is a fundamental ingress protection test device used to verify protection against access to hazardous parts. This 12.5mm probe is specifically designed to assess IP2X protection level per IEC 60529 and IEC 61032 standards.
Features
- Standard Compliance: Fully compliant with IEC 60529 (IP Code), IEC 61032 (Test Probe B) , and GB/T 4208.
- Precision Dimensions: Features a 12.5mm diameter rigid finger with a hinged joint simulating human finger articulation.
- Force Control: Equipped with a push-pull gauge compatible design for applying specified test forces (typically 10N or 50N).
- Durable Construction: Made from stainless steel and insulated handle for operator safety.
Applications
- Electrical Safety Testing: Verifies protection against electric shock from live parts.
- Enclosure Verification: Assesses mechanical hazard protection for moving parts.
- Product Certification: Essential for CE marking, UL certification, and CB scheme compliance testing.
- Quality Control: Used in laboratories, inspection agencies, and manufacturing facilities for ingress protection testing.
Technical Parameters
Parameter | Specification |
|---|---|
Standards | IEC 60529, IEC 61032 (Test Probe B) |
Probe Diameter (mm) | 12.5 |
Finger Length (mm) | 80 |
Joint Angle | 90° Hinged Joint |
Handle Material | Insulated Nylon or POM |
Probe Material | Stainless Steel |
Compatible Test Force (N) | 10, 20, or 50 (Optional Force Gauge) |
