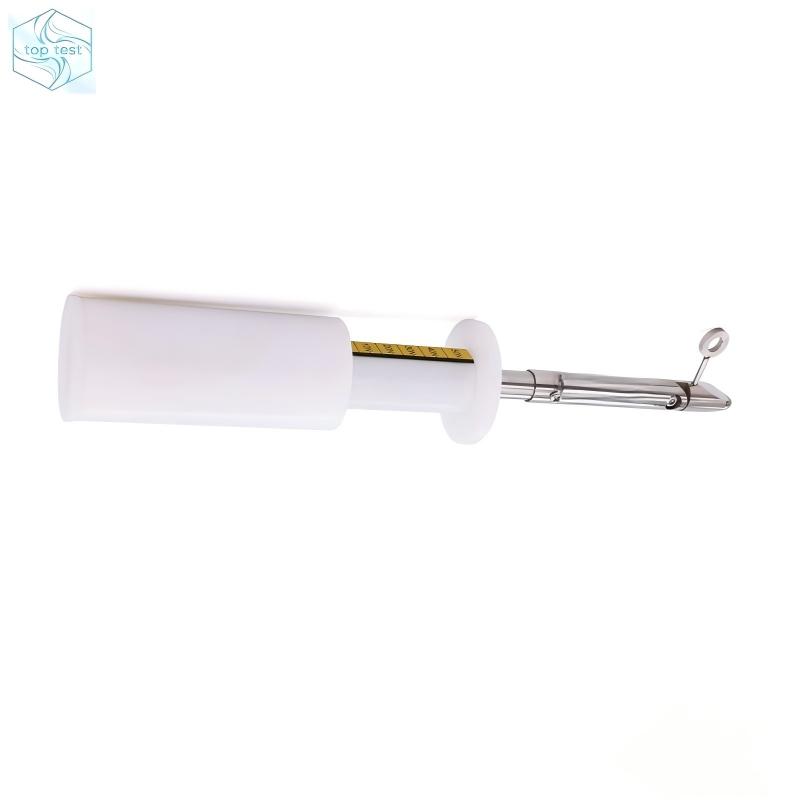

50N test finger nail(1)

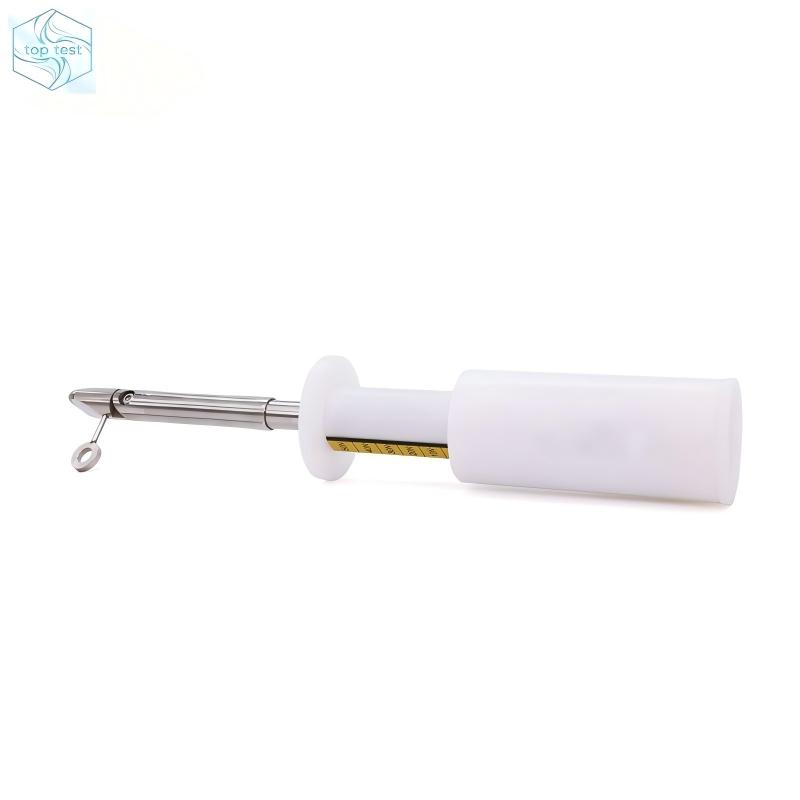

50N test finger nail(1)
test finger nail
IEC Test Finger ProbeIPX Test Finger Probe

IEC 60335 Test Finger Nail With/Without Force

Test IEC60335-1 is specified for the Finger Nail Probe. used to verify that components that snap together are secure. The force required to operate the instrument can be adjusted using the spring gauge included into the handle. This probe has a handle made of insulating material and is made of stainless steel with a suitable hardened tip.

Contact Us
IEC 60335-1 Figure 7 Test Finger Nail

Appliance:
The Finger Nail Probe is indicated test IEC60335-1. Used to check the security of parts that snap together. The spring gauge assembled in the handle can be calibrated to the necessary force for using the instrument. This probe is make of stainless steel with appropriated hardened tip and a handle in insulating material.
Specifications:
Force gauge: To be used with a 10N / 20N / 30N / 40N / 50N.
Application: To be used with a push and pull force gauge.

• Material Composition – Tip: Hardened stainless steel (wear-resistant, maintains 0.2mm precision); – Handle: Nylon (insulating, flame-retardant UL94 V-0 rating)

• Key Dimensions – Tip thickness: 0.2±0.02mm; – Handle diameter: ø12-0.05mm; – Overall length: 80mm; – Angle: 37° (matches IEC 60335-1 Figure 7)

• Functional Design: Integrated spring (provides consistent push force as specified in IEC 60335-1 Clause 22.11); Smooth tip (avoids damaging snap-together parts)

• Dimensional Tolerances: Linear dimensions: ±0.05mm; Tip thickness: ±0.02mm
