IEC 60068-2-75 Adjustable Energy for IK Testing

A handheld manual testing tool (also called spring operated impact hammer), it uses spring energy storage and precise release to deliver fixed impact energy. It evaluates product enclosure integrity, ensuring compliance with global safety certifications, with energy options from 0.14J to 2.0J (aligned with IK01-IK07).

Contact Us

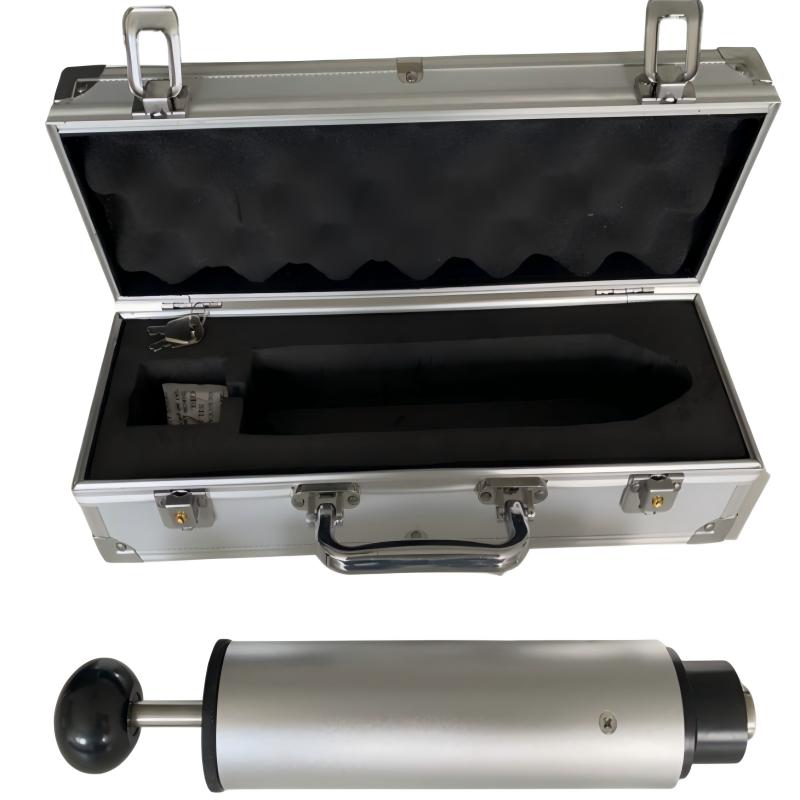

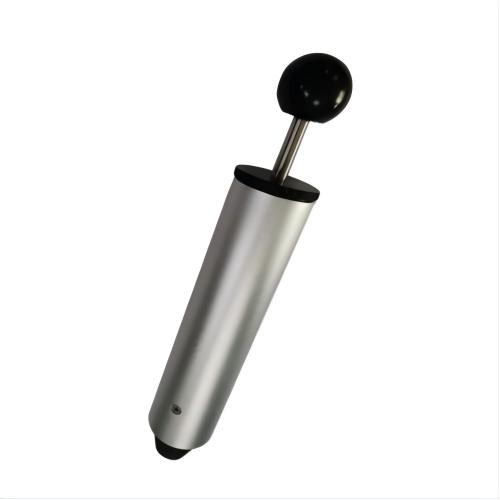

Spring Impact Hammer

Our high-precision Spring Impact Hammer simulates accidental impacts to test product mechanical strength and safety, compliant with IEC 60068-2-75, EN 60068-2-75, GB/T 2423.55, and UL 1244. Ideal for manufacturers, labs, and QC teams worldwide.

Product Overview

A handheld manual testing tool (also called spring operated impact hammer), it uses spring energy storage and precise release to deliver fixed impact energy. It evaluates product enclosure integrity, ensuring compliance with global safety certifications, with energy options from 0.14J to 2.0J (aligned with IK01-IK07).

Key Features

  • Standard Compliance: Conforms to IEC 60068-2-75, UL 1244, ISO 17025; compatible with IEC 60335, IEC 60598, IEC 62368, IEC 60601.
  • Precise Energy: ±5%-±10% accuracy, single/multi-stage (5/6/8-position) models, 0.14J-2.0J options.
  • Durable & Ergonomic: Stainless steel + PA materials, R100 polyimide hammer head (10mm/25mm), no external power needed.
  • Easy to Use: Manual operation, release force <10N (standard)/<20N (2.0J).


Technical Specifications

Parameter
Specification
Impact Energy
0.14J-2.0J (with standard tolerances)
Hammer Head
Polyamide/Polyimide (R100), 10mm (25mm for 2.0J)
Weight
Impact element: 250g; Body: ~1250g
Release Force
<10N (standard), <20N (2.0J)
Calibration
ISO 17025, CNAS & ILAC certified

Applications

Widely used for testing enclosures/components of home appliances, lighting, electronics, electric tools, toys, and medical devices, ensuring compliance with global safety standards.

How It Works

Manual energy storage (compress spring) → lock mechanism → trigger release → convert spring potential energy to kinetic energy for consistent impact, calibrated for accuracy.

Why Choose Us?

  • 100% standard compliance for global certification recognition
  • High precision & repeatability for reliable test results
  • Versatile models for diverse testing needs
  • Durable design & cost-effective with 1-year warranty

FAQ

  • Q: What’s it used for?
  • A: Simulate accidental impacts to test product mechanical strength and safety.
  • Q: Which standards does it comply with?
  • A: IEC 60068-2-75, UL 1244, ISO 17025, and product-specific standards.
  • Q: Custom options available?
  • A: Yes, custom energy, hammer head materials/sizes.


Contact Us

Contact us for a quote, custom solutions, or more details. Our team is ready to help.
Email: mary@sztoptest.com Phone: +86 19076186175 WhatsApp: +86 19076186175
