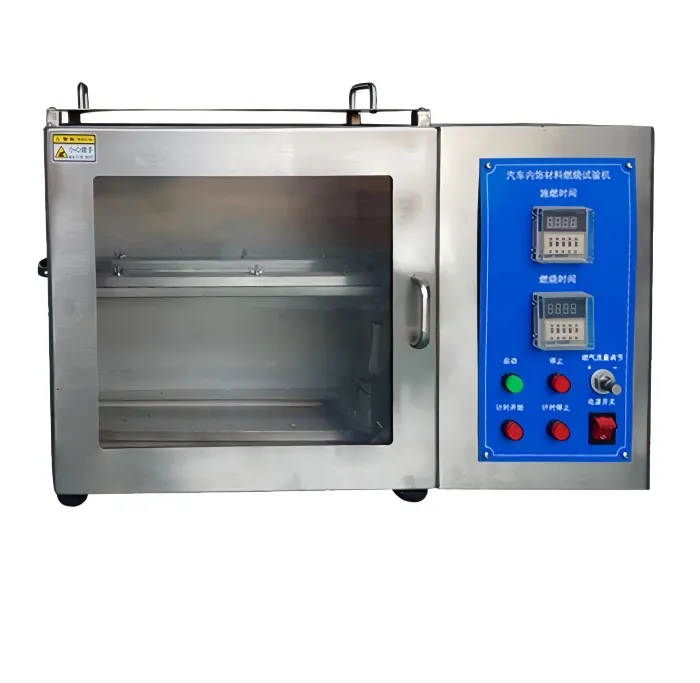

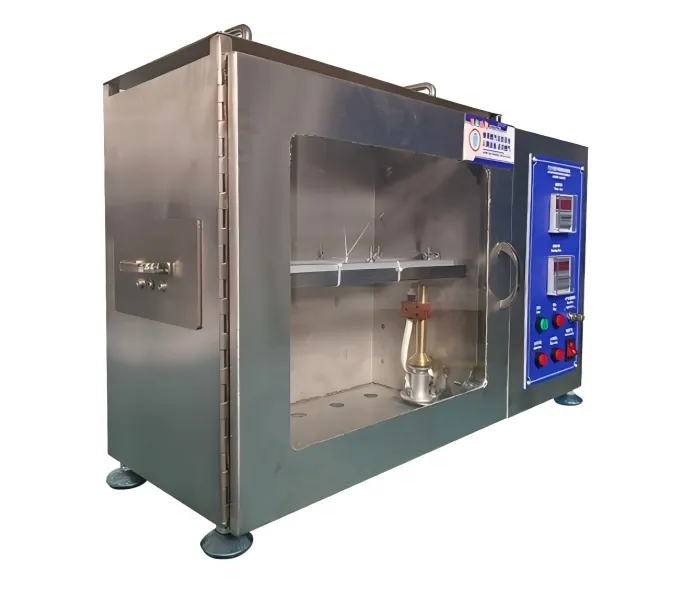

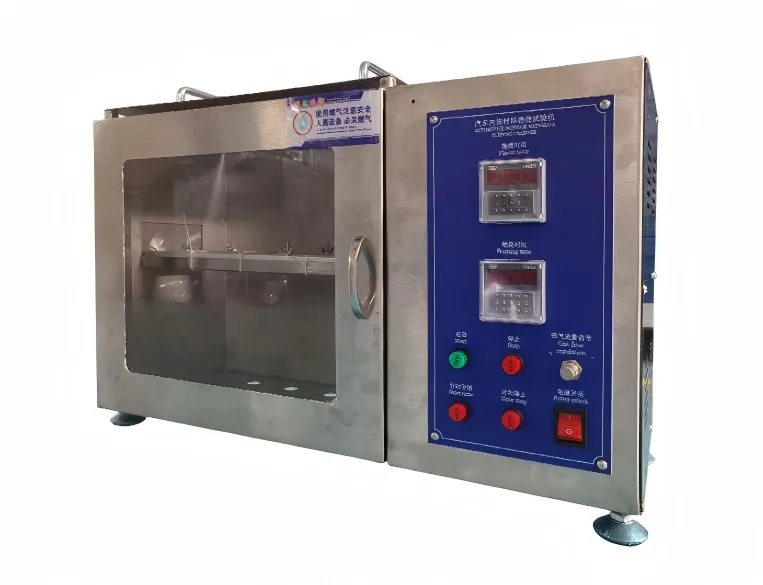

FMVSS 571.302 Automotive Interior Material Flammability Tester
Automotive interior material flammability tester for FMVSS 571.302 and GB 8410 testing. Designed for evaluating burning performance of automotive fabrics, plastics, carpets and interior materials.
The Automotive Interior Material Flammability Tester is designed to evaluate the burning performance of materials used in motor vehicle occupant compartments. It is designed with reference to FMVSS 571.302, GB 8410, ISO 379, and ASTM D5132.
The tester is suitable for automotive fabrics, carpets, plastic components, interior trim materials, insulation materials, engineering plastics, and other solid combustible materials. It is widely used for material development, quality control, compliance testing, and laboratory research.
Test Principle
A controlled flame is applied to the test specimen using a Bunsen burner for a specified period. After ignition, the operator observes the burning behavior and records relevant parameters such as burning time and burning distance according to the applicable test method.
The results can be used to evaluate the flammability and burning characteristics of the tested material.
Key Features
- Designed for automotive interior material flammability testing
- Reference standards: FMVSS 571.302, GB 8410, ISO 379, ASTM D5132
- Ø9.5 mm ± 0.3 mm Bunsen burner
- Adjustable flame height from 20 ± 2 mm to 100 ± 2 mm
- Typical flame height: 38 mm
- Burning time: 0–999.9 s ± 0.1 s, adjustable
- Temperature range: 0–200°C
- Manual operation
- Compact laboratory design
Applications
The tester can be used for evaluating the flammability of:
- Automotive seat fabrics and upholstery
- Carpets and floor coverings
- Interior trim materials
- Plastic components
- Dashboard and console materials
- Insulation materials
- Engineering plastics
- Other solid combustible materials
Technical Specifications
Parameter | Specification |
|---|---|
Reference Standards | FMVSS 571.302, GB 8410, ISO 379, ASTM D5132 |
Working Chamber Size | 385 × 204 × 360 mm |
Overall Dimensions | 550 × 210 × 550 mm |
Burner | Bunsen burner |
Burner Nozzle Diameter | Ø9.5 mm ± 0.3 mm |
Burner Length | Approx. 100 mm |
Flame Height | 20 ± 2 mm to 100 ± 2 mm |
Typical Flame Height | 38 mm |
Burning Time | 0–999.9 s ± 0.1 s, adjustable |
Temperature Range | 0–200°C |
Temperature Resolution | 1°C |
Burning Gas | Liquefied petroleum gas or coal gas |
Operation | Manual control |
Steel Ruler | 500 mm length, 1 mm accuracy |
Applicable Standards
FMVSS 571.302
Flammability requirements for materials used in motor vehicle occupant compartments.
GB 8410
Flammability requirements for automotive interior materials.
ISO 379
Reference standard for applicable flammability testing.
ASTM D5132
Standard test method for the horizontal burning rate of polymeric materials used in occupant compartments of motor vehicles.
Different standards may specify different specimen requirements and test conditions. The applicable test procedure should be selected according to the customer's testing requirements.
Why Choose This Tester?
The Automotive Interior Material Flammability Tester provides a simple and practical solution for evaluating the burning performance of automotive interior materials. Its adjustable flame height, precise timing function, dedicated Bunsen burner, and compact test chamber make it suitable for routine laboratory testing and material evaluation.
