Environment Sand Dust Resistance Test Device IEC 60529

Features of Sand Dust Testing Machine 1. Using a powerful dust spray device, the user can independently control the conditions of floating dust 1, floating dust 2, and floating dust 3 on the panel. 2. The use of vibration equipment can make the dust concentration the same every time. 3. The precise dust concentration collector can reduce the miscalculation of the concentration due to improper operation.

Contact Us
IP5X/IP6X Sand Dust Test Chamber | EN 60529 Standard Dust Resistance Testing Equipment

Product Overview

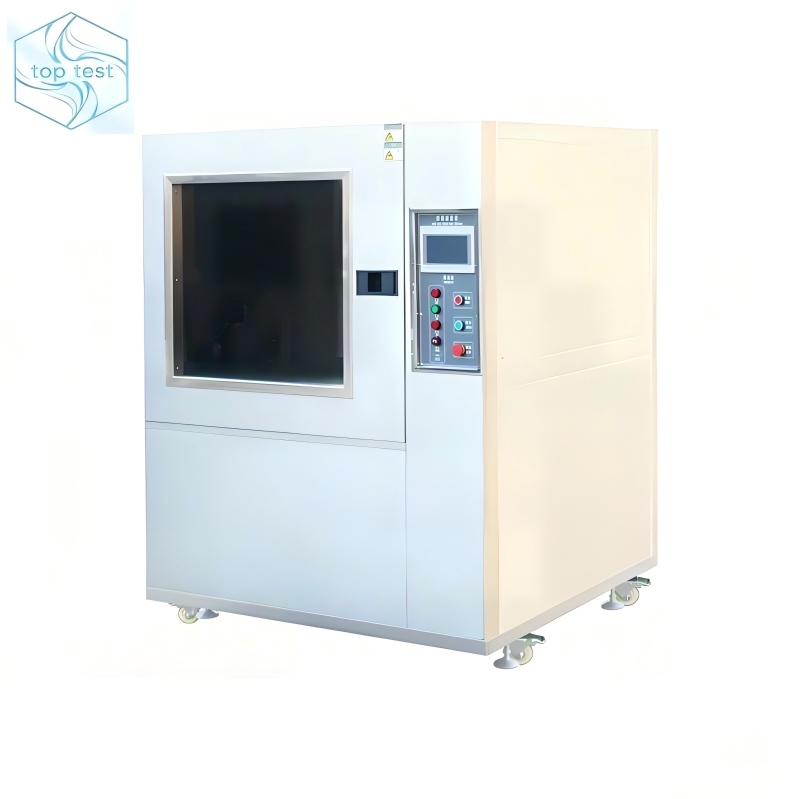

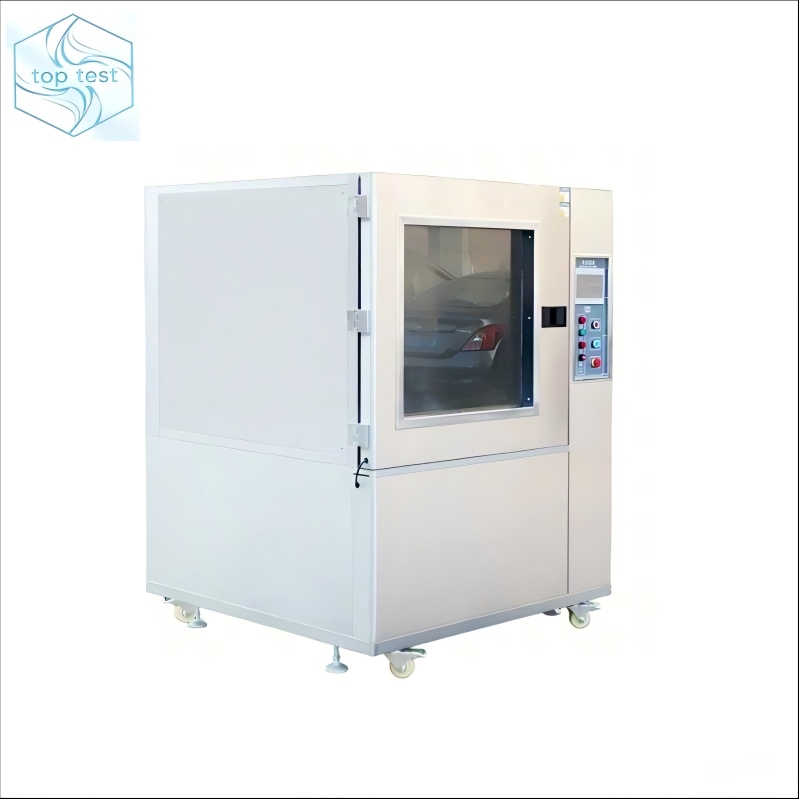

Our EN 60529 Standard Sand Dust Resistance Test Machine (also known as dustproof test chamber / IP5X/IP6X dust test chamber) is a professional environmental simulation equipment, specially designed to replicate harsh dusty and sandy environments. It accurately evaluates the durability, reliability and dustproof performance of products exposed to floating dust, cyclone dust and dry sandblasting conditions, fully complying with international mainstream test standards for ingress protection grading.This equipment is widely used for dust endurance and sealing performance testing of various industrial components and finished products, helping manufacturers optimize product design and ensure long-term stable operation in harsh environments.

Applications

Our sand dust test chamber is ideal for dustproof and dust endurance testing across multiple industries, covering a full range of products that require IP5X/IP6X grading certification:
  • Automotive Industry: Automobile lamps, dashboard meters, safety belts, seat regulators, dust-proof boots, door locks, steering system components, engine parts and other auto parts
  • Electronics & Electrical: Electronic devices, PCBs, electrical enclosures, sensors, small household appliances and outdoor electrical equipment
  • Aerospace & Machinery: Avionics, mechanical parts, precision instruments, optical devices and electromechanical equipment
  • Consumer & Outdoor Goods: Smartphones, laptops, outdoor tools, construction equipment and other products used in dusty environments

Sand Dust Test Chamber Structure & System

Chamber Structure System
  1. Exquisite design with streamlined arc shape and surface plastic spraying treatment, featuring a high-end texture and novel, elegant appearance.
  1. The inner tank of the chamber is made of high-grade SUS304 mirror-finish stainless steel plate.
  1. The outer shell is fabricated from high-quality A3 steel plate by CNC machining, boasting an elegant and neat appearance with a clean and attractive look.
  1. Large-area visible glass door for convenient observation of the test samples inside the chamber during testing.
  1. A dust replacement device is installed at the bottom of the sand dust test chamber.
  1. The bottom of the chamber is equipped with high-quality lockable PU casters for easy movement by users.

Dust Preheating System

  1. Adopts pipe clamp-type mica sheet heating.
  1. Stable and safe heat output with timed heating control function.
  1. Test dust: dry dust, silicate cement, flue ash, etc.

Safety Protection System

Equipped with multiple protection functions: over-temperature protection, overload protection, electric leakage protection, short-circuit protection, power-off memory, fuse-less protection switch, etc.

Core Features & Advantages

  • Powerful & Adjustable Dust Spray System: Equipped with high-efficiency dust spraying device, users can independently control three levels of floating dust modes on the control panel, meeting diversified test requirements.
  • Uniform Dust Concentration: Built-in vibration device and synchronous resonance function ensure stable and consistent dust concentration in each test, eliminating concentration errors caused by manual operation.
  • Intelligent Computer Control: Supports computer connection and real-time monitoring, with programmable touch screen controller for easy parameter setting and data tracking.
  • User-Friendly Design: Optimized dust cleaning structure for convenient maintenance; low-noise centrifugal fan for stable and quiet operation.
  • Full Standard Compliance: Meets EN 60529 (IEC 60529), JIS, ISO, DIN 40050, GB 2423 and other international & national test standards.


Sand dust resistance test machine technical parameters:
Model
TT-C1
TT-C2
Remark
C for cyclone dust
Concentration of Sand and Dust
C1: 5000mg/ m3, 5m/s
C2: 100mg/ m3, 10m/s
Temperature Range
RT(25ºC±15ºC), or lab temperature
Humidity Range
35~90% R.H., or lab humidity
Talcum Powder Dosage
(Kg/m ²)
 2 ~4
Metal Net Mesh StandardDiameter(μm)
50
Diameter Between Metal Wires(μm)
75
Powder Spray & Dust Fall Mode
1. Dust fall freely: adopt centrifugal fan to blow the sand or dust to the 1/5 of roof, then fall freely.  2. Blow the sand or dust: pressure spray dust from the bottom, multi-steps pressure adjustable
Test Standard
Meet JIS, ISO, IEC60529,DIN40050,GB2423 test standard
Power
AC 220V(±10%),
1 phase 3 Lines,50/60HZ

Certifications & Quality Assurance

  • CE Certification
  • Compliant with IEC/EN/ISO/JIS/DIN/GB International Standards

FAQ: 1.Can the chamber size be customized?
Yes, we accept non-standard customization for inner chamber size, test parameters, control system and other special requirements to match your unique testing needs.
What test standards does this sand dust chamber comply with?
This equipment fully meetsEN 60529 (IEC 60529), as well as ISO, JIS, DIN 40050, GB 2423 and other mainstream international IP5X/IP6X dustproof test standards.


What type of test dust is required?

This machine uses standard talcum powder (2-4kg/m³ dosage), the specified test medium for IP5X/IP6X dust resistance tests, ensuring consistent and compliant test results.
