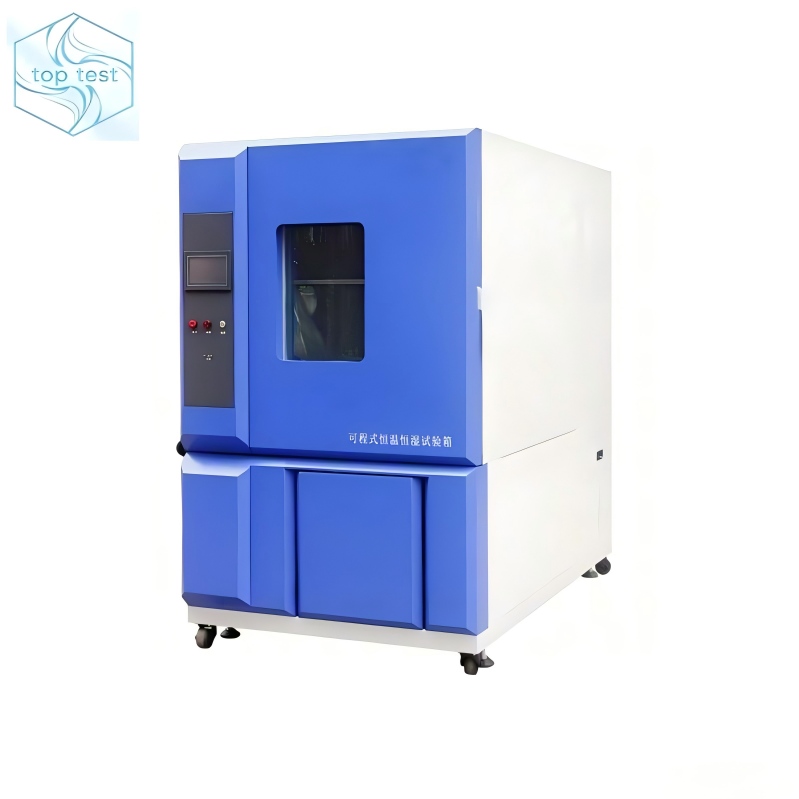

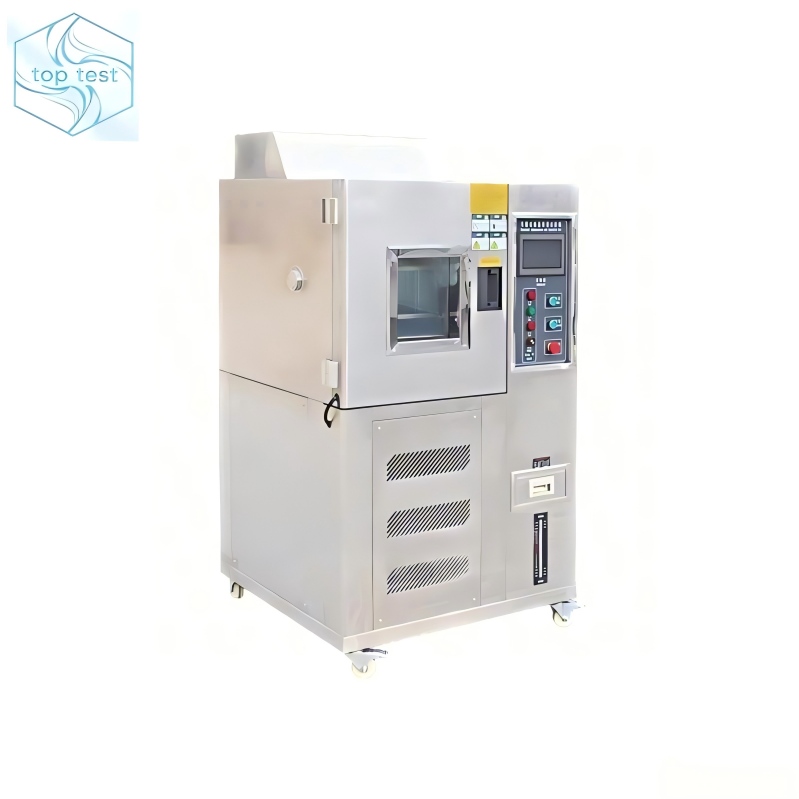

85℃ 85%RH High-Temperature & High-Humidity Aging Test Equipment
The Double 85 Test Chamber is a high-precision testing equipment, specially designed to maintain a stable 85℃ high temperature + 85%RH high humidity environment. As a professional Double 85 environmental test chamber, it accelerates product aging tests, simulating years of natural damp-heat aging in hundreds to thousands of hours, helping enterprises verify reliability and screen quality. It is widely used as a double 85 humidity and temperature test chamber in photovoltaic, semiconductor and electronics industries.
Working Principle
The Double 85 Test Chamber achieves stable high-temperature and high-humidity environment through 5 core modules and PID closed-loop control, ensuring long-term stable test conditions. For more details on Double 85 test chamber working principle, our technical team provides professional consultation.

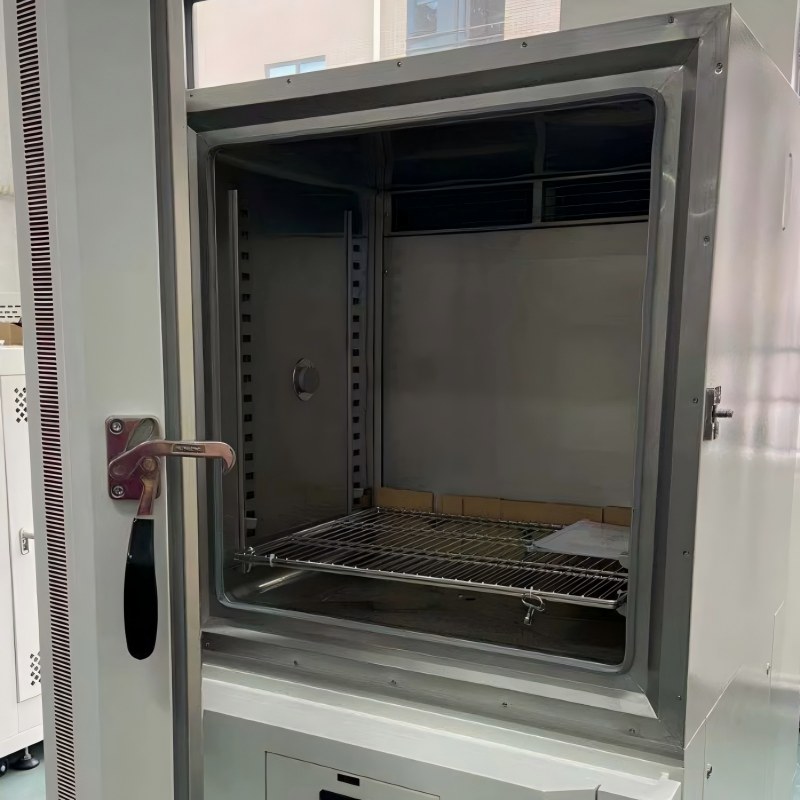

- Sealed Insulation Chamber: Double-layer stainless steel + insulation cotton, highly sealed and heat-insulating to prevent heat and moisture leakage and ensure internal environment stability.
- Heating System: Equipped with electric heating tubes, providing constant 85℃ high temperature, with PID precise adjustment for minimal temperature fluctuation (±0.5℃).
- Humidification System: Adopting shallow tank or steam injection humidification, quickly raising air humidity to 85%RH with uniform effect.
- Dehumidification & Humidity Control System: Cooperating with compressor to condense excess vapor, linking temperature and humidity control to stably lock 85%RH.
- Strong Air Circulation System: Built-in fan and air duct, realizing 360° uniform temperature and humidity distribution to ensure consistent sample test results.
Applicable International & National Standards
Our Double 85 Test Chamber fully complies with international and domestic authoritative standards, ensuring accurate and recognized test results. It perfectly meets the requirements of Double 85 test IEC 61215 and Double 85 test IEC 60068-2-78, the most commonly searched Double 85 test standard by global users.
International Standards (Core)
- IEC 60068-2-78:2012 (Test Cab: Steady-State Damp Heat): Basic standard for electrical and electronic damp heat testing, defining 85℃/85%RH steady-state conditions.
- IEC 61215 / IEC 61646: Damp heat aging test for photovoltaic modules, requiring 1000h Double 85 test, the core standard for Double 85 test chamber for photovoltaic modules.
- JESD22-A101D: Steady-state temperature and humidity bias test for semiconductors, suitable for Double 85 test chamber for semiconductor.
- ISO 16750-4: Damp heat test for automotive electronic components, commonly using 1000h Double 85 test.
- ASTM D4332: Guide for material environmental stress testing, applicable to Double 85 accelerated aging.
Difference Between Double 85 Test Chamber & Ordinary Constant Temperature and Humidity Chamber
Many customers confuse the Double 85 Test Chamber with ordinary constant temperature and humidity chambers. The table below clarifies their core differences, answering the common question of Double 85 test chamber vs constant temperature humidity chamber.
| | Ordinary Constant Temperature and Humidity Chamber |
|---|
| Specialized: Long-term stable 85℃/85%RH, focusing on high-temperature and high-humidity accelerated aging | General: Wide temperature and humidity range, capable of various damp heat/high-low temperature tests |
Temperature & Humidity Range | Fixed: 85℃±0.5℃, 85%RH±2%RH | Wide range: -40℃~150℃, 20%~98%RH |
| High humidity stability: Lock 85%RH for a long time to prevent over-humidity/condensation | Full-range control: Take into account high-low temperature, high-low humidity, and alternating cycles |
| Single-stage refrigeration, enhanced humidification/humidity control, corrosion-resistant inner tank | Cascade refrigeration (low temperature), complete humidification/dehumidification, alternating control |
| Damp heat aging of photovoltaic, semiconductor, LED, PCB (1000h+) | Environmental adaptability, high-low temperature cycle testing of electronics, materials, and automobiles |
| Hundreds to thousands of hours (long-term steady state) | Tens to hundreds of hours (cycle/short-term) |
Common Specifications (By Inner Tank Volume)
Our Double 85 Test Chamber is divided by inner tank volume, covering various application scenarios. Mainstream models include popular Double 85 test chamber 100L and Double 85 test chamber 408L. Custom double 85 test chamber is available, and you can check Double 85 test chamber dimensions in the table below.
| | Inner Tank Size (W×D×H, mm) | |
|---|
| | | Small samples, components, material test pieces |
| | | Small PCB, sensors, small modules |
| | | Medium electronic components, small automotive parts |
| | | Small photovoltaic modules, medium equipment, LED modules |
| | | Standard photovoltaic modules, large PCB, automotive equipment |
| | | Large components, complete machine assemblies, batch testing |
| | | Large equipment, photovoltaic arrays, special tooling |
General Technical Parameters (Industry Standard Configuration)
- Temperature: 85℃ (fluctuation ±0.5℃, uniformity ±1℃)
- Humidity: 85%RH (fluctuation ±2%RH, uniformity ±3%RH)
- Heating rate: ≥3℃/min (no load)
- Cooling rate: ≥1℃/min (no load)
- Power supply: 380V/50Hz (three-phase)
- Material: Inner tank made of SUS304 stainless steel, corrosion-resistant
Application Industries
The Double 85 Test Chamber is widely used in various industries for damp heat aging testing, essential for quality control and R&D. It is a professional Double 85 damp heat test equipment, including Double 85 test chamber for PCB.
- Photovoltaic Industry (Core Application): Conduct 1000h damp heat aging test in line with IEC 61215, testing photovoltaic modules, solar cells, backsheets and encapsulation films.
- Electronics & Electrical Industry: Test semiconductors, PCB, connectors, lithium batteries, LEDs and sensors, assessing insulation, conductivity, corrosion and aging resistance.
- Materials & Industrial Products: Test plastics, coatings, adhesives, metals, seals and automotive interior/exterior parts, detecting yellowing, cracking, blistering and strength reduction.
- Other Industries: Applied in communication, military, aerospace and scientific research for damp heat reliability verification.
Customization Service: We provide customized solutions based on your test needs, including tank size, temperature and humidity range and special functions. Contact us for a free quote and technical consultation, and get the latest Double 85 test chamber price!
