Automatic Bursting Strength Tester ISO 2759 Compliant
The Top Test TT-6028 Automatic Bursting Strength Tester is an ISO 2759 compliant instrument for paperboard and corrugated board QC. It features a pneumatic clamping system with adjustable force exceeding 690 kPa and a silicone oil hydraulic drive that eliminates rust issues. With one-key automatic operation, auto-stop and home return, multi-unit display (kgf/cm², Lb/in², kPa), storage for 50 test sets, and a built-in printer, the TT-6028 delivers accurate, repeatable results. It also meets GB/T 1539 and QB/T 1057 standards. Ideal for corrugated box factories, paper mills, packaging labs, and testing centers. Customization for thin paper available. Air compressor required. Backed by Top Test's warranty and lifetime support.
Top Test Automatic Bursting Strength Tester for Paperboard & Corrugated Board
Keywords: bursting strength tester, paperboard testing equipment, corrugated board burst tester, ISO 2759 compliant, Top Test TT-6028, hydraulic bursting strength tester, pneumatic clamping tester, packaging QC equipment
Product Overview

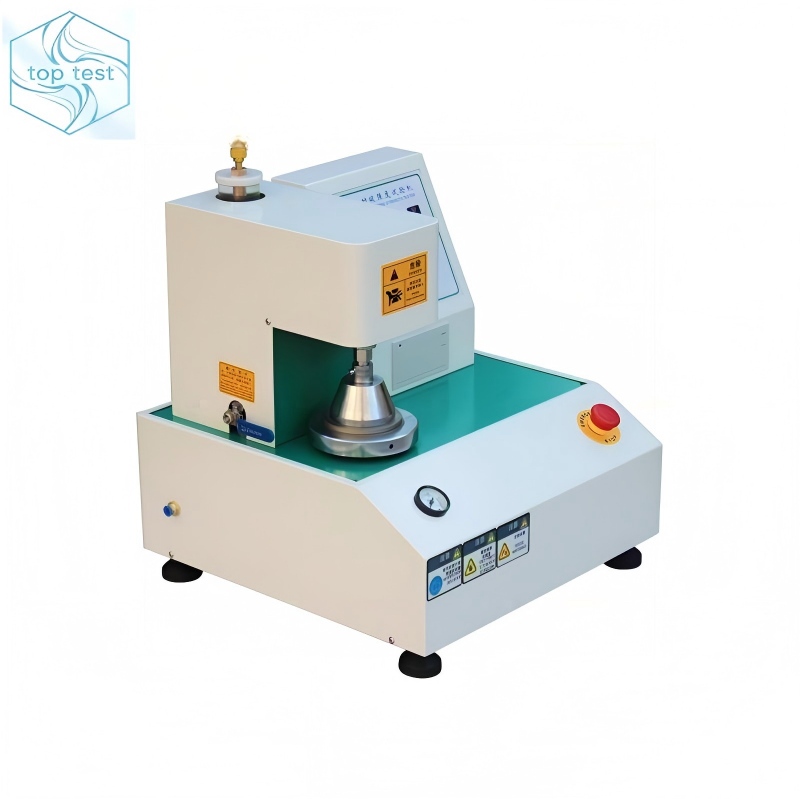

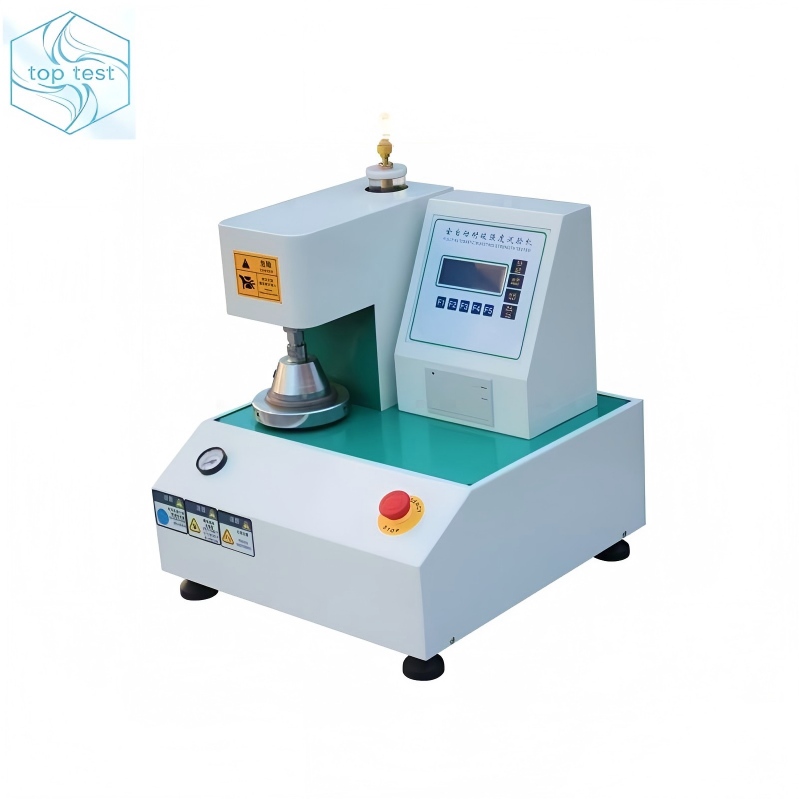

The Top Test TT-6028 Automatic Bursting Strength Tester is a high-precision, fully automatic instrument designed to measure the bursting strength of paperboard, corrugated board, and other sheet materials. Compliant with ISO 2759, GB/T 1539, and QB/T 1057, this tester is widely used in paper mills, corrugated box factories, packaging R&D laboratories, and third-party testing centers.With its pneumatic clamping system, silicone oil hydraulic drive, and one-key automatic operation, the TT-6028 delivers accurate, repeatable, and reliable test results – making it a trusted choice for packaging quality control testing equipment.
Key Features
Top Test Quality & Fully Automatic Operation
- One-key testing with auto-stop and automatic return after sample burst
- Reduces manual errors and improves testing efficiency
- Consistent with Top Test's commitment to reliable testing solutions
Pneumatic Clamping System
- Adjustable clamping force exceeding 690 kPa
- Ensures uniform, leak-free sample holding
- A core advantage of the Top Test TT-6028
Silicone Oil Hydraulic System
- Exclusive improvement by Top Test
- Eliminates rust issues associated with traditional glycerin-water mixtures
- Significantly extends machine service life
High Precision Measurement
- 1 kPa resolution with ±1% FS accuracy
- 100 times/sec A/D conversion for real-time data acquisition
- Delivers reliable test data that meets Top Test's quality standards
Multi-Unit Display & Data Management

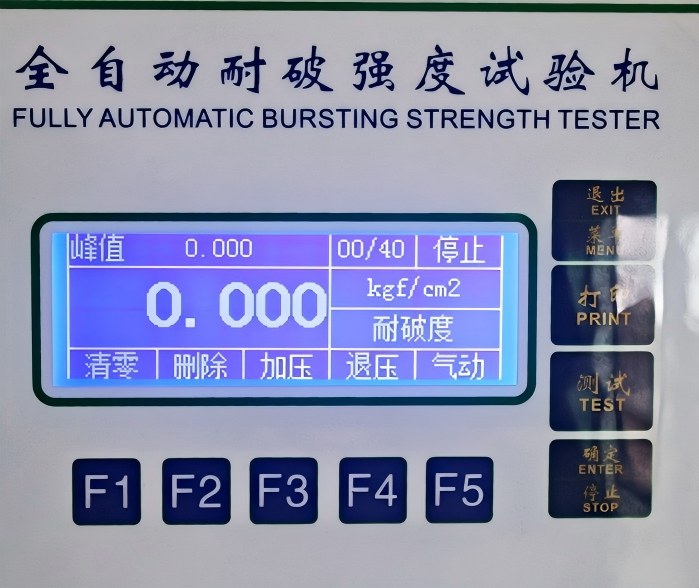

- LCD screen supports switching between kgf/cm², Lb/in², and kPa
- Stores up to 50 test sets with automatic average calculation
- Built-in printer for instant result output
Safety & Monitoring
- Emergency stop button for immediate power cut-off
- Built-in air pressure gauge to monitor clamping pressure
- Ensures safe, consistent testing – reflecting Top Test's focus on operational safety
International Standards Compliance
- ISO 2759 compliant
- GB/T 1539 compliant
- QB/T 1057 compliant
- Suitable for global markets and quality assurance systems
Technical Specifications
Parameter | Details |
|---|---|
Brand & Model | Top Test TT-6028 |
Sensing Method | Pressure transducer |
Measuring Range | 250 – 6000 kPa |
Resolution | 1 kPa |
Test Accuracy | Better than ±1% FS |
Test Repeatability | Better than ±1% |
Hydraulic Speed | 170 ± 10 ml/min |
Film Resistance (10mm bulge) | 170 – 220 kPa |
Film Resistance (18mm bulge) | 250 – 350 kPa |
Clamping Force | >690 kPa (adjustable) |
Clamping Ring Inner Diameter | 31.5 ± 0.05 mm |
Hydraulic Oil Type | Silicone oil |
Power Supply | 1φ, AC220V, 50/60Hz |
Dimensions (L × W × H) | 430 × 530 × 520 mm |
Net Weight | Approx. 70 kg |
Applications
Suitable Industries
- Corrugated box factories – incoming material and finished product testing
- Paper mills – quality control of paperboard and linerboard
- Packaging R&D laboratories – material development and validation
- Third-party testing laboratories – certification and compliance testing
- Printing and packaging companies – ensuring transport safety
Typical Test Materials
- Corrugated board (single-wall, double-wall)
- Paperboard (kraft board, chipboard, solid board)
- Linerboard and containerboard
- Other sheet materials (thin paper available via customization)
Why Bursting Strength Testing Matters
Bursting strength measures the maximum hydraulic pressure a sheet material can withstand before rupture. This parameter is critical for:
- Ensuring carton and box integrity during stacking and transportation
- Reducing product damage and customer returns
- Meeting international packaging standards and customer specifications
Notes Before Purchase
Maintenance Tips (Extend Service Life)
- Always use original Top Test silicone oil – avoid non-approved hydraulic fluids.
- Regularly check the air pressure gauge to ensure consistent clamping force.
- Replace the rubber diaphragm every 1,000 tests or when visual wear appears.
- Keep the hydraulic system clean and free from dust.
- Calibrate annually or as required by your quality system.
After-Sales Support
- 12-month warranty (excluding consumables)
- Lifetime technical support
- Remote troubleshooting and on-site service available
- Original spare parts supply
All Top Test products come with reliable after-sales support.
Frequently Asked Questions (FAQ)
Q:Is the Top Test TT-6028 compliant with international testing standards?
A: Yes. It fully meets ISO 2759, GB/T 1539, and QB/T 1057, making it suitable for global packaging QC testing requirements.
Q:What materials can the Top Test TT-6028 test?
A: It is mainly designed for paperboard and corrugated board. Customization for thin paper testing (e.g., tissue, printing paper) is available upon request.
Q :Does the TT-6028 require additional equipment for operation?
A: Yes, it requires an air compressor (not included) to power the pneumatic clamping system, which ensures stable and uniform sample holding.
Q:How do I maintain the TT-6028 to extend its service life?
A: Use the original Top Test silicone oil, regularly check the pressure gauge, replace rubber diaphragms as needed, and avoid non-original accessories.
Q:Can the TT-6028 store test data?
A: Yes. It stores up to 50 test sets, automatically calculates averages, and includes a built-in printer for result output.
Q:Is the clamping force adjustable?
A: Yes. The clamping force is adjustable and exceeds 690 kPa, accommodating different thicknesses of paperboard and corrugated board.
