ASTM5276 Zero Distance Drop Test Equipment
The zero-drop tester (also known as the zero-height drop tester) is a reliability testing device capable of precisely simulating vertical drop impacts starting from a height of zero. Its primary purpose is to evaluate the impact resistance and structural integrity of packaging, electronic products, large equipment, and similar items when subjected to drops during handling, loading/unloading, and transportation.
ASTM D5276 Zero Distance Drop Tester Heavy Duty Package Impact Test Machine
ASTM D5276 Zero Distance Drop Tester - 0-100kg heavy duty, free fall test equipment. Meets ISO 2248/ISTA standards, 0-1500mm drop range, ideal for lab & factory packaging validation.
Overview

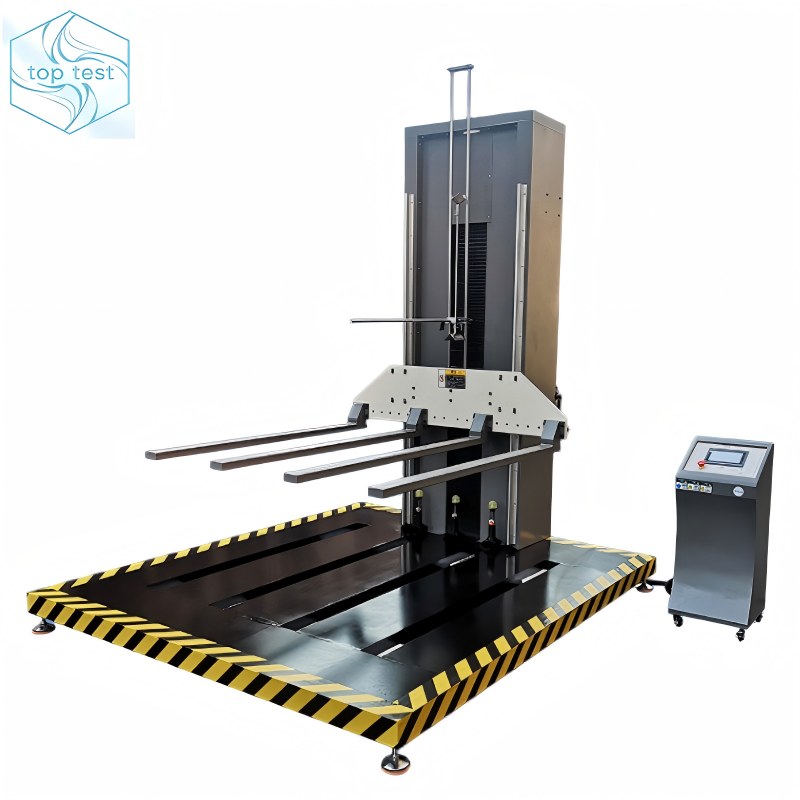

Our Zero Distance Drop Tester (also named Zero Height Drop Test Machine) is a professional, high-precision testing equipment simulating zero-height or low-height free fall impact—specifically designed to solve the pain points of testing heavy, palletized cargo and large packaging. Unlike traditional drop testers prone to sample rotation and offset, our machine adopts a high-speed withdrawal E-type bracket, which withdraws at an acceleration greater than gravity, ensuring the test piece undergoes pure vertical free fall without horizontal velocity, offset, or rotation. This design not only guarantees high-repeatability test results but also fully complies with international standards like ASTM D5276 and ISO 2248, making it the preferred choice for labs, and manufacturing factories that prioritize standardized, reliable packaging and product impact testing.
Standard
To ensure global market acceptance and compliance with international testing requirements, Top Test Zero Distance Drop Tester fully meets and exceeds the following core standards—with a focus on the high-demand ASTM D5276 standard:
- ASTM D5276 (Latest Version: ASTM D5276-19): The benchmark standard for free fall drop tests of loaded containers, specifying strict requirements for non-rotational release, rigid impact surfaces, and drop height accuracy—perfectly matched to our machine’s zero-distance drop mechanism.
- ISO 2248: International standard for vertical impact drop tests of complete, filled transport packages, aligned with ASTM D5276 for global logistics packaging certification.
- ISTA Series (1A/2A/3A): Ideal for e-commerce, retail, and bulk cargo scenarios, integrating drop test procedures for different load levels and perfectly adapting to palletized cargo testing.
- GB/T 4857.5: Chinese national standard equivalent to ISO 2248, supporting localized compliance for Asian markets and Chinese-speaking buyers.
Application
Top Test Zero Drop Tester for Palletized Cargo is widely used across industries that require low-height, high-consistency impact testing—covering both heavy-duty packaging and precision equipment, with a focus on solving real-world transportation and handling challenges. It perfectly fits the testing needs of various sectors, aligning with ASTM D5276 and ISTA standards for reliable results:
- Logistics & Packaging: Palletized cargo, large cartons, wooden cases, bulk containers, and flexible packaging bags—simulating forklift handling errors, conveyor belt sliding, and pallet dumping scenarios.
- Electronics & Home Appliances: Flat-screen TVs, refrigerators, washing machines, and their complete packaging sets, as well as smartphones and laptops, ensuring structural integrity during transit.
- Medical Devices: Precision medical instruments, analytical equipment, and high-precision sensor modules—requiring non-rotating, high-precision zero-height drop testing to avoid damage.
- Industrial Equipment: Servers, industrial control cabinets, heavy machinery, and large-scale instrument packaging—leveraging our 100kg (customizable) load capacity for reliable testing.
- Automotive Parts: Vehicle-mounted controllers, lighting systems, and battery components—validating impact resistance during transportation and assembly.
Technical Parameters（Customizable)
| |
|---|
| 0–100Kg (Customizable for higher loads) |
| |
| |
| |
| |
| Combined Electromagnetic + Pneumatic Control |
| |
| 45# Steel, Solid Steel Plate |
| 45# Steel, Welded Square Tube |
| Taiwan Imported Linear Sliders & Copper Bushings, 45# Chrome Steel |
| |
| |
| Up/Down Inductive Safety Protection Devices |
| |
| |
Features & Function
Core Features
- Zero-Height & Low-Height Impact Simulation: Supports drop tests from 0mm to 1500mm, perfectly solving the challenge of testing low-height, heavy palletized cargo—scenarios traditional drop testers cannot handle.
- Non-Rotating & High Repeatability: High-speed withdrawal support arm eliminates sample rotation and offset, ensuring test consistency with drop height error within ±2%—a key advantage for meeting ASTM D5276 standards.
- Heavy-Duty Load Capacity: Equipped with a rigid 45# steel support arm and solid steel impact plate, stable for 0–100kg loads (customizable for tonnage-level tests) to handle large, heavy packaging.
- High Precision Control: Our High Precision Zero Height Drop Test Machine features intuitive touch screen control for precise height adjustment, paired with a combined electromagnetic-pneumatic release system—consistent with the precision requirements of ASTM D5276—for reliable, consistent test results.
- Comprehensive Safety Protection: Up/down inductive sensors prevent overtravel, protecting equipment and operators, while the user-friendly design ensures efficient, hassle-free operation.
- Multi-Standard Compliance: Pre-built programs for ASTM D5276, ISO 2248, and ISTA standards reduce secondary development costs, making it easy for global customers to meet local certification requirements.
Functions
- Multi-Angle Testing: Supports face, edge, and corner drop tests to comprehensively evaluate packaging buffer performance and product structural strength.
- Precision Height Adjustment: Touch screen control + scale rod dual positioning enables accurate setting of test heights from 0 to 1500mm, ensuring compliance with international standards.
- Stable Transmission System: Taiwan imported linear sliders and copper bushings minimize friction, ensuring smooth, stable operation and a long service life.
- Customizable Configuration: Optional higher load capacity (above 100Kg), extended test height, and data recording functions to meet specific customer needs for bulk cargo and high-precision testing.
Why Choose Us?
Top Test Zero Distance Drop Tester stands out from competitors with its non-rotating release mechanism, multi-standard compliance (ASTM D5276, ISO 2248, ISTA), and heavy-duty performance—specifically designed to meet the needs of clients searching for ASTM D5276 compliant, low-height drop testing equipment for palletized cargo. We offer customizable configurations, reliable after-sales support, and high-quality construction (including Taiwan imported linear sliders) to ensure your testing processes are efficient, accurate, and compliant with global standards.
