ASTM Single Arm Package Drop Tester
Our Single Arm Drop Tester is a professional testing instrument designed to simulate free-fall impacts that packages and products may encounter during transportation, shipment, and handling processes. As a reliable single arm drop test machine, it is mainly used to assess the impact degree of product packaging in actual transportation and loading-unloading scenarios, evaluate the impact resistance and durability of packaged goods, and help enterprises optimize packaging design to reduce transportation damage. This single wing drop tester integrates advanced pneumatic control technology and precise height adjustment function, supporting both bare product and packaged product drop tests, which is widely recognized in the field of packaging testing and suitable for various industries’ quality control needs.

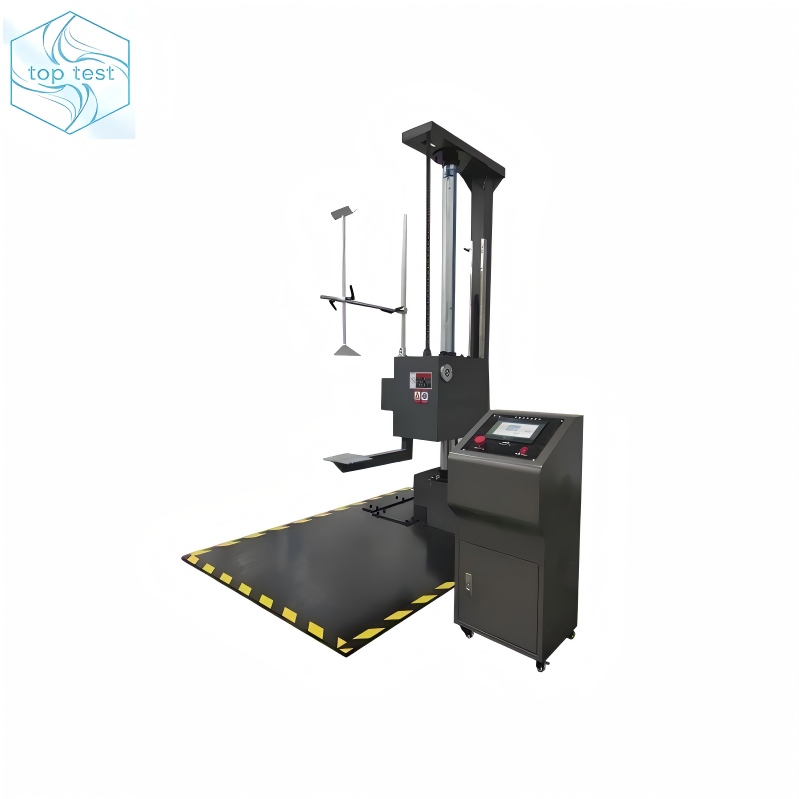

Single Arm Drop Tester Package Drop Test Machine
Overview
Our Single Arm Drop Tester is a professional and economical precision testing instrument designed to simulate free-fall impacts that packages and products may encounter during transportation, shipment, and handling processes. As a reliable single arm drop test machine, it is mainly used to assess the impact degree of product packaging in actual transportation and loading-unloading scenarios, evaluate the impact resistance and durability of packaged goods, and help enterprises optimize packaging design to reduce transportation damage. This single wing drop tester integrates advanced pneumatic control technology and precise height adjustment function, supporting both bare product and packaged product drop tests, which is widely recognized in the field of packaging testing and suitable for various industries’ quality control needs.
Standards Compliance
To ensure the accuracy and authority of test results, Top Test Single Arm Drop Tester strictly complies with international and industry testing standards, fully meeting the testing requirements of global customers. The equipment is compliant with ASTM D5276, ASTM D4169, ISO 2248, ISTA 1A, ISTA 3A, ISTA 6-Amazon, JIS Z 0202-87, and GB/T 4857.5-92 standards. These standards cover the core requirements of package drop testing, including test procedures, drop height accuracy, impact angle control, and result evaluation, ensuring that your test data is authoritative and comparable, and helping your products meet the market access requirements of various countries and regions.
Application
Top Test Single Arm Drop Tester is widely applicable to various industries that require packaging impact resistance testing, focusing on the packaging testing of light and medium-weight products, which is ideal for testing toys, electronics, electrical appliances, communication equipment, IT products, furniture, gifts, ceramics, cartons, and other packaged goods. Specifically, it can be used to test the impact resistance of electronic product packaging during long-distance transportation, the durability of toy packaging during handling, the damage resistance of carton packaging during loading and unloading, and the impact performance of ceramic product packaging during distribution. Whether it is a factory quality inspection department, a third-party testing laboratory, or an enterprise R&D center, this single arm package drop tester can provide stable and reliable testing support.
Features and Advantages
- Pneumatic Swing Arm Control: The swing arm system is controlled by air pressure, enabling fast and precise positioning, stable drop release, and effectively avoiding manual operation errors, ensuring the repeatability of test results. Compared with traditional manual drop equipment, it greatly improves testing efficiency and accuracy.
- Precise Drop Height Adjustment: Equipped with a digital height indicator and decoder for real-time height tracking, the drop height can be adjusted freely within the range of 30-160cm, with an error not exceeding ±10mm or 2%, which can accurately simulate different drop heights in actual transportation scenarios.
- Flexible and Efficient Operation: Adopting a single arm and compact structure, it occupies a small area, and the test piece can be loaded and unloaded quickly, which is suitable for batch testing of small and medium-sized packages. The control box is separated from the main machine, enabling safe operation and preventing operators from being injured by falling test pieces.
- Sturdy and Durable Structure: The base is made of solid iron plate, and the drop platform is made of rust-proof aluminum alloy material, which has high load-bearing capacity (maximum load 65Kg) and low drop noise, ensuring long-term stable operation of the equipment. The lead screw pole design ensures smooth vertical lifting and avoids swing during the drop process.
- Multiple Test Modes: Supports surface, edge, and corner drop tests of packages, which can comprehensively simulate the impact conditions that packages may encounter during transportation and handling, and fully evaluate the impact resistance of packaging from multiple angles.
Parameter Name | Specification |
|---|---|
Model | TT-DT-80 |
Maximum Load (Maximum weight of the specimen) | 0-80Kg |
Drop Height Range (Falling height) | 400mm-1500mm (adjustable) |
Drop Height Error (Falling height error) | ±10 mm (1%) |
Impact Panel Size | 1700×1200(mm) |
Bracket Arm Size | 160×250×10(mm) |
Test Modes (Test method) | Surface, angle, edge all-round drop |
Transmission Mode | Electric drive |
Power Supply | 1 phase AC 220V 50HZ |
Net Weight | About 300Kg |
Overall Dimension of Test Bench | ≈1700×1200×2315(mm) |
Dimension (W×L×H) | 1900x1200x2360 mm |
Thickness of the Bottom Plate | 10mm (solid iron plate) |
Parallel Error of Impact Panel | ≤ 1° |
Error Angle of the Falling Surface of the Specimen | ≤ 1° |
Maximum Specimen Size (Surface Drop) | 750×750×1000(mm) |
Why Choose Our Single Arm Drop Tester?
As a professional supplier of testing equipment, we focus on providing high-quality, cost-effective single arm drop test machines for global customers. Our equipment not only meets international testing standards but also integrates the core needs of industrial customers, with precise testing, easy operation, and durable performance. Compared with double arm drop testers, our single arm drop tester is more flexible and economical, suitable for light and medium-weight package testing, and can help you save testing costs while ensuring product quality. We provide perfect after-sales service and technical support, ensuring that your equipment can operate stably for a long time. Whether you are looking for a single arm pneumatic drop test machine, a package drop tester for transportation, or a carton drop testing equipment, we can meet your customized needs.
