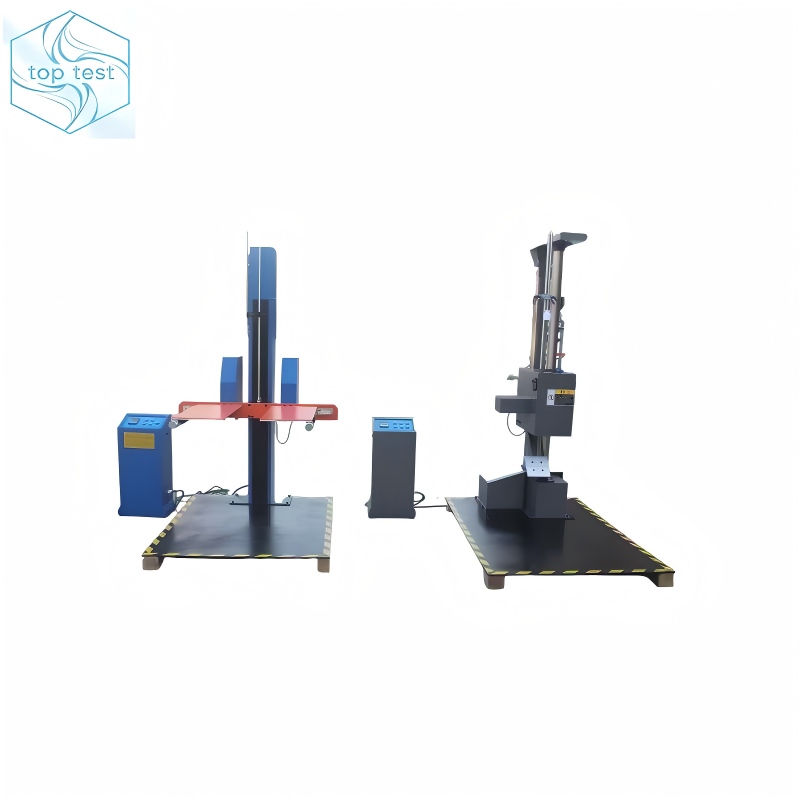

the double-arm drop tester
the double-arm drop tester

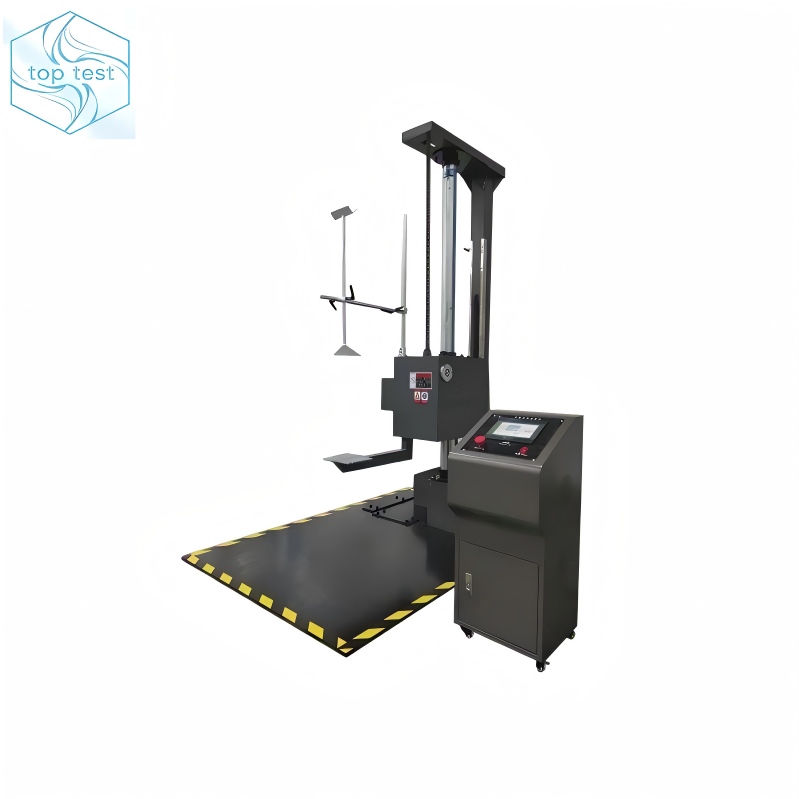

single wing drop tester for packages
Mechanical Testing EquipmentUnivesal Testing Machine

ASTM Double Arm Drop Tester | Free Fall Impact Test Machine for Packaging

ISO 2248-1972 double wing drop tester (also known as a dual-arm drop tester) is a piece of testing equipment used primarily to assess the durability of product packaging. It simulates the free-fall impacts that packages may experience during transportation and handling to evaluate whether the internal products can be adequately protected

Contact Us

Double Arm Drop Tester - High Precision Impact Resistance Testing Equipment

Overview

The Double Arm Drop Tester (Model: TT-DT-220B), also called Double Wing Drop Test Machine, simulates free fall impact of packages during transportation and handling. It evaluates packaging impact resistance, verifies design rationality, and ensures product safety in logistics. With a stable double-arm supporting structure, it is easy to operate and suitable for small to medium-sized packages, essential for quality control and laboratory testing.

Standards Compliance

Top Test Double Arm Drop Tester meets global testing standards, ensuring reliable and internationally recognized results:
  • ISO 2248-1972(E): Vertical Impact Test Method for Transport Packages
  • ASTM D5276: Free Fall Drop Test for Loaded Containers
  • JIS Z0202-87: Japanese Packaging Drop Test Standard
  • GB/T 4857.5-92: Chinese Transport Package Drop Test Standard
  • ISTA 1A/2A: International Safe Transit Association Standards

Application

The TT-DT-220B is widely used in industries requiring packaging impact testing, including:
  • Electronics: Mobile phones, laptops, power adapters and their packaging
  • Small Home Appliances: Rice cookers, hair dryers, coffee machines
  • Cosmetics & Daily Necessities: Gift boxes, bottled products, cartons
  • Toys & Gifts: Plastic/plush toys and gift packaging
  • Hardware & Auto Parts: Small toolboxes, automotive electronic components
  • Logistics & Food: Corrugated cartons, snack/beverage packaging
  • Scenarios: Factory inspection, laboratory testing, third-party certification, R&D

Features and Advantages

  • Flexible Testing: Supports surface, edge and corner free fall tests, simulating real drop scenarios.
  • Precise Height Control: LCD display + servo motor adjustment (300-1500mm), high accuracy.
  • Stable Design: Double-arm support for stable specimen placement, easy to load/unload.
  • Durable Performance: Rigid steel frame, pneumatic cylinder drop, oil pressure buffer, long service life.
  • Safe & User-Friendly: Independent electronic controller, simple operation, safety protection.
  • Cost-Effective: Suitable for SMEs, reliable quality with competitive price.
  • Wide Compatibility: Max 60KG load, fits test space 1200*1700*1500mm.

Technical Parameters(Customizable)

Product Specification
Details
Model
TT-DT-220B
Type
The double arm supporting the specimen
Test height
300-1500mm
Test space
1200*1700*1500mm (W*D*H)
Max. specimen weight
60 KG
Overall weight/size
400Kg; 1200*1500*2100mm
Base/Single Arm size
1200*1400mm; 300*750mm
Control/Dropping method
Electronic controller box; Pneumatic cylinder
Height display/adjustment
LCD reads; Servo motor precision guiding
Buffer type/Power
Oil pressure absorbability; AC220V 50Hz 1 Phase
Compliant Standards
ISTA-1A, ISO2248-1972(E), JIS Z0202-87, GB/T4857.5-92

Why Choose Our Double Arm Drop Tester?

We provide high-quality Top Test TT-DT-220B Double Arm Drop Testers meeting global standards, with strict quality inspection, customizable solutions, and 7×24 after-sales support. It is your ideal partner for packaging impact testing, helping meet international market requirements.

Frequently Asked Questions (FAQs)

  • Q: What tests can it perform?
  • A: Free fall tests (surface, edge, corner) to evaluate packaging impact resistance.
  • Q: Does it meet international standards?
  • A: Yes, it complies with ISTA-1A, ISO 2248, JIS Z0202 and GB/T4857.5.
  • Q: Max load capacity?
  • A: 60KG, suitable for small to medium-sized packages.
  • Q: How to adjust drop height?
  • A: Input height (300-1500mm) via controller, LCD display, servo motor adjustment.
  • Q: Abnormal noise during operation?
  • A: Stop and cut off power; check loose parts or lubrication, or contact after-sales.
  • Q: Is it easy to operate?
  • A: Yes, simple interface, electric functions, with operation manual and training.
  • Q: Daily maintenance?
  • A: Lower drop arm after test, lubricate sliding parts, tighten screws and cut off power when not in use.
  • Q: Customizable?
  • A: Yes, adjust drop height, test space and load per your needs.
